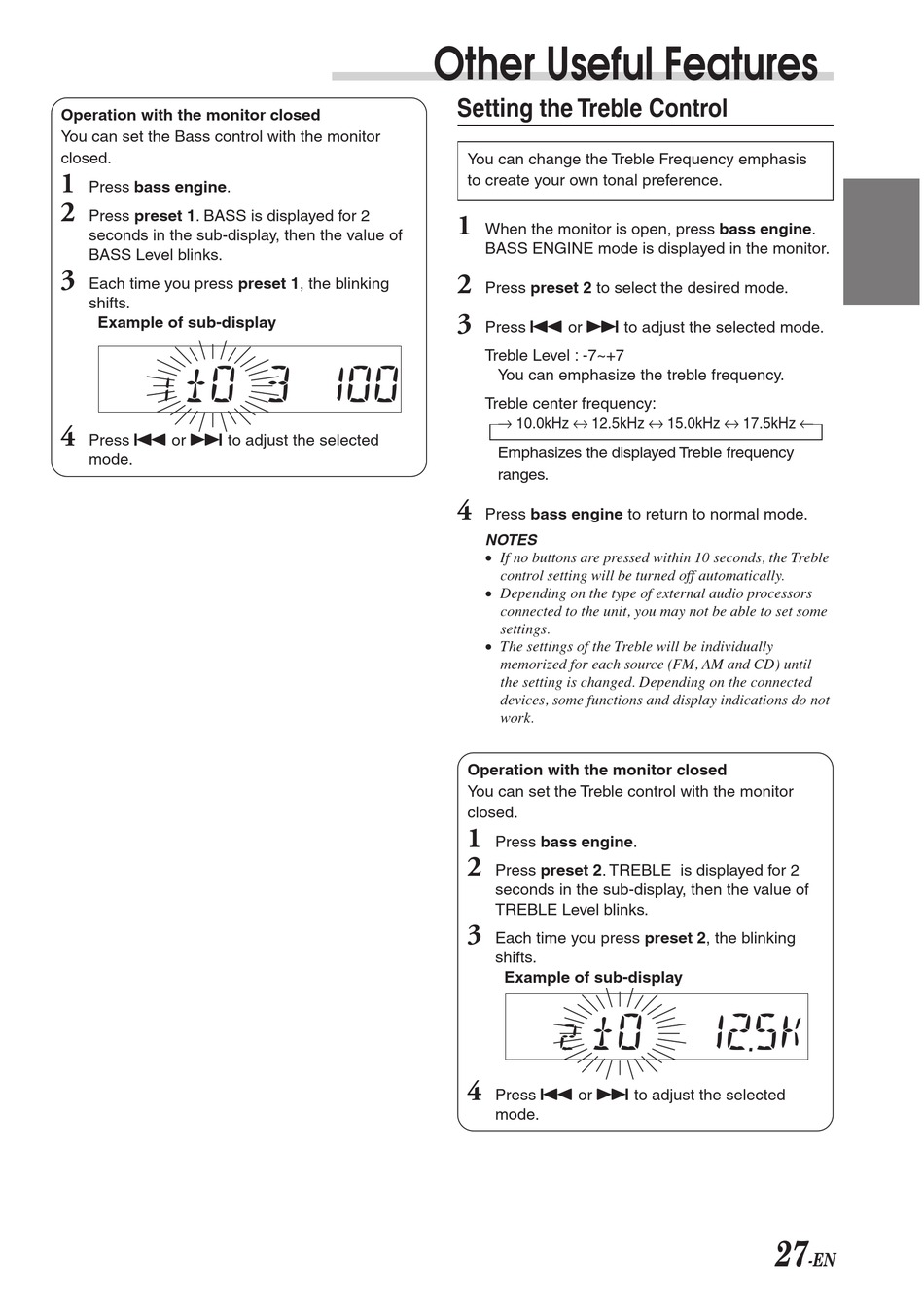

Setting The Treble Control - Alpine CVA-1004 Owner's Manual

Operation with the monitor closed
You can set the Bass control with the monitor
closed.
1
Press bass engine.
2
Press preset 1. BASS is displayed for 2
seconds in the sub-display, then the value of
BASS Level blinks.
3
Each time you press preset 1, the blinking
shifts.
Example of sub-display
4
Press g or f to adjust the selected
mode.
Other Useful Features

Setting the Treble Control

You can change the Treble Frequency emphasis
to create your own tonal preference.
1
When the monitor is open, press bass engine.
BASS ENGINE mode is displayed in the monitor.
2
Press preset 2 to select the desired mode.
3
Press g or f to adjust the selected mode.
Treble Level : -7~+7
You can emphasize the treble frequency.
Treble center frequency:
→ 10.0kHz ↔ 12.5kHz ↔ 15.0kHz ↔ 17.5kHz ←
Emphasizes the displayed Treble frequency
ranges.
4
Press bass engine to return to normal mode.
NOTES
• If no buttons are pressed within 10 seconds, the Treble
control setting will be turned off automatically.
• Depending on the type of external audio processors
connected to the unit, you may not be able to set some
settings.
• The settings of the Treble will be individually
memorized for each source (FM, AM and CD) until
the setting is changed. Depending on the connected
devices, some functions and display indications do not
work.
Operation with the monitor closed
You can set the Treble control with the monitor
closed.
1
Press bass engine.
2
Press preset 2. TREBLE is displayed for 2
seconds in the sub-display, then the value of
TREBLE Level blinks.
3
Each time you press preset 2, the blinking
shifts.
Example of sub-display
4
Press g or f to adjust the selected
mode.
27
-EN
