  • Page 1 ALPINE MULTIMEDIA SYSTEM...
  • Page 3 User precautions It is essential to follow the precautions below when using the system, both in the interest of safety and to prevent material damage. Always comply with the laws of the country in which you are travelling. Precautions when operating the system –...
  • Page 4 This manual covers all existing functions for the models described. Whether or not they are fitted depends on the equipment model, options selected and the country where they are sold. This manual may also contain information about functions to be introduced later in the model year. The screens shown in the user manual are for illustration only.

  • Page 5: Table Of Contents

    General description ............4 Vehicle ................... 90 Introduction to the controls ..........5 Reversing camera ............90 operating principles ............11 Alpine telemetrics ............91 Cleaning................. 14 Settings.................. 96 Switching on, off ............17 System settings ............. 96 Add, manage widgets ............ 18 Notifications ..............

  • Page 6: 4 - G E N E R A L I N F O R M A T I O N

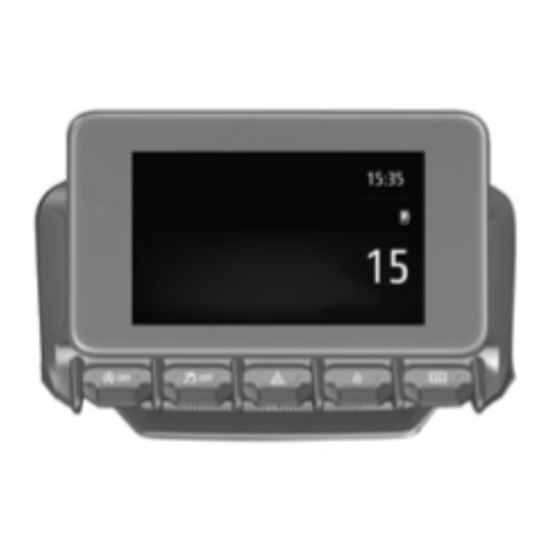

    GENERAL DESCRIPTION I. Main menu. Welcome screen For more information, open Note: depending on the equipment the user manual from the level, only available functions that can pop-up menu. be selected appear on the home screen. Menu screen A. Time. B.

  • Page 7: Introduction To The Controls

    INTRODUCTION TO THE CONTROLS Screen controls G e n e r a l i n f o r m a t i o n - 5...
  • Page 8 INTRODUCTION TO THE CONTROLS Functions 6 - G e n e r a l i n f o r m a t i o n...
  • Page 9 INTRODUCTION TO THE CONTROLS Function Multimedia screen. Press and hold (approximately five seconds): restart the system. Press briefly: Radio/Music OFF, minimum display, standby. Press briefly: choose the audio source. Answer/end a call (phone mode) Upon reception of a second incoming call: reject the call (telephone mode). Activate voice recognition.
  • Page 10 INTRODUCTION TO THE CONTROLS Steering column controls 8 - G e n e r a l i n f o r m a t i o n...
  • Page 11 INTRODUCTION TO THE CONTROLS Functions G e n e r a l i n f o r m a t i o n - 9...
  • Page 12 INTRODUCTION TO THE CONTROLS Function Multimedia screen. Press and hold (approximately five seconds): restart the system. Press briefly: Radio/Music OFF, minimum display, standby. Press briefly: choose the audio source. Answer/end a call (phone mode) Upon reception of a second incoming call: reject the call (telephone mode). Activate voice recognition.

  • Page 13: Operating Principles

    OPERATING PRINCIPLES Multimedia screen – Fast "swipe": slide your finger Gesture interaction quickly from left to right to change from – Briefly press: touch a part of the home page A to home page B . screen with your finger then –...
  • Page 14 OPERATING PRINCIPLES Introduction to the home pages Introduction to the main menu These widgets grant you direct access to the main screen for the function or, Your system has several customisable To access the home page, press and in certain cases, enable you to directly home pages 1 .
  • Page 15 OPERATING PRINCIPLES Scroll bar Functions unavailable – "Applications": manage your photos, videos and applications such as Alpine Telemetrics; – "Vehicle Info": covers information related to the multimedia system; – "Settings": manage some vehicle equipment such as the reversing camera and adjust various settings on the multimedia system, such as the display, language, etc.;...

  • Page 16: Cleaning

    CLEANING Dry clean Depending on the screen type, Cleaning recommendations observe the following cleaning recommendations: In all cases use a clean, lint-free, soft A. : do not use alcohol-based fluids, micro-fibre cloth to clean the do not apply or spray fluids; touchscreen.
  • Page 17 CLEANING A. : do not use fluid, alcohol-based Do not pour or spray the fluids and/or apply or spray fluids; cleaning product on the B. : do not clean with soapy water screen. using a slightly moistened micro-fibre cloth; Do not use chemical cleaning agents or household C.
  • Page 18 CLEANING Finish by wiping gently using a dry microfiber cloth. Do not use products containing alcohol and/or spray fluids on the area. Do not pour or spray the cleaning product on the screen. Do not use chemical cleaning agents or household products.

  • Page 19: Switching On, Off

    SWITCHING ON, OFF Switching off Time/date screen Switching on The multimedia system can be This screen is displayed when you The multimedia system starts: switched off: select the "Stand-by" function. – when the vehicle is started; – by pressing briefly on the control 1 –...

  • Page 20: Add, Manage Widgets

    ADD, MANAGE WIDGETS In zone B , select the widget that you Customising the home pages Widget configuration is wish to display. The selected widget changes colour to confirm the action. linked to the profile. If the profile changes, the Drag the widget from zone B and drop it at the position desired on the home widgets display changes too.
  • Page 21 ADD, MANAGE WIDGETS Widget size Note: the data related to these two widgets is stored in the multimedia You can adjust the widget's size by system even if your telephone is not pinching/spreading one of the widget's connected to the multimedia edges.
  • Page 22 ADD, MANAGE WIDGETS – restore the home page default configuration. Save and exit To save your home screen settings and exit, press the back button 5 . For safety reasons, carry out these operations when the vehicle is stationary. 2 0 - G e n e r a l i n f o r m a t i o n...

  • Page 23: Using Voice Recognition

    USING VOICE RECOGNITION Voice controls Activation Introduction Depending on the equipment, press Your multimedia system is equipped the voice recognition button with a voice recognition system your vehicle. which can be used to control some of Note: when using voice recognition, the multimedia system functions and always wait for an audible confirmation some of your telephone functions by...
  • Page 24 USING VOICE RECOGNITION Say "Quit" to exit the voice recognition – half-blue marker: good voice menu. The functions shown in recognition; – completely blue marker: optimum blue on the screen are valid Say "Help" to hear the details for each voice recognition;...
  • Page 25 USING VOICE RECOGNITION Controlling navigation with To retrieve your home address using the voice command. voice recognition Press the voice command button to display the voice command main menu. After the sound signal, say "Go home". The system will indicate your pre- recorded home address.
  • Page 26 USING VOICE RECOGNITION « Favourites » The navigation system suggests For further information about using several POI (points of interest) in points of interest, please refer to the To retrieve an address saved in different categories. section on "Entering a destination". favourites using the voice command. Destination in a foreign country Using favourites with voice Press the voice command button...
  • Page 27 USING VOICE RECOGNITION – "X station", with X as the radio Press the voice command button Press the voice command button station name; to display the voice command main to display the voice command main menu. menu. – "Station" followed by the desired After the sound signal, say one of the After the sound signal, say "Play"...
  • Page 28 USING VOICE RECOGNITION « Help » The system displays the number appears from the "Paired devices list" indicated, say "Dial" to call the number menu. For more information on using the or "Correct/"Back" to dictate another For more information, please refer to voice functions, press the voice number.
  • Page 29 USING VOICE RECOGNITION – "Call the office"; voice recognition button of your recognition button or on the – ... vehicle. screen A . To use the navigation function, you can command directly: From the main voice control menu, you can use voice control for some of your –...

  • Page 30: Navigation

    – press the "±" button to display the zoom in and zoom out buttons; – press the "Views" button to display the 2D/2DNorth, 3D/3D Inception, Displaying the map "Traffic" view. From the home screen, press "Menu" E. Location and the name of the street then "Navigation"...
  • Page 31 "Route calculation" screen N. When a route is in progress, this "Map" screen without a journey in "Traffic" screen function can be used to return to the progress V. View of traffic events on the map or route in progress after moving around Use the N function to return to your by a list of events.
  • Page 32 – « Allow car train » ; – « Automatic guidance proposal » ; – « Destinations shared with other devices » ; – « Allow time-restricted roads » ; – "Allow toll roads"; – « Avoidance areas » ; –...
  • Page 33 Display mode "Route detail" 3D view This function is used to view the The map displays your current position You can select between several details of the current route. on a 3D map surface. It automatically display modes by pressing the View/ faces the direction of travel.
  • Page 34 The multimedia system will inform you, using the navigation voice, that you will soon have to carry out a manoeuvre. Stage 2: alert The multimedia system announces the manoeuvre that you need to carry out. e.g. "In 400 metres, take the next exit". The screen displays a detailed representation or 3D image of the manoeuvre.
  • Page 35 « Weather » Press the weather icon 5 to view a weather forecast over the next few (availability depends on the country of hours. sale) This information can also be accessed From the pop-up menu, you can from the "Weather" widget. activate or deactivate the weather display on the map.

  • Page 36: Enter A Destination

    ENTER A DESTINATION "Navigation" menu From the home screen, press the card of press "Menu" then "Navigation". Using voice recognition to enter an address Press the voice recognition button , then following the sound signal you will be able to dictate a destination town, number and/or street name and/ or area.
  • Page 37 ENTER A DESTINATION Online Search When searching for a POI (point of interest) via the "Navigation" menu, you can display a list of suggestions 5 . For more information on POI, see the information on "Points of interest" in this section. The map display 4 shows the geographical position for each suggestion.
  • Page 38 ENTER A DESTINATION From the "Route" tab 12 you can – save the selected address to your favourites; access the history of stored routes. – enter the destination co-ordinates Select a route to start guidance. (latitude and longitude values); Use the magnifying glass 10 to search –...
  • Page 39 ENTER A DESTINATION « Favourite destinations » From the "Add new address" tab 14 , From the "Route" tab 22 , you can: you can: From the "Address" tab 16 , you can: – « Add new route » ; – "Name" 19 to name your new –...
  • Page 40 ENTER A DESTINATION – « Points of interest » ; Points of interest are grouped by – "Reset" the search; – « Coordinates » ; category: "Petrol station", "Parking", – choose the keyboard type: – « On map ». "Residence", etc. –...
  • Page 41 ENTER A DESTINATION From the list 24 , select a POI. Fuel prices « Coordinates » Depending on the equipment, the (depending on equipment) multimedia system can be used to: From the "Navigation" menu, press The POI "Petrol station" shows the "Coordinates". –...
  • Page 42 ENTER A DESTINATION – "Units and formats": decimal "Navigation", "Menu", then press on degrees; decimal degrees and "Route" to access the route menus. minutes; or degrees, minutes and No route in progress: decimal seconds; – « Create route » ; –...
  • Page 43 ENTER A DESTINATION Press the "Draw" button 31 to From the pop-up menu 35 on the « Overview » designate an area to avoid. "Avoidance areas" menu, press: Use this function to view all of your Press briefly on the map to display the –...
  • Page 44 ENTER A DESTINATION From the pop-up menu 36 , you can – « Steps ». access the following functions: From the "Summary" tab 41 , you can – « Settings » ; view your: – « Route details » ; –...
  • Page 45 ENTER A DESTINATION « Route simulation » Use this function to simulate the route From the "Steps" tab 50 you can see From the pop-up menu 55 , you can: you will be taking to reach the the different stages of your trip destination.

  • Page 46: Traffic

    TRAFFIC Precautions regarding navigation Use of the navigation system does not in any way replace the responsibility or vigilance of the driver when driving the vehicle. "Traffic Map" screen You can view the traffic incident display on the map 1 or on the list of traffic incidents 2 .
  • Page 47 TRAFFIC Traffic incident details Traffic information bar Press on one of the items in the The Traffic Information bar on your incident list to view the details and to route display 13 informs you of traffic display the relevant section of the incidents along the route in progress.

  • Page 48: Navigation Settings

    NAVIGATION SETTINGS – « Type of Route » ; "Allow ferries" – « Enable alternative route » ; Enable/disable the use of ferries on – « Use traffic detour » ; the route by pressing "ON" or "OFF". – « Allow toll roads » ; « Allow car train »...
  • Page 49 NAVIGATION SETTINGS You will have the choice between: Using this setting, you can choose to display the " Arrival time " or to – « Go » ; display the " Time to destination". – "Save in favourites"; – « Ignore ». « Traffic display »...
  • Page 50 NAVIGATION SETTINGS – "Restaurant"; – "Residence/Housing"; – "Travel& Travel"; – "Shopping"; – "Hospital"; – ... From the map, you can select the POI directly. The multimedia system will suggest several options: – « Go » ; – « Call ». For more information, please see the information on "Points of interest"...

  • Page 51: Audio/Multimedia

    LISTEN TO THE RADIO 1. Logo of the radio station now "Frequency" mode "Radio" menu playing. 2. The name of the current station and From the main menu, press "Radio". If the frequency. Text information (artist, a radio station is already playing, you song etc.).
  • Page 52 LISTEN TO THE RADIO Select a radio band Store a radio station as a preset you stopped is played. You can also select a radio station from the list to listen to it directly. If radio stations do not use RDS or if the vehicle is in an area with poor radio reception, the name and logo will not appear on the screen.
  • Page 53 LISTEN TO THE RADIO "Presets" mode Pop-up menu 6 – « HD radio"; – ... « AM » You can enable/disable the waveband display AM in the audio sources menu list 10 by pressing "ON" or "OFF". « Radio text » (text information) Some FM radio stations broadcast text information relating to their...
  • Page 54 LISTEN TO THE RADIO – stations in the same area sometimes If the "FM/DAB simulcast" is activated, From the settings, you can activate or broadcast different programmes or use it will take a few seconds for the deactivate the following elements: different radio station names;...

  • Page 55: Music

    MUSIC "Play" mode 9. Press briefly: play the next audio "Music" menu track. Press and hold: fast forward. From the main menu, press "Music" or from the other menus press the 10. Currently playing audio track shortcut in zone A . progress bar.
  • Page 56 MUSIC "List" mode From the "Search" menu you can access the playlists classified by Any new USB flash drive category ("Playlists", "Artists", inserted is analysed and its "Albums", "Podcasts", etc.). image is stored in the Note: only available sources can be multimedia system.

  • Page 57: Photo

    PHOTO "Playback" "Photo" menu From the main menu, press "Applications" then the "Photo" tab. Select a connected input source. If several sources are connected, select one of the input sources from the following list to access the photos: – "USB1" (USB port); –...
  • Page 58 PHOTO "Pop-up menu" From this menu, you can change the profile image. Confirm by pressing "OK" to save your changes. « Settings » From this menu, you can access the slideshow settings: – change the display time for each photo in the slideshow; –...

  • Page 59: Video

    VIDEO « Video » Note: "Video" menu – some functions are only available in full screen mode; From the main menu, press – the play controls disappear "Applications" then the "Video" menu. automatically after 10 seconds when Select a connected input source. playing a video in full screen mode.
  • Page 60 VIDEO Note: for more information on compatible video formats, please consult an approved dealer. « Settings » From the "Settings" menu, you can choose the display type: – "Normal" (adjusted); – "Full screen". Any new USB flash drive inserted is analysed and its image is stored in the multimedia system.

  • Page 61: Phone

    PAIR AND CONNECT A PHONE 11. Access the "WIFI" menu Pairing, unpairing a telephone (availability depends on the equipment). "Phone" menu 12. Access the "Bluetooth®" menu. From the home screen, press "Phone" 13. Return to previous screen. or (if a phone is already connected) Note: the availability of the hotspot press the shortcut A if the "Phone"...
  • Page 62 PAIR AND CONNECT A PHONE For more information about activating the visible status of your phone, please refer to your telephone user manual. Depending on the model, and if the system requests it, enter the Bluetooth® code on your telephone to pair it to the multimedia system, or confirm the pairing request.
  • Page 63 PAIR AND CONNECT A PHONE Note: if the function icon is highlighted, unpairing a telephone". Your phone this indicates that it is activated. For safety reasons, carry must be connected to the hands-free phone system in order to use all its out these operations Your phone is now paired to the functions.
  • Page 64 PAIR AND CONNECT A PHONE Connect the functions – the availability of the hotspot 3 For more information on the function depends on the vehicle equipment and it can only be activated list of compatible for compatible models; telephones, contact an –...
  • Page 65 PAIR AND CONNECT A PHONE When a second "Phone" function 1 is activated, the multimedia system asks For safety reasons, carry if you wish to add a second phone. out these operations By adding a second phone, you will when the vehicle is have the option of accessing all of the stationary.

  • Page 66: Call Management

    CALL MANAGEMENT – the buttons on the digital keypad 2. Put current call on hold. Phone call from the "Dial" menu 9 . 3. Access the keypad to dial a number. Receiving a call "Phone" menu 4. Pop-up menu. From the main menu, press "Phone". 5.
  • Page 67 CALL MANAGEMENT During a call To take a call, press the "Answer" button 16 . To end the call, press the "End call" button 12 . "Reject" a call To reject a call, press and hold the "Reject" button 12 . The person calling you will be redirected to your voicemail.
  • Page 68 CALL MANAGEMENT From the pop-up menu 4 , press the 1. Search for a contact by name or Note: as soon as you answer the second incoming call, the first call will "Join calls" button to activate the number. be put on hold automatically. conference call.
  • Page 69 CALL MANAGEMENT phonebook via Bluetooth®. Press the you can select which contact list is pop-up menu 4 , then "Update list". displayed. Select the phone from the bar 3 . Searching contacts Confidentiality The list of contacts for each telephone is not stored in the memory by the hands-free telephone system.
  • Page 70 CALL MANAGEMENT Updating the call log – "Call" then dictate the telephone number that you wish to call. Press 4 and select "Update list". A – or "Call" followed by the name of the message will notify you that the data contact that you wish to call.

  • Page 71: Sms

    Receiving SMS "SMS" menu From the main menu, press "Telephone" or press the shortcut A from most menus, then "SMS" to access the SMS on your phone via the multimedia system. Your telephone must be connected to the hands-free phone system. You must also authorise the transfer of messages (using your phone settings, depending on the model) in order to...
  • Page 72 Reading SMS SMS details Note: during driving, the multimedia You can call the contact directly by system suggests that you send a During driving, the SMS can be read pressing the "Call" button 11 if the preset message 15 . by the multimedia system's synthetic number is saved in the memory or in voice by pressing "Play"...

  • Page 73: Phone Settings

    PHONE SETTINGS "Settings" menu With the telephone connected to the system, from the main menu press "Phone" or press the shortcut A from most menus. From the pop-up menu, select "Settings" to access the following settings: – « Voice mail settings » ; –...
  • Page 74 PHONE SETTINGS Use this option to access a tutorial on how to use your telephone's voice recognition system via the multimedia system. Depending on the make and model of your phone, certain functions may not work. 7 2 - P h o n e...

  • Page 75: Apps

    ANDROID AUTO™, CARPLAY™ Accept the requests on your – the "CarPlay™" service only works if IntroductionAndroid Auto™ smartphone in order to use the the SIRI service is activated and if your application. smartphone is connected to your "Android Auto™" is an application that vehicle's USB port or wirelessly using enables you to replicate your Bluetooth®...
  • Page 76 ANDROID AUTO™, CARPLAY™ Voice recognition These applications will replace similar applications integrated into your multimedia system which are already running. Only one navigation can be used, that – « Android Auto™ » ; – « CarPlay™ » ; – or that integrated in your multimedia system.
  • Page 77 ANDROID AUTO™, CARPLAY™ Return to the multimedia When you use the "Android interface Auto™" apps or the "CarPlay™" service, the transfer of mobile data required for their operation may lead to additional costs not included in your telephone subscription. The availability of the To return to the interface of your functions of the "Android multimedia system, press the button 3...

  • Page 78: App Management

    APP MANAGEMENT Pop-up menu "Applications" menu From the main menu, press "Applications" or "Apps" to access the following: – the apps installed on your navigation system; – « Photo » ; – « Video ». Note: some services will be available free of charge for a trial period.
  • Page 79 APP MANAGEMENT Select one of the apps 2 . From the From the "Memory" tab 7 , you can From the "Legal notice" tab 8 , you can "About" tab 5 , you can access access the following information: access information on permissions, if information on the app (version, available.

  • Page 80: Activating Services

    ACTIVATING SERVICES Data collection Activating services For your vehicle's connected services to work (real-time traffic information, search for POI online, control the vehicle remotely using your smartphone etc.), they must first be activated. Activating the services also enables automatic updating of the system and maps.
  • Page 81 ACTIVATING SERVICES Temporary suspension of data relating to the automatic emergency call in the event of an accident. collection The manufacturer takes all the necessary precautions to ensure that your personal data is processed in total security. Data protection Data from your vehicle is processed by the manufacturer, approved distributors and other entities in the Once your service activation request...
  • Page 82 ACTIVATING SERVICES Protection of your personal data The manufacturer takes all Regardless of whether or not you the necessary precautions decide to suspend sharing, the vehicle usage data will be forwarded to the to ensure that your manufacturer and the partners/ personal data is processed in subsidiaries concerned for the total security.

  • Page 83: Expiry Of The Services

    EXPIRY OF THE SERVICES The services are activated for a limited period. Once this has elapsed, the services cease to work. To reactivate the services, refer to the paragraph entitled "Purchasing and renewing services". The manufacturer takes all the necessary precautions to ensure that your personal data is processed in total security.

  • Page 84: Updating The System And Maps

    UPDATING THE SYSTEM AND MAPS "System information" screen "Car info" menu From the "Car info" menu, select the "System" tab. Use this menu to display various items of information and to update the multimedia system and navigation maps. The updates are proposed automatically by the system.
  • Page 85 UPDATING THE SYSTEM AND MAPS – check if an update is available; – update the various systems from the Do not park the vehicle multimedia system. or run the engine in Note: locations where combustible substances – you will be notified via Notifications if an update is available.
  • Page 86 UPDATING THE SYSTEM AND MAPS activated. Please see the section on Updating the navigation maps The Alliance CONNECT Toolbox "Activating services"; manually software shows the types of update that are available: Changing the favourite country It is necessary to update the maps regularly.
  • Page 87 UPDATING THE SYSTEM AND MAPS port. The multimedia system detects new apps and offers to install them. The maps and speed limits Any new USB flash drive Follow the instructions shown on the are updated inserted is analysed and its multimedia system screen.
  • Page 88 UPDATING THE SYSTEM AND MAPS USB flash drive from your computer, ejecting it before removing it, then go Do not park the vehicle to your vehicle. or run the engine in From your vehicle, insert the USB locations where flash drive into your vehicle's USB combustible substances port.

  • Page 89: My Alpine

    Note: you can use the same Note: – the availability of some functions username and password to log in to – the "My Alpine" app is under depends on the vehicle equipment, your web user account. constant development. Connect subscription to service contracts and regularly to enhance your account with the legislation in the country;...
  • Page 90 MY ALPINE multimedia system must be switched – if your "My Alpine" app is not synchronised with your vehicle, you will not be able to access your service contracts. From the "My Alpine" app: – log in to your account;...

  • Page 91: Vehicle Loaning And Relinquishing

    Vehicle relinquishing from your "My Alpine" account. Deleting personal data To do this, connect to your "My Alpine" When selling your vehicle, it is account and delete the vehicle. essential to delete all personal information stored within the vehicle or outside it.

  • Page 92: Vehicle

    REVERSING CAMERA "Rear-view camera" menu From the main menu, press "Settings" then the "Vehicle" tab and select "Parking assistance". Use this menu to configure the reversing camera. For further information on the reversing camera, please see your vehicle user manual. Note: –...

  • Page 93: Alpine Telemetrics

    The driver must always pay attention to the rules of the road. Alpine Telemetrics can be used to view the following functions: – " Pressure gauges " 1 & 2 To access the app Alpine Telemetrics (customisable);...
  • Page 94 ALPINE TELEMETRICS "Pressure gauges" 5 You can choose to display the Shows the pressure (in bars) of the oil following settings: contained in the engine. The pressure must always be over 0.7 bar. – "Torque"; – "Power"; "Brake pressure" (bar) –...
  • Page 95 ALPINE TELEMETRICS Indicates the temperature (in degrees – "Torque"; "Brake pressure" (bar) Celsius or Fahrenheit) of the clutch – "Power"; Shows the pressure (in bar) in the system. – "Turbo pressure"; braking circuit. The higher the – "Oil temperature"; "Engine speed" (RPM) pressure, the more powerful the –...
  • Page 96 ALPINE TELEMETRICS The 9 screen enables you to see the Indicates the temperature (in degrees – 0-62 mph (0-100 km/h); Celsius or Fahrenheit) of the clutch – 0-400 metres; history of values saved by the system. – 62-0 mph (100-0 km/h);...
  • Page 97 ALPINE TELEMETRICS "Dual clutch gearbox" "Stopwatch" Note: when you press the "Start" button 22 , the "Stop" button replaces the "Start" function. Pressing the "Stop" button once stops the stopwatch (the times are still displayed). Pressing button "Reset" clears all the information and resets the general stopwatch.

  • Page 98: Settings

    SYSTEM SETTINGS "System" menu From the home screen, press "Settings" then the "System". This menu enables you to adjust the following settings: – « Displays » ; – « Sound » ; – « Language » ; – « Keyboard » ; –...
  • Page 99 SYSTEM SETTINGS The vehicle has three equipment levels: – Standard ; – Focal ; – Focal Premium. « Ambiance » « Balance » Available with the Focal or Focal This function sets the sound Premium equipment level. distribution balance. Press "Centred" or "Manual" to optimise the sound You can set one of the following distribution for all the vehicle predefined music equalisers:...
  • Page 100 SYSTEM SETTINGS – adjust the volume of the telephone ringtone; – adjust the volume of the telephone call. From the "Other" tab 8 , you can adjust the following settings: – activate/deactivate the interior welcome sound effects; – activate/deactivate the button sound effects;...
  • Page 101 SYSTEM SETTINGS «  Keyboard » « Date and time » « Devices manager » Use this menu to choose one of the You can use this menu to adjust: Use this menu to configure different following virtual keypads: connections to your multimedia – the display mode; system: – « Alphabetic » ; –...
  • Page 102 SYSTEM SETTINGS From the "WIFI" tab 11 , you can use Select one of the WIFIdevices to From the pop-up menu 16 , you can: the internet connection provided by an configure its connection. – configure different connections for external device (hotspot) in a shop, A password will be required the first each authorised device;...
  • Page 103 SYSTEM SETTINGS From the "Services" tab 18 , you can For more information, please refer to Depending on the country where the configure the "Devices manager" 17 "Connecting, disconnecting a vehicle is sold, once the "Android and access the "Smartphone telephone".
  • Page 104 SYSTEM SETTINGS Reception level and data sharing status are indicated by the icon 22 : – data sharing on 23 ; – data sharing off. Reception level 24 ; – vehicle offline or outside of the coverage area 25 . For safety reasons, carry out these operations when the vehicle is...
  • Page 105 SYSTEM SETTINGS The home pages can be modified by – system language; adding the widgets of your choice and – set the distance unit (when positioning them as you wish on the available); home pages. For more information on – configure the home page; configuring the home page, see the –...
  • Page 106 SYSTEM SETTINGS For safety reasons, carry out these operations when the vehicle is stationary. 1 0 4 - S e t t i n g s...

  • Page 107: Notifications

    NOTIFICATIONS Suggestions & Notifications Use this menu to display suggestions and notifications during driving. Each notification informs you of events based on the following categories: – « Suggestions & notifications » ; – « Navigation » ; – "Multimedia"; – « Phone » ; –...
  • Page 108 NOTIFICATIONS Select one of the suggestions 2 to access the details: – simplified description 5 ; – image 6 related to the suggestion: e.g. traffic, system, vehicle, telephone; – recommended action 8 to be taken accordingly. From the pop-up menu 7 , you can delete the suggestion.

  • Page 109: Operating Faults

    OPERATING FAULTS System System Description Causes Solutions No image is displayed. The screen is on standby. Ensure that the screen is not on standby. No sound can be heard. The volume is set to Increase the volume or deactivate pause. minimum or pause.
  • Page 110 OPERATING FAULTS Navigation Navigation Description Causes Solutions The vehicle position on the screen does not match Incorrect positioning of the Move the vehicle until reception of the its actual location or the GPS warning light on the vehicle caused by GPS GPS signal is improved.
  • Page 111 OPERATING FAULTS Phone Phone Description Causes Solutions No sounds or ringtone can be heard. The mobile phone is not connected to Ensure that the mobile phone is the system. connected to the system. Increase the volume or deactivate pause. The volume is set to minimum or pause. Impossible to make a call.
  • Page 112 OPERATING FAULTS Voice recognition Voice recognition Description Causes Solutions The system does not recognise the The voice command has not been Check that the voice command function voice command stated. recognised. is available (refer to the "Use voice control" section). Speak within the voice The voice recognition time delay has recognition time delay.
  • Page 113 ALPHABETICAL INDEX A B C D E F G L M N O P R S T U V W Connected services, Connecting a telephone, Add and manage widgets, Controls, Adjust the sound volume, Customising the settings, Alphabetical keypad, Alphabetic keypad: keypad integrated into the multimedia system, Alternative route: navigation settings, Destination menu, Alternative route: route settings,...
  • Page 114 ALPHABETICAL INDEX Main menu, Operating faults, 1 07 Map: display, Operation, Map: map icons, Map: scale, Map: settings, Pair a phone, Maps menu: main navigation menu, Pairing a phone, MENU, Parking: park assist, Menu: home page, Personal data: saving, Menu home page, Personal data saving: consumer information, Menu screen, Phone settings: phone ringtone,...
  • Page 115 ALPHABETICAL INDEX Voice activation: for voice recognition, Voice controls, Screen: menu, Voice guidance: enable voice guidance, Screen: standby, Voice recognition, Settings, Voice recognition: phone applications, Settings: brightness, Volume: adapt to speed, Settings: customisation, Volume: beep sound, Settings: navigation, Volume: system, SMS, Soft buttons, Sound balance: sound settings,...
