Summary of Contents for Citizen CH-406D

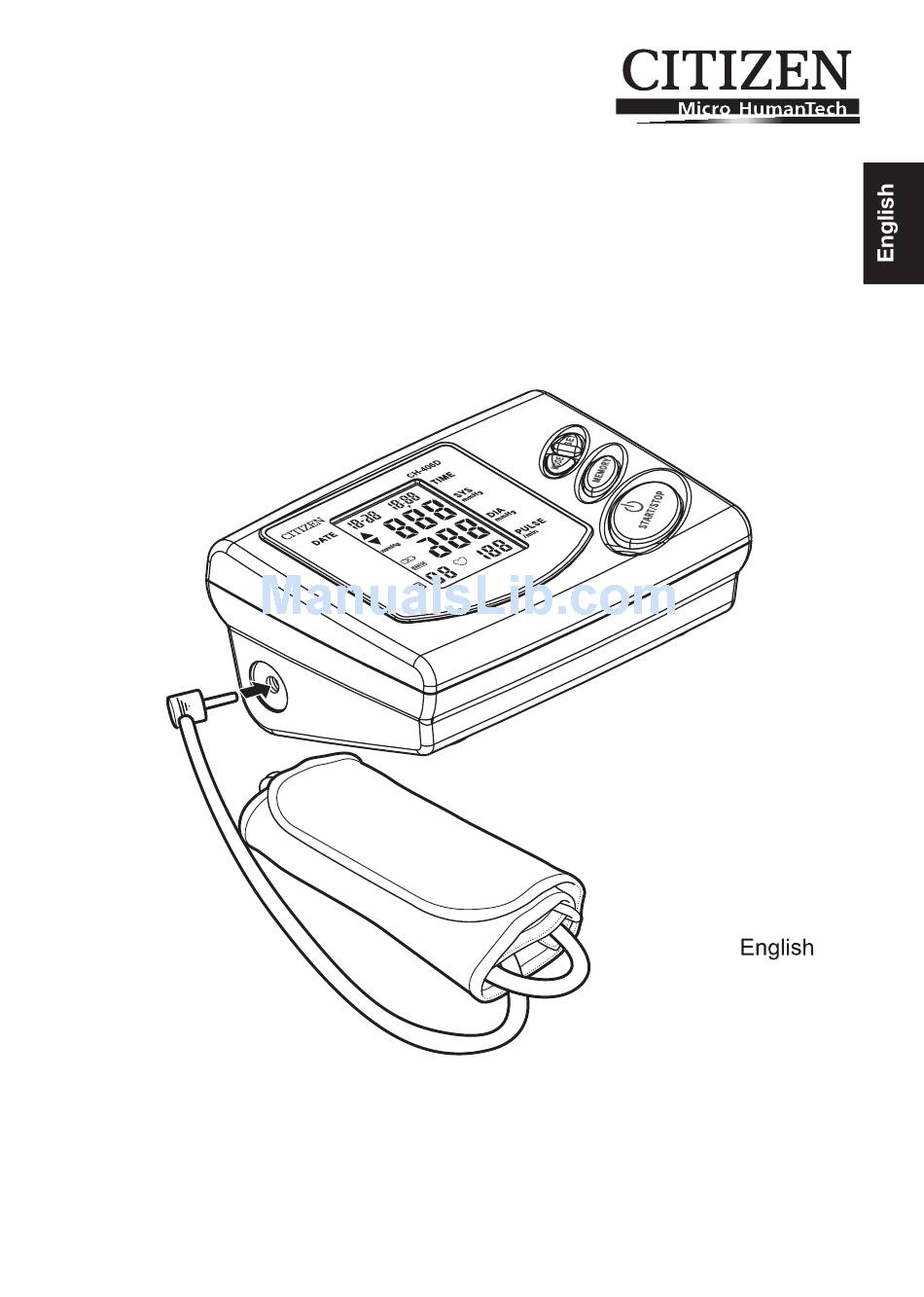

- Page 1 INSTRUCTION MANUAL DIGITAL BLOOD PRESSURE MONITOR CH-406D 0801...
-
Page 2: General Remarks
GENERAL REMARKS General remarks on blood pressure and blood pressure measurement 1. To defl ate the cuff quickly, press the “START/STOP” switch. 2. The attached cuff is suitable for arm circumferences of 23-33 cm (9-13 inches). 3. When attaching the cuff, the air hose should be placed on the inside of your arm on top of the artery. - Page 3 GENERAL REMARKS 7. DO NOT try to measure your blood pressure immediately after drinking coffee or tea or after smoking. 8. Measure your blood pressure when you are relaxed and still. Keep the center of the cuff at the level of your heart and DO NOT move your arm or talk. 9.
-
Page 4: Precautions For Use And Maintenance
PRECAUTIONS FOR USE AND MAINTENANCE Precautions for use 1. If you suffer from heart disease, high blood pressure or other circulatory disease, consult your physician before using the monitor. 2. If the cuff pressure feels abnormal or you experience any other irregularity while using the cuff, reduce the pressure immediately by pressing the “START/STOP”... - Page 5 PRECAUTIONS FOR USE AND MAINTENANCE 15. Be sure to use this unit only for measuring blood pressure. DO NOT use it for any other purpose. 16. DO NOT use this unit on infants. 17. Blood pressure measurements taken using this monitor are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation method within the limits prescribed by the American National Standard for electronic or automated sphygmomanometers.
- Page 6 PRECAUTIONS FOR USE AND MAINTENANCE Nature and frequency of maintenance: This product is designed for use over an extended period of time; however, it is generally recommended that it be inspected every two years to ensure proper function and performance. Protect the nature environment: Please help to protect natural environment by respecting national and/or local recycling regulations when disposing of the battery and the product at the end of...
- Page 7 STANDARDS Important! Read the operating instructions. Classifi cation: - Internally powered equipment - BF type applied part - IPX0 - Not suitable for use in presense of fl ammable anaesthetic mixture with air or with oxygen or nitrous oxide - Continuous operation with short-time loading This Blood Pressure Monitor complies with the European regulations and bears the CE mark "CE 0197".
- Page 8 COMPONENT NAMES AND LOCATIONS Component names MODE Switch Air hose connector SET Switch MEMORY Switch START/STOP Switch a Stand-by LCD display Air hose socket Air hose Cuff - Eng 8 -...
-
Page 9: Device Description
DEVICE DESCRIPTION Key to display icons Date display Time display Infl ation Systolic blood Defl ation pressure display Battery icon Diastolic blood pressure display Error icon Memory number Pulse display display Measurement icon - Eng 9 -... -
Page 10: Loading The Batteries
LOADING THE BATTERIES Open the battery compartment cover. 1 While pressing on the lock section of the battery compartment cover, 2 pull the cover toward you to open it. Battery compartment cover Insert the batteries into the compartment. Insert the batteries, taking care to ensure that the positive m and negative , terminals are positioned correctly. -
Page 11: Removing The Batteries
REMOVING THE BATTERIES Open the battery compartment cover. See page 10, “LOADING THE BATTERIES”.) Remove the batteries. Close the battery compartment cover. Replacing the batteries • If the appears on the display, or if nothing appears on the display when the “START/STOP” switch is pressed, fi t 4 new AA Alkaline batteries. •... -
Page 12: Using Ac Adapter (Option)
USING AC ADAPTER (OPTION) Using the optional dedicated AC adapter for the CITIZEN blood pressure monitor (CH-406D) allows you to measure your blood pressure without having to worry about the amount of remaining charge in the batteries. AC adapter socket 1. -
Page 13: Tips For Obtaining Accurate Measurements
TIPS FOR OBTAINING ACCURATE MEASUREMENTS Your blood pressure varies according to your posture, the time of day and a range of other factors. Ideally, you should measure your blood pressure in the same posture at the same time every day. ■... -
Page 14: Attaching The Arm Cuff
ATTACHING THE ARM CUFF Unroll the arm cuff. Metal hoop • Unroll the arm cuff and thread the end through the metal hoop so that the Velcro patch side with the Velcro patch is on the outside. Put the arm cuff around your arm so that the air hose is to the left of your palm. - Page 15 ATTACHING THE ARM CUFF Pull the end of the arm cuff outwards so that the cuff is snug around your arm and then secure the end to the Velcro. • Carefully place the cuff on your arm, taking care to use the correct tightness. The tightness is correct if you can readily slide a fi...
-
Page 16: Setting The Clock
SETTING THE CLOCK Initial state. (When you load the batteries in the unit for the fi rst time, carry out the reset procedure.) • Date/Time setting when the batteries are fi rst loaded into the unit. Date and time: January 1 12:00 Setting the Month, Date and Time: The current time and date should be set in the order written below. -
Page 17: Measuring Your Blood Pressure
MEASURING YOUR BLOOD PRESSURE Wrap the arm cuff tightly around your arm. See page 14 “ATTACHING THE ARM CUFF”.) Plug the air hose connector into the main unit. • Plug the air hose connector fi rmly into the air hose socket on the main unit as illustrated. Sit in the recommended position. -
Page 18: Recalling Data
RECALLING DATA ■ Recalling data Press the “MEMORY” recall switch. Press the “MEMORY” recall switch again. This recalls and displays fi rst the memory number and then the last set of data stored. DATE TIME SYSTOLIC mmHg DIASTOLIC mmHg MEMORY PULSE/MIN. -
Page 19: Key To Display Icons
KEY TO DISPLAY ICONS Icon displayed Condition/Cause Corrective action This icon appears Remain quiet while when the unit is in measurement is in measurement mode and progress. Measurement icon fl ashes when a pulse is detected. This appears when the Replace all four level of remaining charge batteries with new... - Page 20 ABOUT “BLOOD PRESSURE” What is blood pressure? The heart is a pump that circulates blood throughout your body. Blood is pumped from the heart at a constant pressure into arteries. This pressure is called the arterial blood pressure and represents, in general terms, your blood pressure. Blood pressure is indicated by several kinds of pressures, including the systolic pressure that occurs when the heart pumps blood and the diastolic pressure that occurs when blood returns to the heart.
-
Page 21: Blood Pressure Q&A
BLOOD PRESSURE Q&A Why is the blood pressure measured at home different from that measured by the physician or at a hospital? Your blood pressure may vary due to exercise, the ambient temperature or your mental state. When you have a physician or nurse measure your blood pressure, the pressure value is likely to be 10 to 20 mmHg higher than usual due to anxiety and/or stress. -
Page 22: Before Requesting Repairs Or Testing
BEFORE REQUESTING REPAIRS OR TESTING Make sure to check the following before sending your blood pressure monitor away to be tested or repaired. Problem Checks Response Display stays blank Check whether the Replace all the batteries when you press the batteries are dead. -
Page 23: Specifications
SPECIFICATIONS Model Number: CH-406D Measurement system: Oscillometric method Cuff: Soft cuff Arm circumference range: 23.0 to 33.0 cm (9 to 13 inch) Pressure 0 to 280 mmHg Measurement range: Pulse 40 to 199 pulse/min Pressure ±3 mmHg Accuracy: Pulse ±5% of reading Pressure Systolic blood pressure: 3 digits Pulse... - Page 24 CITIZEN is a registered trademark of Citizen Holdings Co., Japan. CITIZEN es una marca registrada de Citizen Holdings Co., Japón. Design and Specification are subject to change without notice.
