Summary of Contents for Citizen CH-432BS

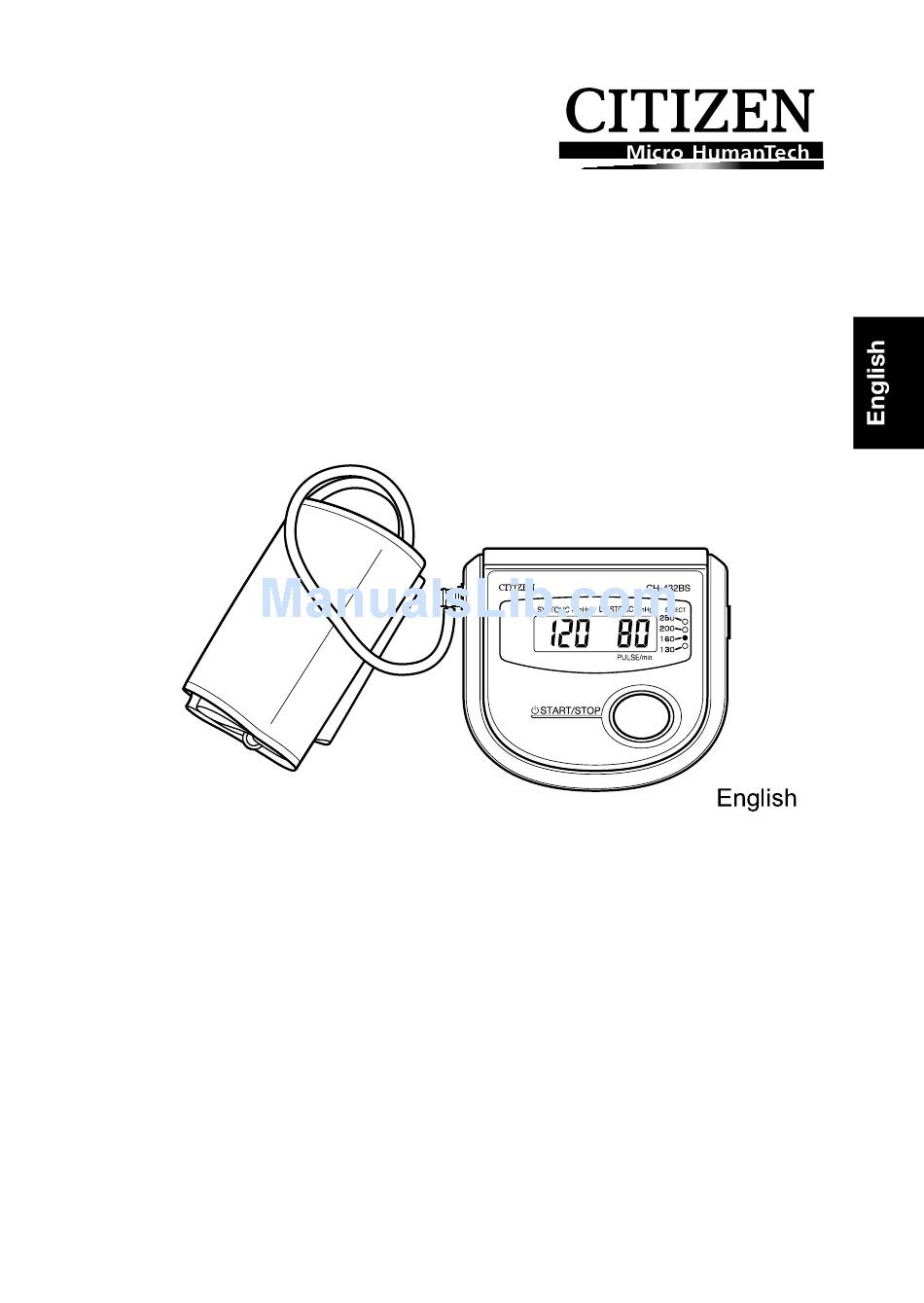

- Page 1 INSTRUCTION MANUAL DIGITAL BLOOD PRESSURE MONITOR CH-432BS 0701...
-
Page 2: Table Of Contents
Contents 3 - GENERAL REMARKS 5 - PRECAUTIONS FOR USE AND MAINTENANCE 8 - IDENTIFICATIONS OF PARTS 10 - LOADING THE BATTERIES 11 - REMOVING THE BATTERIES 12 - USING AC ADAPTER (OPTION) 13 - MEASURING YOUR BLOOD PRESSURE 20 - KEY TO DISPLAY ICONS 21 - ABOUT “BLOOD PRESSURE”... -
Page 3: General Remarks
GENERAL REMARKS General remarks on blood pressure and blood pressure measurement To defl ate the cuff quickly, press the “START/STOP” switch. The attached cuff is suitable for arm circumferences of 22-32 cm. When attaching the cuff, the air hose should be placed on the inside of your arm on top of the artery. - Page 4 GENERAL REMARKS DO NOT measure blood pressure when the cuff has been on your arm for a few minutes or more. During this time, your arm will have built up a higher blood pressure and you will not get valid reading. 10.
-
Page 5: Precautions For Use And Maintenance
PRECAUTIONS FOR USE AND MAINTENANCE Precautions for use If you suffer from heart disease, high blood pressure or other circulatory disease, consult your physician before using the monitor. If the cuff pressure feels abnormal or you experience any other irregularity while using the cuff, reduce the pressure immediately by pressing the “START/STOP”... - Page 6 PRECAUTIONS FOR USE AND MAINTENANCE 15. Be sure to use this unit only for measuring blood pressure. DO NOT use it for any other purpose. 16. DO NOT use this unit on infants. 17. Blood pressure measurement may not be possible for anyone with common arrhythmias such as atrial or ventricular premature beats or atrial fi...
-
Page 7: Nature And Frequency Of Maintenance
The blood pressure measuring device is generally recommended to have the monitor inspected every two years to ensure correct functioning and accuracy. Please contact a distributor. Name : CITIZEN SYSTEMS(H.K.) LIMITED Address : FLAT A-B, 4TH FLOOR, HUNG MOU INDUSTRIAL BUILDING, 62 HUNG TO ROAD, KWUN TONG,... -
Page 8: Identifications Of Parts

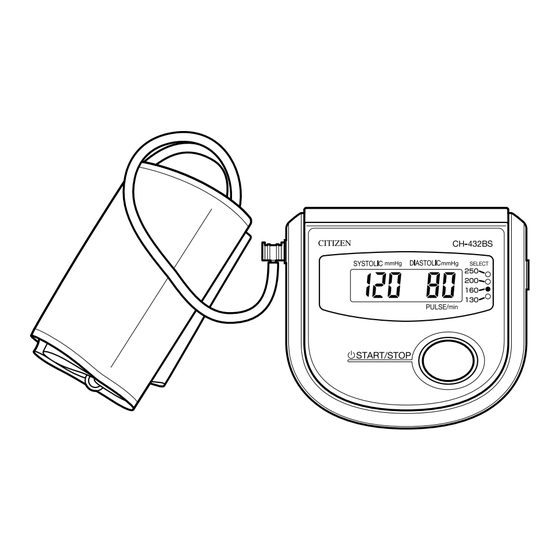

IDENTIFICATION OF PARTS Component names <Main Unit> Systolic blood pressure display Diastolic blood pressure/Pulse display Air hose socket START/STOP Switch w Stand-by Pressurization setting switch (Infl ation level selector) Pressurization setting indicator - Eng 8 -... - Page 9 IDENTIFICATION OF PARTS Battery cover <Cuff> Air hose Blue marker Air hose connector - Eng 9 -...
-
Page 10: Loading The Batteries
LOADING THE BATTERIES (Batteries supplied with the unit should be loaded in compartment before you use the blood pressure monitor.) Open the cover of battery compartment. Pressing the hook down, pull the cover toward you to open. 4 “AA” batteries Hook Battery compartment... -
Page 11: Removing The Batteries
LOADING THE BATTERIES Close the battery cover. Fitting the lugs of the cover at the mating recesses of the battery compartment body, push the hook to close the cover. Fit the lugs (projections) at the recesses. REMOVING THE BATTERIES • When the icon is displayed or nothing appears in the display, replace the old batteries with four new ones. -
Page 12: Using Ac Adapter (Option)
USING AC ADAPTER (OPTION) Using the optional dedicated AC adapter (model: AC-230CZ) for the CITIZEN blood pressure monitor (CH-432BS) allows you to measure your blood pressure without having to worry about the amount of remaining charge in the batteries. AC adapter socket... -
Page 13: Measuring Your Blood Pressure
MEASURING YOUR BLOOD PRESSURE ATTACHING THE ARM CUFF Unroll the arm cuff and thread the end through the metal hoop so that the side with the Velcro patch is on the outside. Put the arm cuff around your arm so that Metal hoop the blue marker comes to the palm side. - Page 14 MEASURING YOUR BLOOD PRESSURE Pull the end of the arm cuff outwards so that the cuff is snug around your arm and then secure the end to the Velcro. Place your arm on a table or the like, so that the center of the cuff comes to the height of your heart.
-
Page 15: Tips For Obtaining Accurate Measurements
TIPS FOR OBTAINING ACCURATE MEASUREMENTS Your blood pressure varies according to your posture, the time of day and a range of other factors. Ideally, you should measure your blood pressure in the same posture at the same time every day. ■... - Page 16 MEASURING YOUR BLOOD PRESSURE Air hose socket Plug the air hose connector into the main unit. • Plug the air hose connector fi rmly into the air hose socket on the main unit, as illustrated. Air hose connector Set the pressurization setting value The setting value should be Pressurization setting at least 30mmHg higher than...
- Page 17 MEASURING YOUR BLOOD PRESSURE Place the cuff at the height of the heart. Press the START/STOP switch (the yellow switch). If the pressurization value exceeds 280mmHg, if pressurization feels abnormal, or if you want to stop the measurement process, press the START/STOP switch again.
- Page 18 MEASURING YOUR BLOOD PRESSURE 3 Once pressurization is complete, there is a pause before lights and measurement begins automatically. fl ashes each time a pulse is counted, and the pressure value is displayed on the diastolic blood pressure display. 5 Once measurement is complete, the cuff defl...
-
Page 19: Automatic Power Off Feature
MEASURING YOUR BLOOD PRESSURE Finishing measurement. • Press the “START/STOP” switch to turn the monitor off. * When you want to stop measurement, press the “START/STOP” switch. The cuff is defl ated and measurement stops. START/STOP Switch AUTOMATIC POWER OFF FEATURE •... -
Page 20: Key To Display Icons
KEY TO DISPLAY ICONS Icon displayed Condition/Cause Measurement is under way. Displayed during measurement. Flashing Pulse detected. Displayed during “PUL Err” is displayed when the pulse measurement. value is below 40 or above 181. If any of the following marks is displayed, take the specifi ed action, then repeat the operation. -
Page 21: About "Blood Pressure
ABOUT “BLOOD PRESSURE” What is blood pressure? The heart is a pump that circulates blood throughout your body. Blood is pumped from the heart at a constant pressure into arteries. This pressure is called the arterial blood pressure and represents, in general terms, your blood pressure. Blood pressure is indicated by several kinds of pressures, including the systolic pressure that occurs when the heart pumps blood, and the diastolic pressure that occurs when blood returns to the heart. -
Page 22: Blood Pressure Q&A
BLOOD PRESSURE Q&A Why is the blood pressure measured at home different from that measured by the physician or at a hospital? Your blood pressure may vary due to exercise, the ambient temperature or your mental state. When you have a physician or nurse measure your blood pressure, the pressure value is likely to be 10 to 20 mmHg higher than usual due to anxiety and/or stress. -
Page 23: Before Requesting Repairs Or Testing
BEFORE REQUESTING REPAIRS OR TESTING Make sure to check the following before sending your blood pressure monitor away to be tested or repaired. Problem Checks Response Display stays blank when Check whether the Replace all the batteries you press the “START/ batteries are dead. -
Page 24: Specifications
SPECIFICATIONS Model Number: CH-432BS Measurement system: Oscillometric method Measurement Localization Upper Arm Cuff: Soft cuff Arm circumference range: 22.0 to 32.0 cm Pressure 0 to 280 mmHg Measurement range: Pulse 40 to 180 pulse/min Pressure ±3 mmHg Accuracy: Pulse ±5% of reading Pressure 3 digits Pulse... - Page 25 CITIZEN is a registered trade mark of Citizen Holdings Co., Japan. CITIZEN es una marca registrada de Citizen Holdings Co., Japón. Design and Specification are subject to change without notice.
