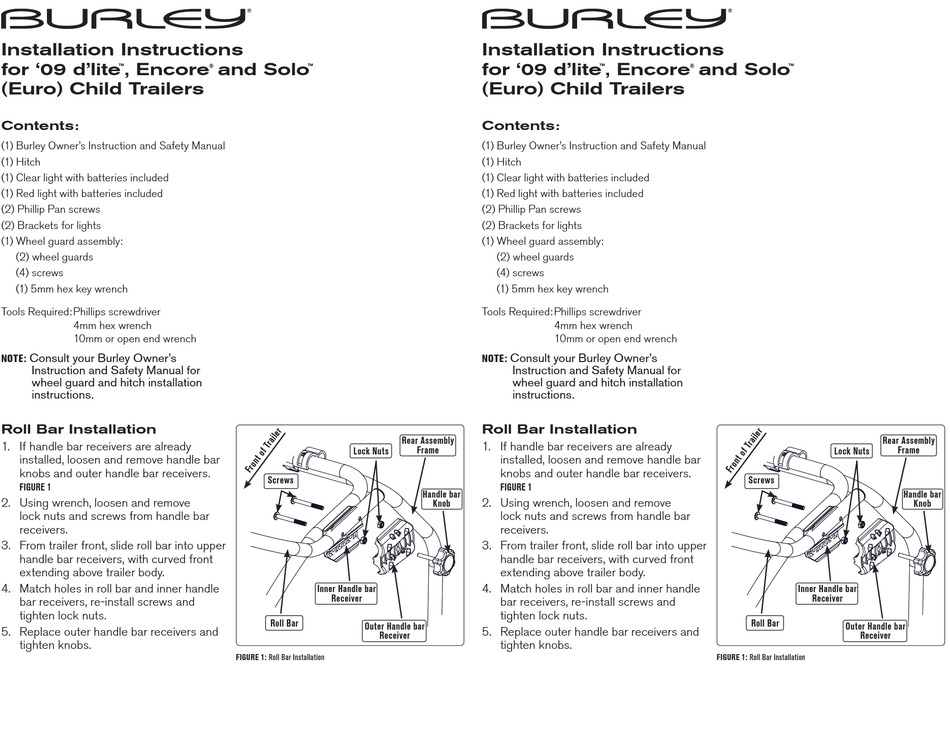

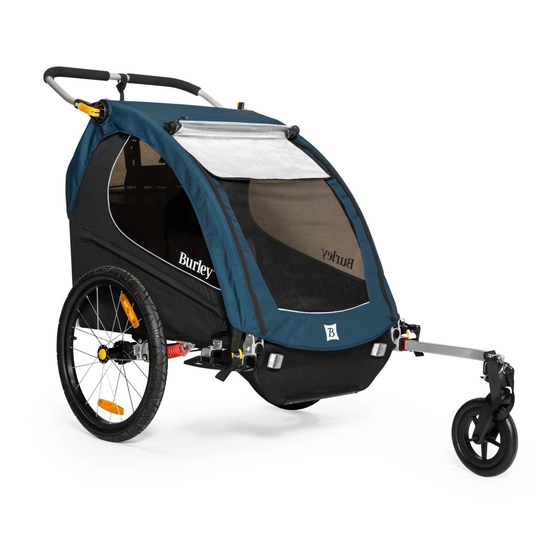

Burley 09 d'lite Installation Instructions

Installation Instructions

for '09 d'lite , Encore
™
(Euro) Child Trailers
Contents:
(1) Burley Owner's Instruction and Safety Manual
(1) Hitch
(1) Clear light with batteries included
(1) Red light with batteries included
(2) Phillip Pan screws
(2) Brackets for lights
(1) Wheel guard assembly:
(2) wheel guards
(4) screws
(1) 5mm hex key wrench
Tools Required: Phillips screwdriver
4mm hex wrench
10mm or open end wrench
Consult your Burley Owner's
Note:
Instruction and Safety Manual for
wheel guard and hitch installation
instructions.
Roll Bar Installation
1. If handle bar receivers are already
installed, loosen and remove handle bar
knobs and outer handle bar receivers.
Figure 1
2. Using wrench, loosen and remove
lock nuts and screws from handle bar
receivers.
3. From trailer front, slide roll bar into upper
handle bar receivers, with curved front
extending above trailer body.
4. Match holes in roll bar and inner handle
bar receivers, re-install screws and
tighten lock nuts.
5. Replace outer handle bar receivers and
tighten knobs.
and Solo
™
®
Lock Nuts
Screws
inner Handle bar
receiver
roll Bar
Outer Handle bar
receiver
Figure 1: Roll Bar Installation
Installation Instructions
for '09 d'lite
(Euro) Child Trailers
Contents:
(1) Burley Owner's Instruction and Safety Manual
(1) Hitch
(1) Clear light with batteries included
(1) Red light with batteries included
(2) Phillip Pan screws
(2) Brackets for lights
(1) Wheel guard assembly:
(2) wheel guards
(4) screws
(1) 5mm hex key wrench
Tools Required: Phillips screwdriver
4mm hex wrench
10mm or open end wrench
Consult your Burley Owner's
Note:
Instruction and Safety Manual for
wheel guard and hitch installation
instructions.
Roll Bar Installation
rear Assembly
1. If handle bar receivers are already
Frame
installed, loosen and remove handle bar
knobs and outer handle bar receivers.
Figure 1
Handle bar
2. Using wrench, loosen and remove
Knob
lock nuts and screws from handle bar
receivers.
3. From trailer front, slide roll bar into upper
handle bar receivers, with curved front
extending above trailer body.
4. Match holes in roll bar and inner handle
bar receivers, re-install screws and
tighten lock nuts.
5. Replace outer handle bar receivers and
tighten knobs.
, Encore and Solo
™
®
Screws
roll Bar
Figure 1: Roll Bar Installation
™
rear Assembly
Frame
Lock Nuts
Handle bar
Knob
inner Handle bar
receiver
Outer Handle bar
receiver
