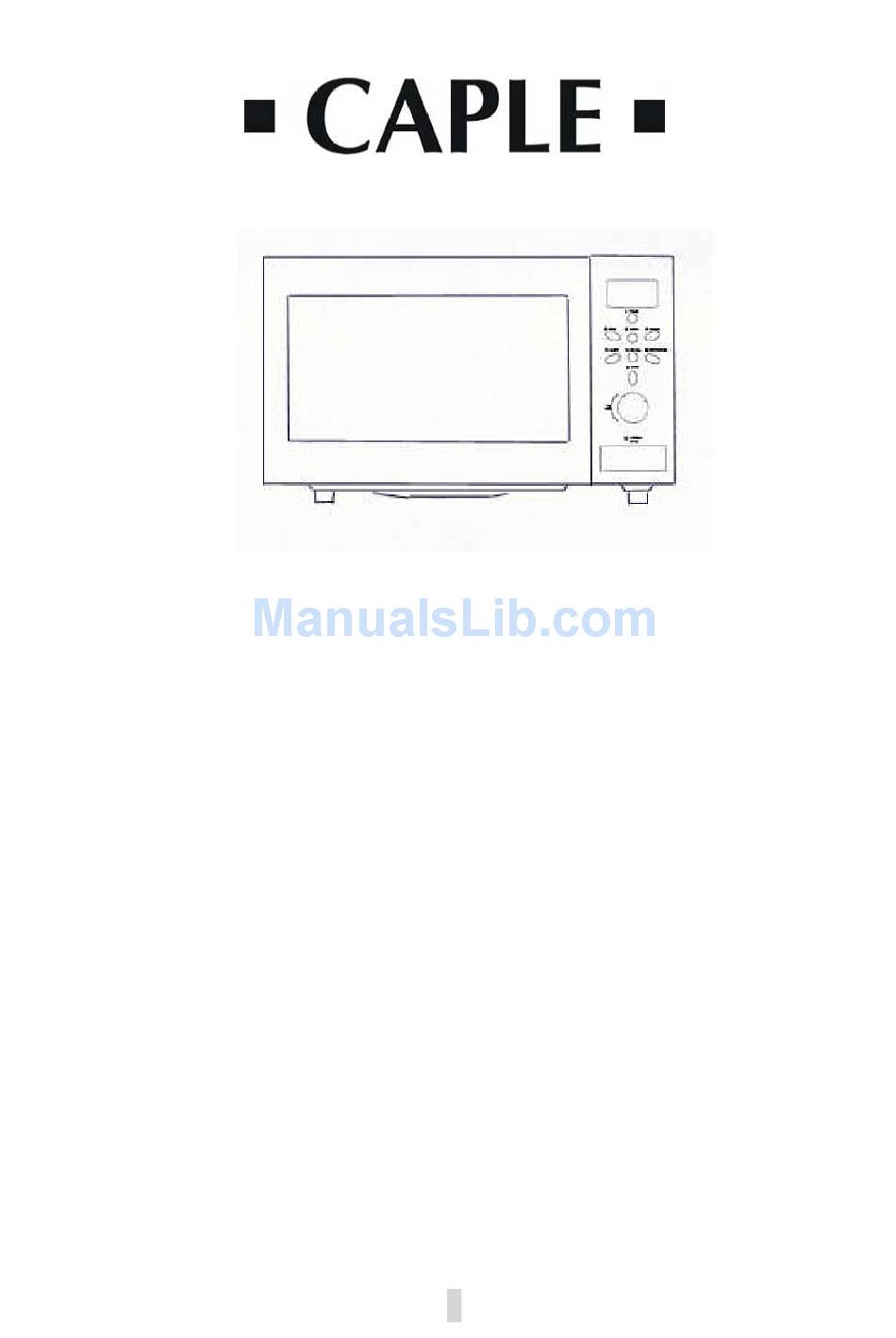

MODEL: CM104-5-6
Microwave Oven Owner's Manual
Please read these instructions carefully before installing and operating the oven. Keep them for
further reference.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM104 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple CM104

Summary of Contents for Caple CM104

  • Page 1 MODEL: CM104-5-6 Microwave Oven Owner's Manual Please read these instructions carefully before installing and operating the oven. Keep them for further reference. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference. SERIAL NO.

  • Page 2: Table Of Contents

    PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

  • Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    Power Consumption: 230V~50Hz, 1400W(Microwave) 230V, 1000W(Heater) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 305mm(H)×508mm(W)×410mm(D) Oven Cavity Dimensions: 215mm(H)×350mm(W)×330mm(D) Oven Capacity: 23Litres Cooking Uniformity: Turntable System{Φ314mm} Net Weight: Approx.16.5kg *All data subject to verification by available data on the nameplate of the oven. Make sure that all the packing materials are removed from the inside of the door.

  • Page 4: Radio Interference

    the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

  • Page 5: Microwave Cooking Principles

    manufacturer or its service agent or a similarly qualified person in order to avoid a hazard WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

  • Page 6: Utensils Guide

    Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

  • Page 7: Control Panel

    POWER  Touch this pad a number of times to set  microwave cooking power level. GRILL  Press this pad to set a grill-cooking program up  to 60 minutes. COMB1/COMB2  Press either of these two pads to set a ...

  • Page 8: How To Set The Oven Controls

    Each time a button is pressed, a beep will sound to acknowledge the press. SETTING THE CLOCK Wh e n t h e o v e n i s f i r s t p l u g g e d i n , t h e d i s p l a y s h o w s “ 1 : 0 1 ” , t h i s i s a 1 2 -hour clock. To check the time while the oven is operating, press the CLOCK button, then the time will be displayed for 5 seconds in the display.

  • Page 9: Combination 1

    For example, suppose you want to grill for 12 minutes.  Press STOP/CANCEL button.  Press GRILL button.  Turn the TIME/MENU to 12:00.  Press START button. COMBINATION 1 The longest cooking time is 60 minutes. 30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin. FOR EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.

  • Page 10: Express Cooking

    starts to work after you touching the START pad. You may need to turn food over at the middle of cooking time to obtain uniform cooking. For example, to cook 400g of fish..  Press STOP/CANCEL button.  Turn MENU dial to fish cooking, which is the item 6 on the auto-menu. ...

  • Page 11: Setting Timer

    SETTING TIMER The minute timer will enable you to set a countdown time. The oven light, turntable, and cooling fan are in operation, but there is no microwave radiation. You may use this feature in case you want to timing cooking operation. For example, suppose you want to set timer for 3 minutes.

  • Page 12: Before You Call For Service

    If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. In such case, it is normal. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

This manual is also suitable for:

Cm105Cm106
