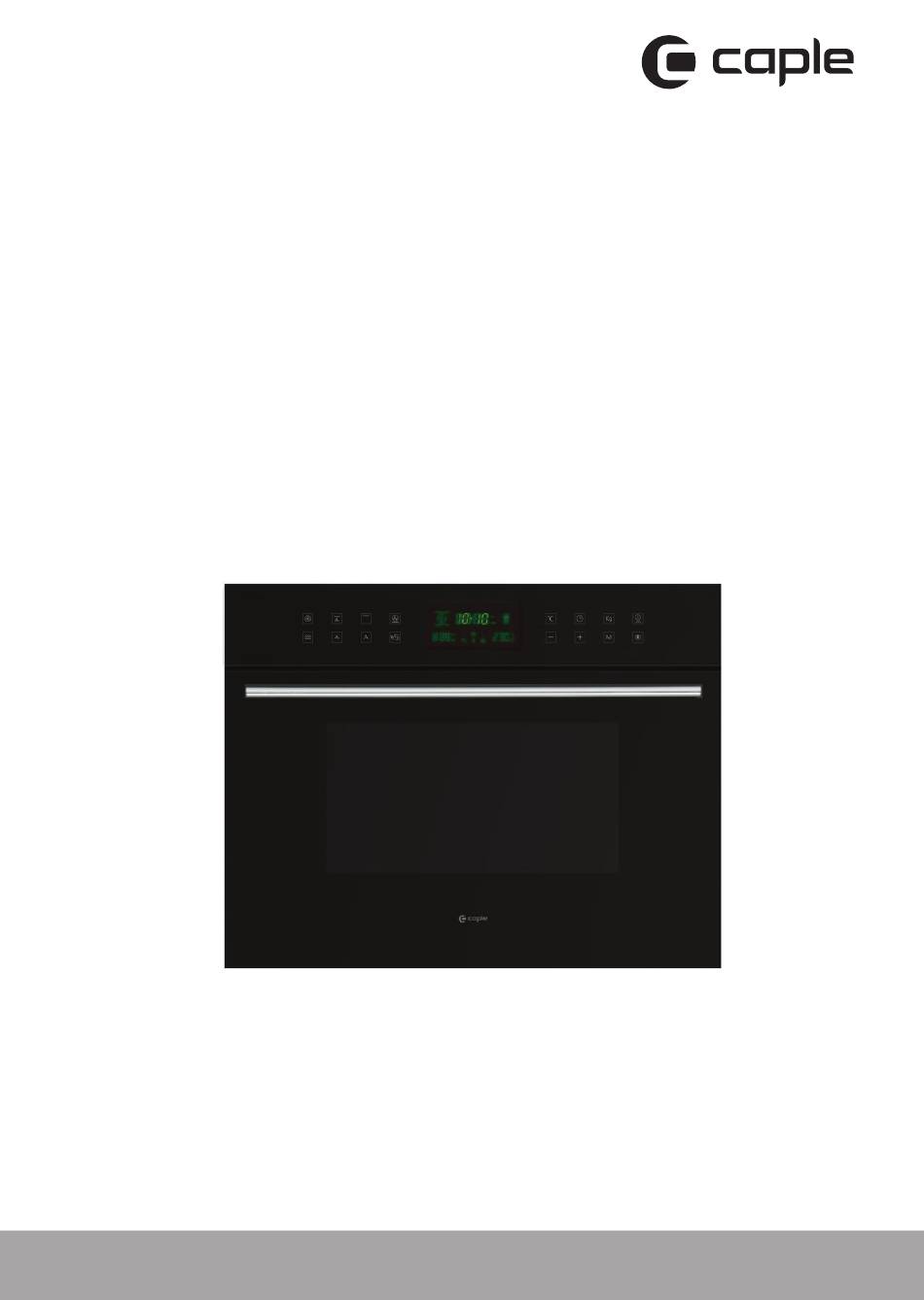

Page 1: Instruction Manual
Classic combination microwave instruction manual CM140 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk... -
Page 2: Table Of Contents
CONTENTS Safety instructions Environmental protection Oven installation Using your oven Electronic timer Care and maintenance Troubleshooting Cooking guide Caple Service contact details Please keep this instruction manual for future reference Instruction manual CM140... -
Page 3: Safety Instructions
- The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. - Children less than 8 years of age should be kept away unless continuously supervised. Please keep this instruction manual for future reference Instruction manual CM140... - Page 4 - Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you. - It is dangerous to alter or modify the specifications of the appliance in any way.
- Page 5 - Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. Please keep this instruction manual for future reference...
- Page 6 - Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorised technician. - Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons. - When unpacking the appliance, make sure that it is not damaged during transportation.
- Page 7 WARNING - If the door or door seals are damaged, the microwave must not be operated until it is repaired by a Caple approved engineer. Please keep this instruction manual for future reference Instruction manual CM140...
- Page 8 WARNING - It is hazardous for anyone other than Caple approved engineers to carry out any service or repair that involves the removal of a cover which gives protection against exposure to the microwave energy. - Microwave energy may escape if the cooking compartment door or the door seal is damaged.
- Page 9 - A defective appliance may cause an electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box and contact Caple service. - The appliance is a high-voltage appliance. Never remove the casing.
- Page 10 These perforations conceal a cavity below. Any moisture that penetrates this cavity could cause the ovenware to crack. Only use microwave-safe ovenware. Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 11: Cooking Compartment
- Transporting the appliance: Do not carry or hold the appliance by the door handle. The door Please keep this instruction manual for future reference Instruction manual CM140... - Page 12 - Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 13: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 14: Oven Installation
- The units into which the appliance is fitted must be heat resistant up to 90˚C. min 45 min 45 Ventilation grid Cupboard feet Note: There should be gap above the oven. Note: there should be a gap above the oven. Please keep this instruction manual for future reference Instruction manual CM140... - Page 15 - Do not use multiple plugs, power strips or extensions, overloading causes a risk of fire. - If the connection is no longer accessible following the installation, an all-pin isolating switch with a contact gap of at least 3mm must be provided. Please keep this instruction manual for future reference Instruction manual CM140...
- Page 16 15A or higher. The appliance must be disconnected from the power supply during installation. When the appliance is installed, protection must be provided against accidental contact in future. Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 17: Using Your Oven
For frozen convenience products and dishes that require al lot of heat from underneath. TURBO DEFROST Two defrosting programmes MICROWAVE & FAN HEAT Use this function to roast meals quickly. Please keep this instruction manual for future reference Instruction manual CM140... - Page 18 Once the function or programme has been selected press start. PAUSE Touch briefly and release to stop. Touch twice to cancel WEIGHT Set the weight using the parameter adjustment controls Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 19: Cooling Fan
The turntable can turn clockwise or anti-clockwise. Place the turntable on the drive in the centre of the cooking compartment. Ensure it is positioned correctly. Please keep this instruction manual for future reference Instruction manual CM140... - Page 20 - Touch the to start operation Cleaning the accessories - Before you use the accessories for the first time clean them thoroughly with hot, soapy water and a cloth. Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 21: Setting The Oven
- This can be done at any time. Touch the key for the new temperature setting, touch the - or + key to set the temperature. Cancelling operations - Touch the key twice to cancel the operation. Please keep this instruction manual for future reference Instruction manual CM140... - Page 22 - Only when the alarm sounds, and the preheating symbol is flashing in the display is it safe to open the door. Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 23: Suitable Ovenware
Heat the empty ovenware at maximum power for ½ to 1 minute. - Check the temperature occasionally during that time. The ovenware should still Please keep this instruction manual for future reference Instruction manual CM140... -
Page 24: Microwave Power Settings
- The microwave power can be set to 900W for a maximum of 30 minutes. With all other power settings a maximum cooking time of 1 hour 30 minutes is possible. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 25: Setting The Microwave
- or + to change the microwave power setting. Pausing operation - Touch the key briefly. The oven is paused. Touch the to continue operation. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 26: Microcombi Operation
The cooking time has elapsed - A signal sounds. Combination mode has finished. Opening the oven door during operation - Operation is suspended. After closing the door, touch the to continue operation. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 27: Changing The Temperature
- or + or key to select the programme P03 - Touch the key then touch - or + to set the weight, it will automatically set the cooking time. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 28: Auto Menu
- The programmes with ** only use the microwave function. - For programmes P03, P04, P05, P06, P07, P11, P12 and P13, food should be placed on the 60mm high wire rack to cook. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 29: Defrosting Programmes
- Place the food in a microwaveable shallow dish, e.g. a china or glass plate, but do not cover. - When defrosting chicken and chicken portions (d 01), an audible signal will sound on two occasions to indicate that the food should be turned. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 30: Electronic Timer
The timer duration has elapsed - A signal sounds. 0:00 is shown in the display. Cancelling the timer duration - Touch the key to cancel the timer. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 31: Setting The Cooking Time
No cooking time or function should be set. - Touch and hold the key for approximately 3 seconds - The lock symbol appears on the display indicating the lock is activated. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 32: Switching Off The Childproof Lock
(N1, N2 or N3). - Once the correct setting has been selected, press the key to start that memory cooking function. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 33: Care And Maintenance
- Microwave energy may escape if the cooking compartment door or the door seal is damaged. Never use the appliance if the cooking compartment door or the door seal is damaged and contact Caple service. Notes - Slight differences in colour on the front of the appliance are caused by the use of different materials, such as glass, plastic and metal. -
Page 34: Cleaning Agents
Corrosion can form under such residues. Special stainless steel cleaning agents can be used which can be purchased from most DIY stores. Do not use glass cleaners, metal or glass scrapers for cleaning. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 35: Technical Specification
3300W Rated Output Power (microwave) 900W Rated Current Oven Capacity Turntable Diameter Ø 360mm External dimensions without handle 595 (W) x 525 (D) x 454(H)mm Net weight Approx 33kg Please keep this instruction manual for future reference Instruction manual CM140... -
Page 36: Troubleshooting
Troubleshooting Malfunctions often have simple explanations. Please refer to the troubleshooting table below before calling Caple service. If a meal does not turn out exactly as you wanted, refer to the Expert Cooking Guide section, where you will find plenty of cooking tips and tricks Warning Incorrect repairs are dangerous. - Page 37 E11 appears in display Moisture in the control Allow the control panel to panel. dry. E17 appears in display Rapid heating has failed. Contact Caple service Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 38: Energy Saving Tips
- You can also place two loaf tins next to each other. - For longer cooking times, you can switch the oven off 10 minutes before the end of the cooking time and use the residual heat to finish cooking. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 39: Cooking Guide
- Use the accessories supplied. Additional accessories may be obtained from specialist retailers or from www.caple.co.uk. - Always use an oven cloth or oven gloves when taking accessories or ovenware out of the cooking compartment. - Page 40 100W, 15-20 mins Freeze food flat if possible. Turn 300W, 5 mins + several times, 100W, 10-15 mins remove any 300W, 8 mins + defrosted meat 100W, 15-20 mins Please keep this instruction manual for future reference Instruction manual CM140...
- Page 41 Cakes 300W, 5 mins + Only for cakes (moist cakes e.g. 100W, 10-15 mins without icing, cheesecake) cream or gelatine 0.75 300W, 7 mins + 100W, 10-15 mins Please keep this instruction manual for future reference Instruction manual CM140...
- Page 42 700W, 25-30 mins Fillet of fish 700W, 10-15 mins Covered 700W, 18-20 mins Side dishes 0.25 700W, 2-5 mins Ovenware with lid, (e.g. rice, pasta) add liquid 700W, 8-10 mins Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 43: Heating Food
100ml 300W, approx 1-2 min compartment floor without the teat 200ml 300W, approx 2-3 min or lid. Shake or stir well after heating. You must check the temperature Please keep this instruction manual for future reference Instruction manual CM140... -
Page 44: Cooking Food
Rice 0.125 700W, 7-9 mins + Add double the 300W, 15-20 mins quantity of liquid and use deep 0.25 700W, 10-12 mins + ovenware with a 300W, 20-25 mins Please keep this instruction manual for future reference Instruction manual CM140... -
Page 45: Microwave Tips
- Always place the cake tin in the centre of the lower wire rack. Food with ** should be placed in the turntable - It is best to use dark-coloured metal baking tins. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 46: Baking Tables
Yeast dough Round pizza 160-180 50-60 with dry tray topping *Allow cake to cool in oven for approx. 20 minutes ** The food should be placed in the turntable Please keep this instruction manual for future reference Instruction manual CM140... - Page 47 COOKING TIME (˚C) (MINS) Sourdough Round pizza tray 210-230 50-60 Flatbread Round pizza tray 220-230 25-35 Rolls Round pizza tray 210-230 25-35 Rolls Round pizza tray 200-220 15-25 (sweet yeast) Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 48: Baking Tips
When baking cakes with a moist topping, bake the water). base first, cover with almonds or bread crumbs and then add the topping. Please follow the recipe and follow the baking times. Please keep this instruction manual for future reference Instruction manual CM140... - Page 49 Change the position of the tin in the cooking wire rack. compartment. If this does not help, continue baking but without the microwave power. The baking time will then be longer. Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 50: Roasting And Grilling
The glass could crack if placed on a dry kitchen towel after they have been removed from the oven. The glass could crack if placed on a cold or wet surface. Please keep this instruction manual for future reference Instruction manual CM140... -
Page 51: Tips For Grilling
- The grill element switches off and on again automatically. This is normal. The grill setting determines how frequently this will happen. Please keep this instruction manual for future reference Instruction manual CM140... - Page 52 TIME (MINS) Joint of veal Ovenware 180-200 110-130 approx. 1kg* with lid Knuckle of veal Ovenware 200-220 120-130 approx 1.5kg* with lid * Lower wire rack ** Higher wire rack Please keep this instruction manual for future reference Instruction manual CM140...
- Page 53 Neck of pork Higher wire 15-20 approx 2cm rack 1st side thick** 10-15 2nd side Sausages (4-6) 10-15 approx 150g each side each * Lower wire rack ** Higher wire rack Please keep this instruction manual for future reference Instruction manual CM140...
- Page 54 Poulard, whole Ovenware 220-230 approx. 1.2g* without lid 20-30 Chicken, halves Ovenware 180-200 30-35 500g each* with lid Chicken, portions Ovenware 210-230 20-30 approx 800g* with lid Please keep this instruction manual for future reference Instruction manual CM140...
- Page 55 Higher wire 20-25 e.g. salmon, rack 3cm thick Whole fish, Higher wire 20-30 2 or 3 pieces, rack 300 g each * Lower wire rack ** Higher wire rack Please keep this instruction manual for future reference Instruction manual CM140...
- Page 56 Carve the roast. Prepare the gravy in the roasting enough. . dish and place the slices of roast meat in the gravy. Finish cooking the meat using the microwave only Please keep this instruction manual for future reference Instruction manual CM140...
- Page 57 Potato gratin Ovenware 180-200 25-30 made from raw without lid ingredients approx 1.1kg Toast with 8-10 topping 4 slices** * Lower wire rack ** Higher wire rack Please keep this instruction manual for future reference Instruction manual CM140...
- Page 58 Chicken Turntable 200-220 15-20 goujons Lasagne Lower wire 220-230 12-17 approx 400g rack * Preheat the cooking compartment for 5 minutes. ** Place the food in suitable, heat-resistant ovenware. Please keep this instruction manual for future reference Instruction manual CM140...
- Page 59 Please keep this instruction manual for future reference Instruction manual CM140...
-
Page 60: Caple Service Contact Details
Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual CM140...
