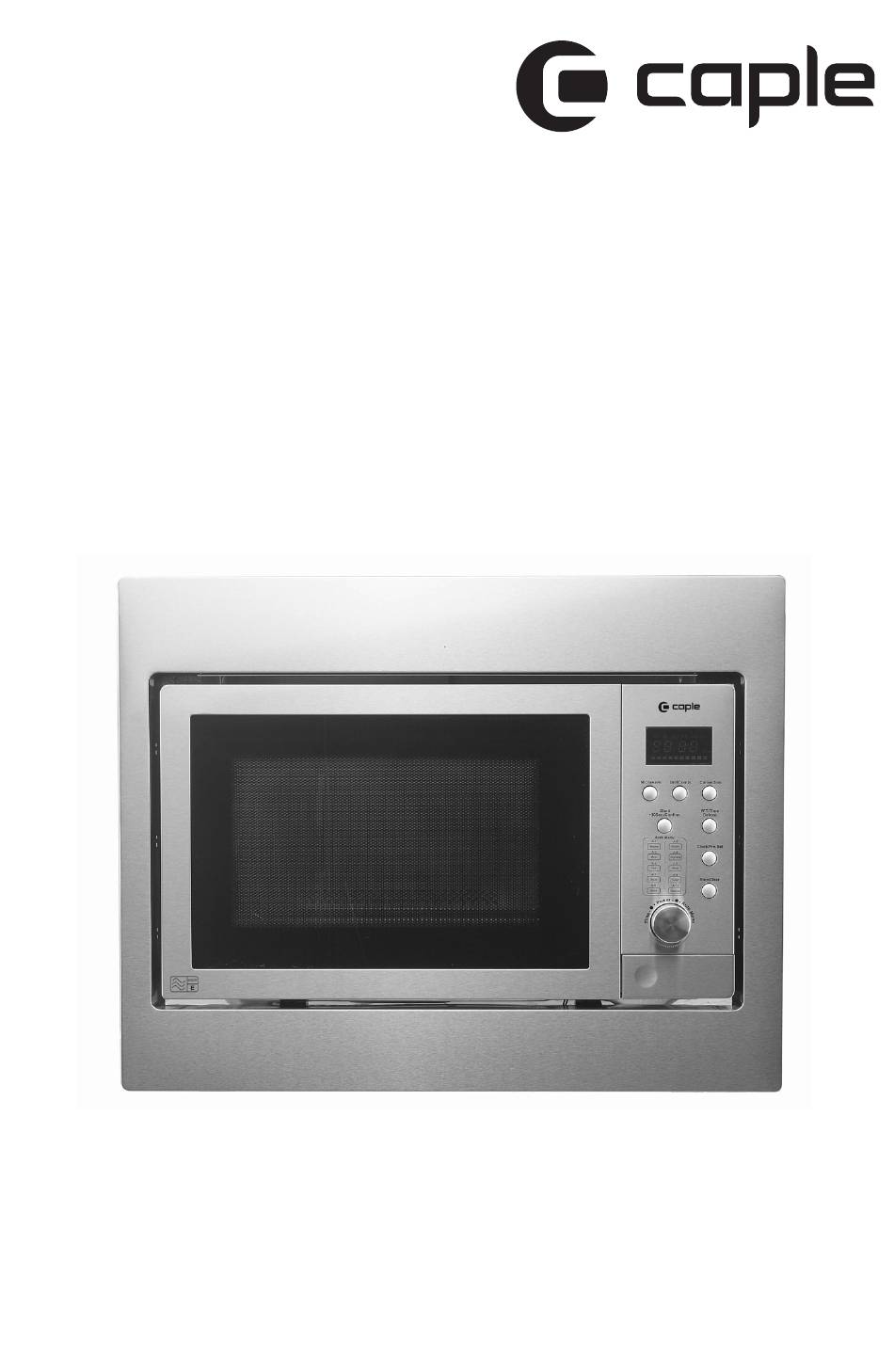

- Page 1 Instruction manual for combination microwave oven Model code: CM118 Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
-
Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: CM118 Rated Voltage: 230V~50Hz Rated Input Power(Microwave): 1450W... -
Page 3: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 13. Install or locate this oven only in 1. -
Page 4: Read Carefully And Keep For Future Reference
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: To Reduce The Risk Of Injury To Persons Grounding Installation
To Reduce the Risk of Injury to Persons Grounding Installation DANGER 2)The extension cord must be a grounding- type 3-wire cord. Electric Shock Hazard 3)The long cord should be arranged so that Touching some of the interna components it will not drape over the counter top or can cause serious personal injury or death. -
Page 6: Materials You Can Use In Microwave Oven
UTENSILS See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not CAUTION safe to use for microwaving. If in doubt, you can test the Personal Injury Hazard utensil in question following the procedure below. -
Page 7: Materials To Be Avoided In Microwave Oven
Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle Metal or metal- Metal shields the food from microwave energy. Metal trim may trimmed utensils cause arcing. -
Page 8: Turntable Installation
Turntable Installation a. Never place the glass tray upside down. The glass Hub (underside) tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. Glass tray c. All food and containers of food are always placed on the glass tray for cooking. -
Page 9: Clock Setting
OPERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1.Clock Setting When the microwave oven is on,the oven will display "0:00", buzzer will ring once. 1) Press " CLOCK/PRE-SET " to choose 12-hour or 24-hour. 2) Turn "... - Page 10 3. Grill Cooking 1) Press the "GRILL/COMBI. " key once, and "G-1" display. 2) Press " GRILL/COMBI." for times or turn " " to select the grill power. Stop turning when "G-1" displays. 3) Press "START/+30SEC./CONFIRM " to confirm. 4)Turn " "...
- Page 11 1) Press the "CONVECTION " key once, "140" flash. 2) Keep pressing "CONVECTION" or turn " " to select the convection function. Note:the temperature can be chosen from 140 degrees to 230 degrees. 3) Press the " START/+30SEC./CONFIRM " to confirm the temperature. 4) Press the "...
-
Page 12: Pre-Set Function
5) Press "START/+30SEC./CONFIRM" to confirm; 6) Turn " " to adjust the cooking time of 7 minutes; 7) Press "START/+30SEC./CONFIRM" to start cooking. 8. Pre-set Function 1) Set the clock first. (Consult the instruction of clock setting.) 2) Input the cooking program. Three stages can be set . Defrosting should not be set in preset function.Auto menu can be set single stage only. - Page 13 Auto menu Chart Display Menu Weight(g) Power 100% Reheat 1 (about 230g) 2 (about 460g) 100% Potato 3 (about 690g) Meat 100% 100% Vegetable Fish 50(with water 450g) 100(with water 800g) Pasta 150(with water 1200g) 100% Soup A8 Cake Preheat at 180 degrees Pizza Chicken 1000...
-
Page 14: Defrost By Time
10. Defrost by W.T. 1) Press "W.T./TIME DEFROST" pad once,the oven will display "dEF1",. 2) Turn " " to select the weight of food.At the same time, "g" will lights, The weight should be 100-2000g. 3) Press "START/+30SEC./CONFIRM" key to start defrosting "... -
Page 15: Lock-Out Function For Children
15. Lock-out Function for Children Lock: In standby, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and " " indicator will light. LED will display current time or 0:00. Lock quitting: When locked, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released, and "... -
Page 16: Troubleshooting
Trouble shooting ,but vents of oven on a cool It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. - Page 17 B. Prepare the Cabinet. 1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet. 2. Make marks on the bottom plane of cabinet according to marks “a” of the template.
- Page 18 3. Remove the BOTTOM CABINET TEMPLATE, and fix the BOTTOM BRACKETS with SCREW A. C. Prepare the oven. 4. Fix SCRE W B on the UPPER AIR TUNNEL of the oven.
- Page 19 D. Install the oven. 5. Install the oven into the cabinet. Adjust the height of SCREW B to keep 1mm gap between the SCREW B and the top plane of cabinet. Make sure that the OVEN FEET are aligned with the grooves of brackets when install the oven into the cabinet.
