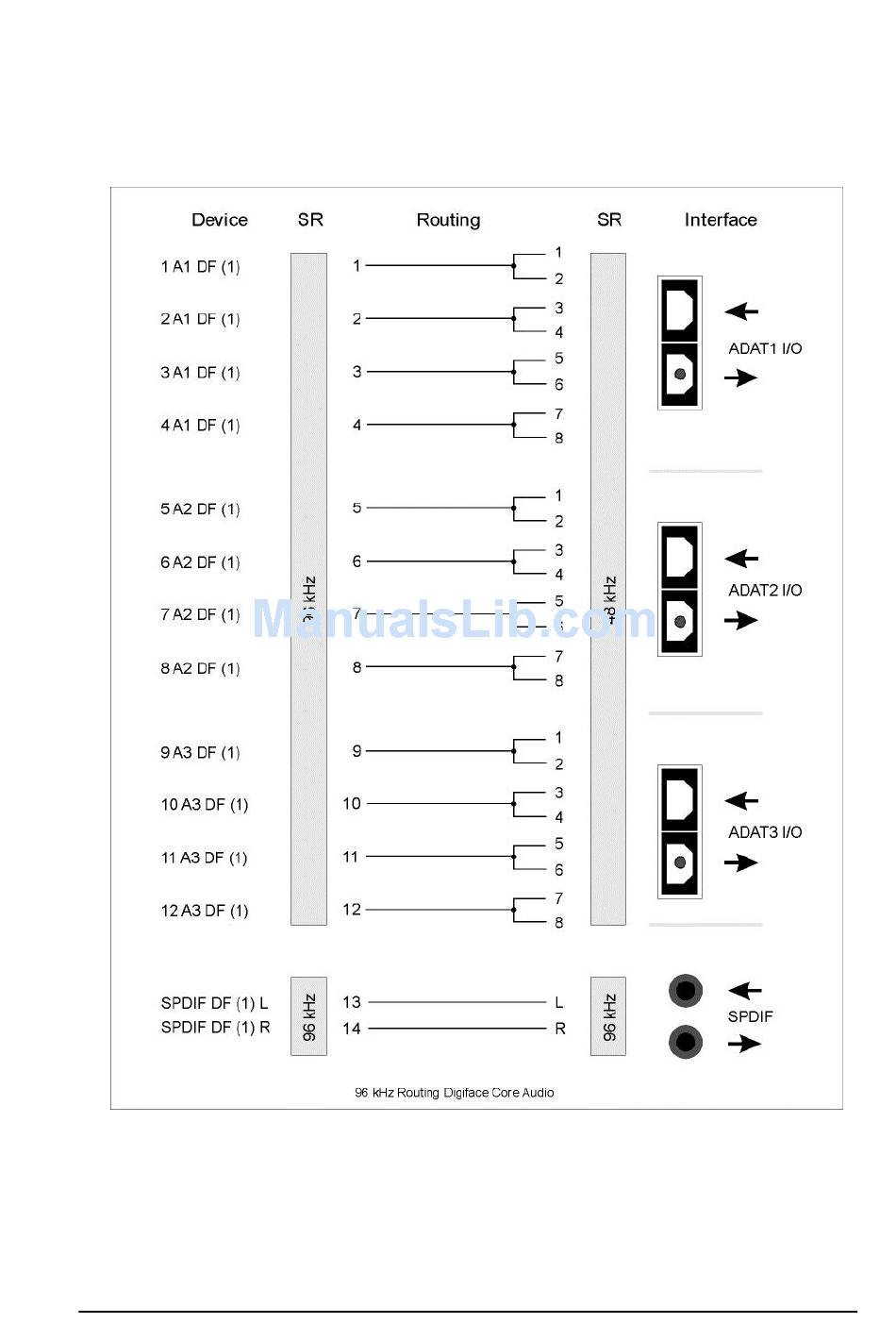

23. Diagram: Channel Routing at 96 kHz
This diagram shows the signal paths in double speed mode (88.2 / 96 kHz). The last four chan-
nels of the ADAT port have no function anymore in Core Audio, but are used by the hardware
to transmit data at double sample rate.
User's Guide HDSP System Digiface © RME
41
