Flex-a-Lite 50 Installation Instructions

Limited One-Year Warranty.
MOUNT FAN TO RADIATOR OR A/C CONDENSER-All
Installations:
INSTALLING THESE FANS IN FRONT OF THE RADIATOR
WILL RESULT IN A PUSHER FAN;
INSTALLING IT BEHIND THE RADIATOR WILL RESULT
IN A PULLER FAN. REGARDLESS, IN ALL INSTALLA-
TIONS, THE SIDE OF THE UNIT WITH THE FAN BLADES
EXPOSED SHOULD ALWAYS FACE THE FRONT OF THE
VEHICLE.
1) Determine whether the fan will be installed in FRONT of
the radiator or condenser (pusher) or BEHIND radiator or
condenser (puller).
2) Position fan on the radiator or A/C condenser where it
will have at least 3/4" clearance to any other object. Using a
small Phillips screwdriver, carefully spread the radiator fins
to allow the mounting bolts to pass through the radiator. Be
careful not to damage the radiator tubes.

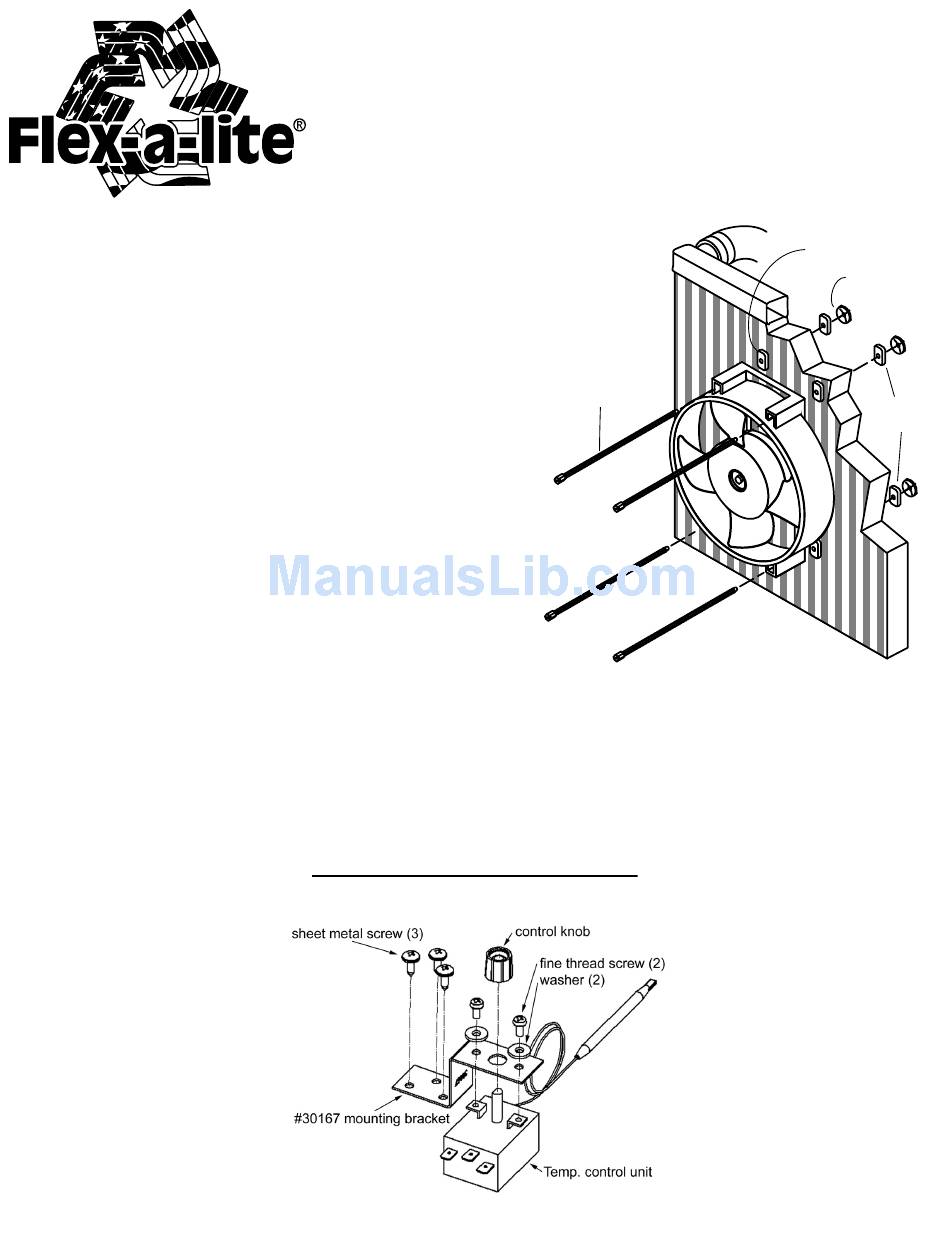

3) Fit 4 nylon bolts through the fan, and slip a rubber washer
over each bolt. See FIG. 1.
4) Fit the fan to the radiator, feeding all four screws through the radiator, and add a plastic washer to each bolt.
5) Push a nylon push-nut up each nylon bolt until snug.
6) Turn push nut clockwise until tight, then trim off excess bolt, leaving 1/4" exposed.
Adjustable Temperature Control Kit
50-55 Auxiliary Electra-Fan
Installation Instructions
(55 with out TEMP Control)
The Auxiliary Electra-Fan should be installed in accordance with
the following instructions.
Improper installation may result in premature failure and void the
Assembly & Installation Instructions
NYLON BOLT
FIGURE 1

Pusher Mode (in FRONT of radiator)

FAN
MOTOR
BLACK
BLUE
BUTT
CONNECTOR
FUSE HOLDER
20A
RING
CONNECTOR
POWER SOURCE (+)
(BATTERY*, STARTER
SOLENOID, ETC.)
FIGURE 2
Auxiliary Fan Wiring Diagram
* only when fan is wired with a manual switch or thermostatic controls
RUBBER WASHER
PUSH NUT
PLASTIC
WASHER
Manual Switch
(not included)
TO
GROUND (-)
