89-94 Mitsubishi Eclipse
Be sure the engine is cool before starting work on the car. For added safety, disconnect the battery to keep the fans from
coming on while working under the hood. Please read all instructions before starting the installation.
FAN INSTALLATION
1.
Unplug, unbolt and remove fans from radiator.
2.

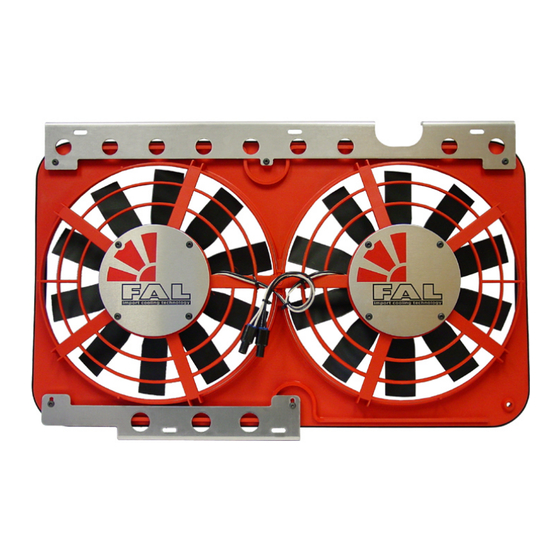

Mount the FAL Eclipse fan to the existing radiator points with brackets provided. Attach the large supplied bracket
to the top of the FAL fan shroud. Affix the smaller bracket to the lower left side of the FAL fan shroud. Both are
attached with the serrated phillips screws provided.
3.
The spacers and long screws provided are necessary to bolt the assembly to the radiator. The factory radiator
requires the four long spacers and one short spacer. If it is an aftermarket radiator, a different spacer combination
may be needed.
Washers
Long Screws

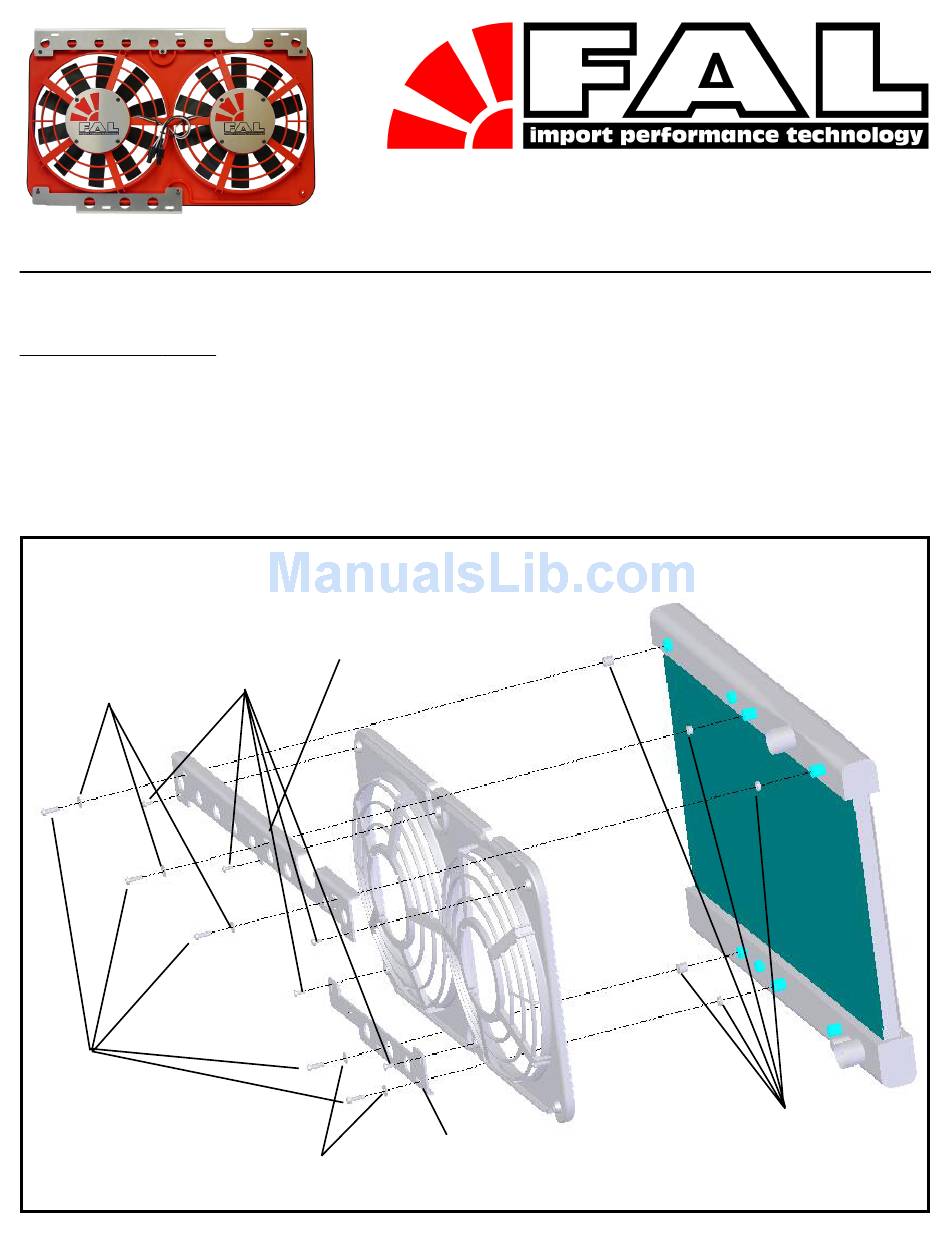

(Diagram A)
Large Bracket
Short Screws
Washers
Part #525
Electric Cooling Fan Installation Instructions
Diagram A
Small Bracket
Spacers (vary by
radiator)
rev.10-06-08
part no. 99749
Page 1 of 2
