Pump Module; Pump Module Parts List - Braun NL MILLENIUM 05 Series Service Manual

Part Numbers of Items Dedicated per Lift Model
Item Qty. Description
1 Pump Module (complete), 12 Volt, Rear
1 1 Plate, Backing / Mounting - Rear
2 1 Cover, Pump, 2-Piece - Back / Bottom
3 1 Cover, Pump - 2-Piece - Top / Front
Item Qty. Description
4 1 Pump Assembly (M268-0113) 12V-120G - Dual Relief / ARS (Includes Items 5 & 6)
5 1 Power Cable, Up Solenoid to Motor
6 1 Solenoid, Up - 4-Post - Trombetta (Flat Mount)
7 1 Diode Assembly, Up Solenoid
8 2 Nut, #10-32, Serrated Flange
9 2 Fitting, Male 7/16-20 O-Ring to Male 7/16-20 JIC 37°
10 1 Elbow, Female Swivel 7/16-20 JIC 37° to (2) Male 7/16-20 JIC 37°
11 1 Switch, Pressure
12 1 Control, Hand Pendant Assembly (See below for available options)
Control, Hand Pendant Assembly - Non-Shielded Cable - Straight tSee note below
12a -
Control, Hand Pendant Assembly - Shielded Cable - Straight tSee note below
12b -
Control, Hand Pendant Assembly - Shielded Cable - Coiled tSee note below
12c -
13 1 Control Board Assembly
14 8 Standoff, Snap-In
15 1 Switch, Push Button
16 1 Recepticle, Clip On
17 1 Lens, Threshold Warning - Red
18 1 Decal, Warning / Pressure Relief Valve (Not shown)
19 1 Spacer, Lens - NHTSA
20 1 Metal Ring Base - Lamp
21 1 Socket, Lamp
22 3 Screw, #8-32 x 1/2" Pan Head Phillips - Thread Cut
23 1 Bulb, Light
24 1 Diode, Green LED, Panel Mount
25 4 Rivet, Snap - .124" Hole x .197"/.236" Thick
26 2 Washer, 5/16" Flat
27 2 Bolt, 5/16-18 x 3/4", Nylock, Hex * See note below
28 2 Bolt, 5/16-18 x 1/2", Nylock, Hex * See note below
29 1 Cable, Ground
30 1 Washer, 5/16" External Tooth
31 1 Beeper, Continuous
32 1 Switch, Toggle
33 1 Decal, Lift Power - On/Off (Not shown)
34 1 Stud, Power Feed
Rubber Boot, Red tSee note below
35 1
36 1 Harness, Lift Interlock Connection
Wire Assembly, Lift Stowed Connection tSee note below
37 1
38 1 Pump Handle with Grip
39 3 Rivet, Pop, SD43BS - 1/8" - .13"/.19"
40 1 Plug, Window - Clear
41 1 Stud, Wing Head - 1/4 Turn
42 1 Retainer, Push On
43 1 Washer, Nylon, 1/4" I.D. x 11/16" O.D. x .030"
44 1 Clip, Pump Handle - Top
45 1 Clip, Pump Handle - Bottom
46 1 Decal, Manual Instructions - Public (Not shown )
47 1 Decal, Removal / Installaton - Pump Cover (Not shown)
48 1 Decal, Warning - Control Board Damage - ESD (Not shown)
49 1 Decal, Removal / Installation Pump Handle (Not shown)
50 1 Decal, Installation & Warning - Hydraulic Pressure Switch (Not shown)
51 1 Decal, Dual Relief Adjustment (Not shown)
52 1 Decal, LCD Lift Codes (Not shown)
53 1 Cable, Pump Module Power Hookup (Not shown)
54 1 Harness, Power - Stow Interlock (Not shown - see Wiring Diagram)
55 1 Harness, Interlock / Lighting (Not shown - see Wiring Diagram)
56 1 Harness, Up / Down Solenoid (Not shown - see Wiring Diagram)
57 1 Harness, Threshold Switch Extension (Not shown - see Wiring Diagram)
58 1 Harness, Hand Control - Pump Housing to Circuit Board (Not shown - see Wiring Diagram)
* Apply red #271 Thread Locker Loctite
the bolts when retrofitting an M268-0113 pump assembly. Loctite
number 11522-1.
t Indicates items available for replacement part purposes only. These items are not included with replacement pump
modules.
Page 22

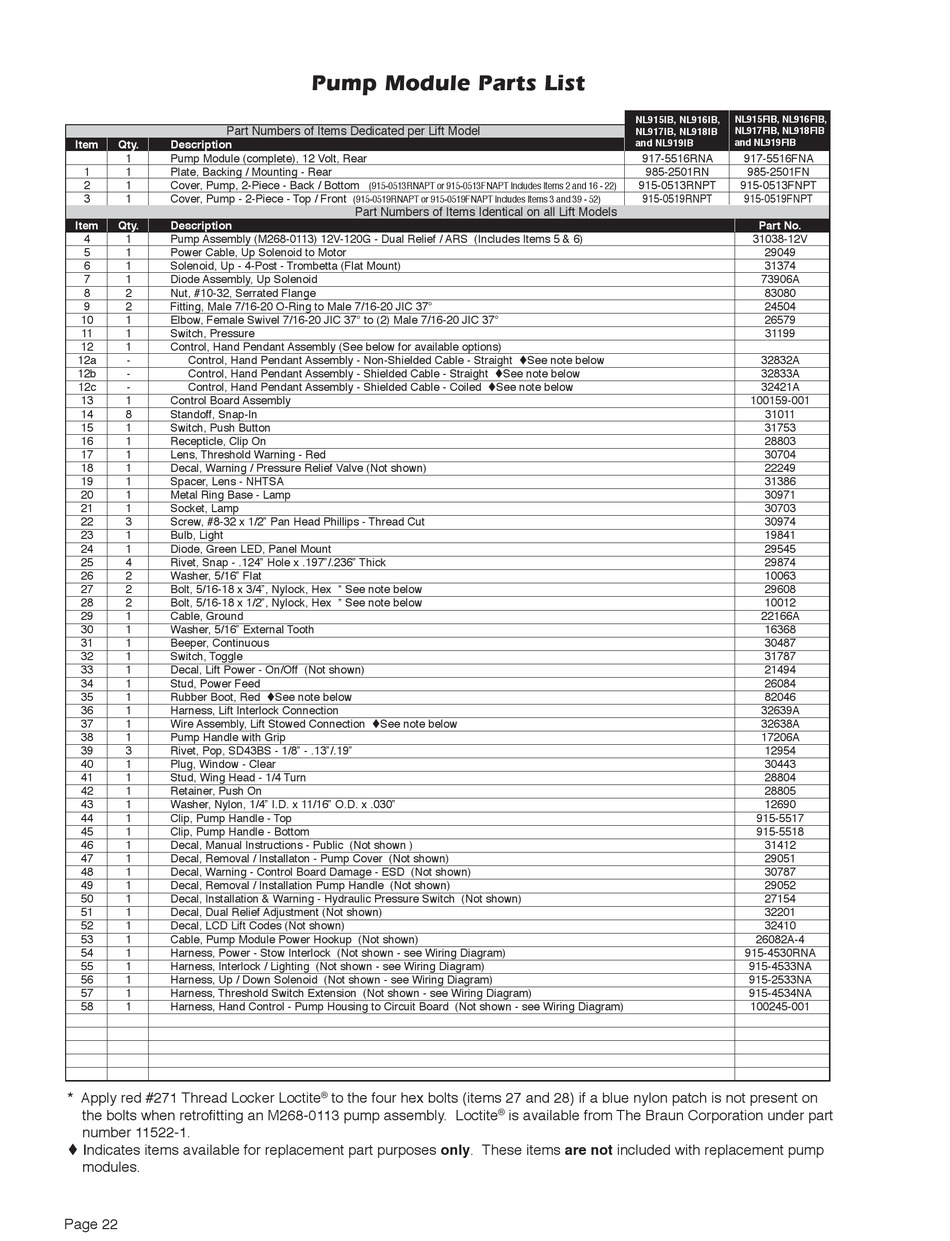

Pump Module Parts List

(915-0513RNAPT or 915-0513FNAPT Includes Items 2 and 16 - 22)
(915-0519RNAPT or 915-0519FNAPT Includes Items 3 and 39 - 52)
Part Numbers of Items Identical on all Lift Models
® to the four hex bolts (items 27 and 28) if a blue nylon patch is not present on
NL915IB, NL916IB,
NL917IB, NL918IB
and NL919IB
917-5516RNA
985-2501RN
915-0513RNPT
915-0519RNPT
® is available from The Braun Corporation under part
NL915FIB, NL916FIB,
NL917FIB, NL918FIB
and NL919FIB
917-5516FNA
985-2501FN
915-0513FNPT
915-0519FNPT
Part No.
31038-12V
29049
31374
73906A
83080
24504
26579
31199
32832A
32833A
32421A
100159-001
31011
31753
28803
30704
22249
31386
30971
30703
30974
19841
29545
29874
10063
29608
10012
22166A
16368
30487
31787
21494
26084
82046
32639A
32638A
17206A
12954
30443
28804
28805
12690
915-5517
915-5518
31412
29051
30787
29052
27154
32201
32410
26082A-4
915-4530RNA
915-4533NA
915-2533NA
915-4534NA
100245-001
