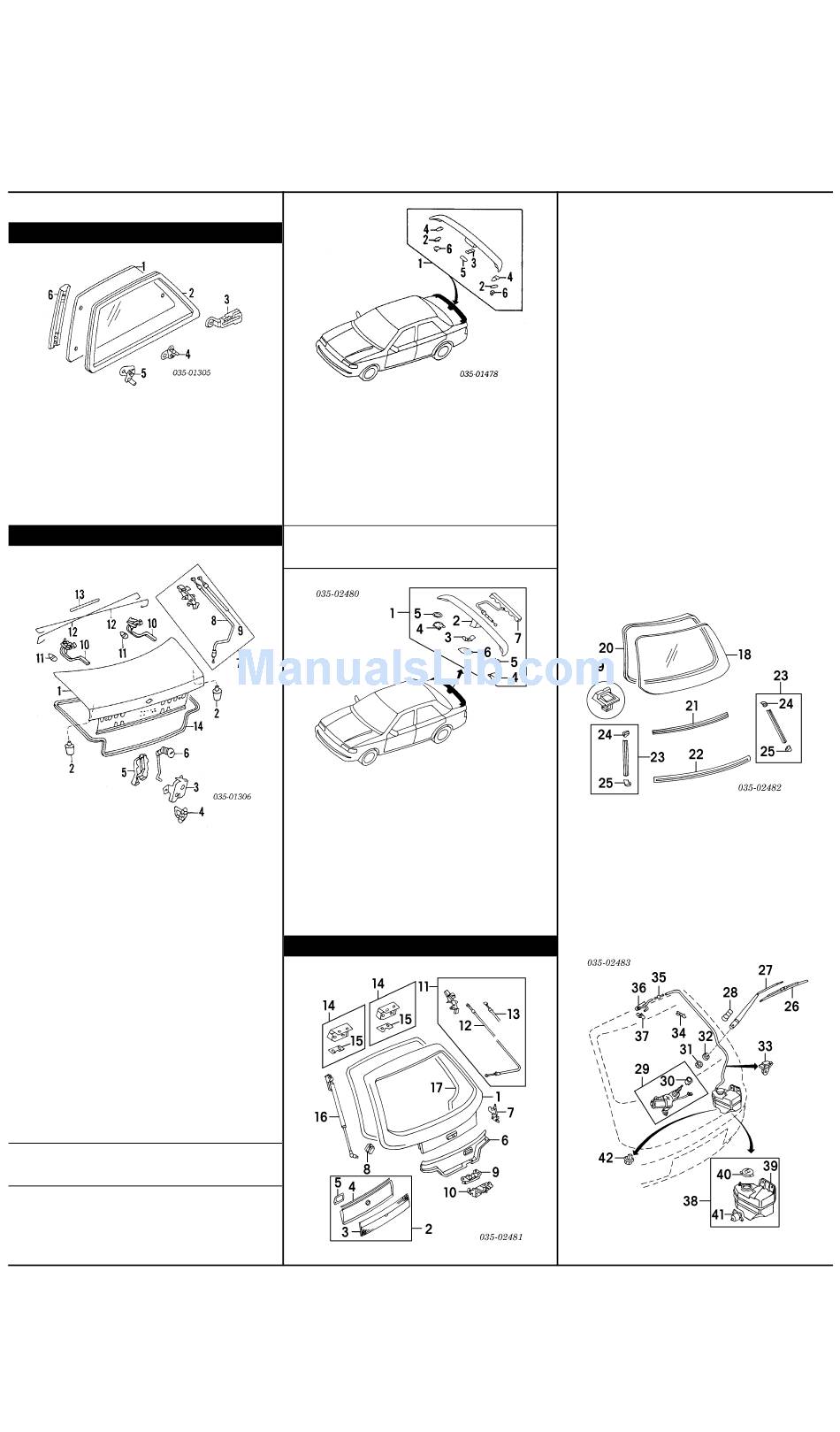

QUARTER GLASS

1 Glass, Quarter
Mazda
Clear R B467-72-511
L B467-73-511
Blue Tint R B469-72-511
L B469-73-511
2 W/Strip, Glass R B467-72-761B
L B467-73-761B
3 Latch, Glass R/L D001-72-310A
4 Hinge, Glass Upper R/L B499-72-210B
5 Hinge, Glass Lower R/L B499-73-210B
6 Moulding, Pillar R B467-50-F10
L B467-50-F20

LUGGAGE LID

1 Lid, Luggage
w/Spoiler BR70-52-610J
w/o Spoiler BR70-52-610J
Panel, Finish-See License Lamp Section
2 Rubber, Cushion R/L H001-56-801
Nameplate
"Mazda" BR70-51-710
"Protege"
USA BR72-51-720A
Canada N.A.
"S" TA01-51-761
3 Latch BR70-56-820
4 Striker, Latch GJ21-56-840C
5 Protector, Latch B455-56-823A
6 Cylinder & Key
To 8-1-92 BR70-76-230D
From 8-1-92 BB4E-76-230B
Fastener, Key Cylinder GJ21-56-902A
7 Cable Assy, Release BR71-56-850B
8 Cable, Trunk Lid¶ B456-56-870B
9 Cable, Fuel Lid¶ BR71-56-880
¶Included w/Release Cable Assy
10 Hinge R B455-52-710A
L B455-52-720A
11 Cushion, Hinge R/L B455-56-802A
12 Bar, Torsion
w/Rear Spoiler R B456-52-791B
L B456-52-792A
w/o Rear Spoiler R B456-52-791B
L B456-52-792A
13 Protector, Torsion Bar B130-56-805A
14 Weatherstrip, Lid B455-56-951B

REAR SPOILER

CANADA
1990-91
Illustration Located in Next Column
1 Spoiler Assy, Rear¶ N.A.
madpl1_g01_
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
Page 57—April 22, 2004—13:29:29—Version
¶Harbor Blue listed, Order by Application
DV Blue; DX Honey Blue; FZ Herbie Green;
PZ Brilliant Black; SQ Blaze Red; SS Coral Red;
UF Clear White; 1H Steel Gray MC;
IS Niagara Silver MC; 3L Silver Stone M;
5D Harbor Blue M; 6L Graceful Red MC;
6N Current Blue MC; 6S Excess Green MC
2 Bracket, Spoiler Side¶
3 Bracket, Spoiler Center¶
4 Protector, Spoiler Side¶
5 Protector, Spoiler Center¶
6 Fastener, Spoiler Side¶
¶Included w/Rear Spoiler Assy
1 Spoiler Assy, Rear¶
2 Support, Center¶
¶Bluish Green listed, Order by Application
3 Bracket, Spoiler (a)
Center
DV Bay Blue; E9 Deep Purple; J4 Passion Rose;
PZ Brilliant Black; SQ Blaze Red; UF Clear White;
Z1 Bluish Green M; 4Z Silent Silver; 5S Neat Green
6C Mighty Gray; 6M Elegant Beige; 6V Raspberry
Metallic; 6W Laguna Blue M; 6Y Sea Mist M
4 Stay, Spoiler (a)
5 Protector, Spoiler (a)
6 Gasket, Spoiler (a)
7 Lamp, High Mount Stop (a)
(a) Included w/Rear Spoiler Assy
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
R/L N.A.
N.A.
R/L N.A.
N.A.
R/L N.A.
REAR SPOILER
CANADA
1992-95
N.A.
N.A.
N.A.
R/L N.A.
R/L N.A.
N.A.
N.A.
LIFTGATE
MAZDA 323/PROTEGE 1990-94
1 Shell, Gate
w/Spoiler BS22-62-020M
w/o Spoiler
w/Rear Wiper BR94-62-020K
w/o Rear Wiper BR93-62-020K
Nameplate
"Mazda"
Light Gold B455-51-711A-71
Light Gray B455-51-711A-85
Dark Gray B455-51-711A-86
"Mazda 323"
Light Gold BR93-51-721-71
Light Gray BR93-51-721-85
Dark Gray BR93-51-721-86
"S" G263-51-761
2 Panel Assy, Finish
Outer 90-91 BR93-50-850A
92-95 BB5A-50-850A
3 Lens¶ 90-91 BR93-50-852A
92-95 B596-50-852
4 Protector¶ 90-91 B467-50-853
92-95 B596-50-853
5 Gasket¶ B467-50-855
¶Included w/Outer Finish Panel Assy
6 Panel, Inside Trim (a) B467-68-960A-48
(a) Blue listed, Order by Application
19 Red; 32 Gray Taupe; 48 Blue; 65 Off Black
7 Bracket, Trim Panel B467-68-928A
8 Wedge, Liftgate R/L B467-62-681
9 Latch, Gate B468-62-310A
10 Striker, Latch B467-62-361
11 Cable Assy, Release BR94-56-850
12 Cable, Trunk Lid¶ BR94-56-870
13 Cable, Fuel Lid¶ BR94-56-880
¶Included w/Release Cable Assy
Cylinder & Key BR95-76-260A
14 Hinge Assy, Liftgate R/L D001-62-210C
15 Gasket, Hinge¶ R/L B001-62-212
¶Included w/Liftgate Hinge Assy
16 Stay, Liftgate R 8AB4-62-620
L 8AB4-63-620
17 Weatherstrip B467-62-761
18 Glass, Liftgate
Mazda
Clear
w/Rear Defroster B468-63-930
w/o Rear Defroster B467-63-931
Blue Tint B469-63-930
19 Spacer, Glass R/L B455-50-891A
20 Dam, Glass B456-50-899A
21 Mldg, Reveal Upper 8AB3-50-611
22 Mldg, Reveal Lower 8AB1-50-614
