MAZDA 323/PROTEGE 1990-94
LIFTGATE Cont'd
Insert, Wiper¶
To 8-1-94 B499-67-331
From 8-1-94 B467-67-331
¶Included w/Wiper Blade Assy
27 Arm, Wiper B467-67-421
28 Cover, Arm B093-76-641
29 Motor Assy, Wiper B467-67-450A
30 Bushing, Inner¶ B467-67-402
¶Included w/Wiper Motor Assy
31 Bushing, Outer B467-67-407
32 Cap, Seal B093-67-366A
33 Clip, Hose H001-67-057
34 Clip, Pipe (2) B499-67-519
35 Joint, Hose DB05-67-502
36 Protector, Hose LA05-67-506
37 Nozzle, Washer B467-67-510
38 Tank Assy, Washer B467-67-480C
39 Tank, Washer¶ B467-67-481C
40 Cap, Tank¶ UB39-51-815
41 Pump, Washer¶ 8532-76-672
¶Included w/Washer Tank Assy
42 Valve, Washer Tank
To 2-1-94 B467-67-492C
From 2-1-94 B01A-56-054
REAR SPOILER
1992-95
1 Spoiler Assy, Rear¶
To 11-3-93 B603-51-9N0A-Z1
From 11-3-93 B603-51-9N0B-Z1
¶Bluish Green listed, Order by Application
2 Clip, Spoiler Outer (a) R/L B471-51-9N3
3 Clip, Spoiler Center (a) B467-51-9N2
4 Protector, Spoiler Otr (a)
Right B603-51-9N5A
Left B603-51-9N6A
5 Protector, Center (a) B603-51-9N4
6 Lamp, High Mount Stop (a)
To 8-1-94 B603-51-580C
From 8-1-94 B603-51-580D
7 Protector, Lamp (a) R/L B603-51-582
(a) Included w/Rear Spoiler Assy

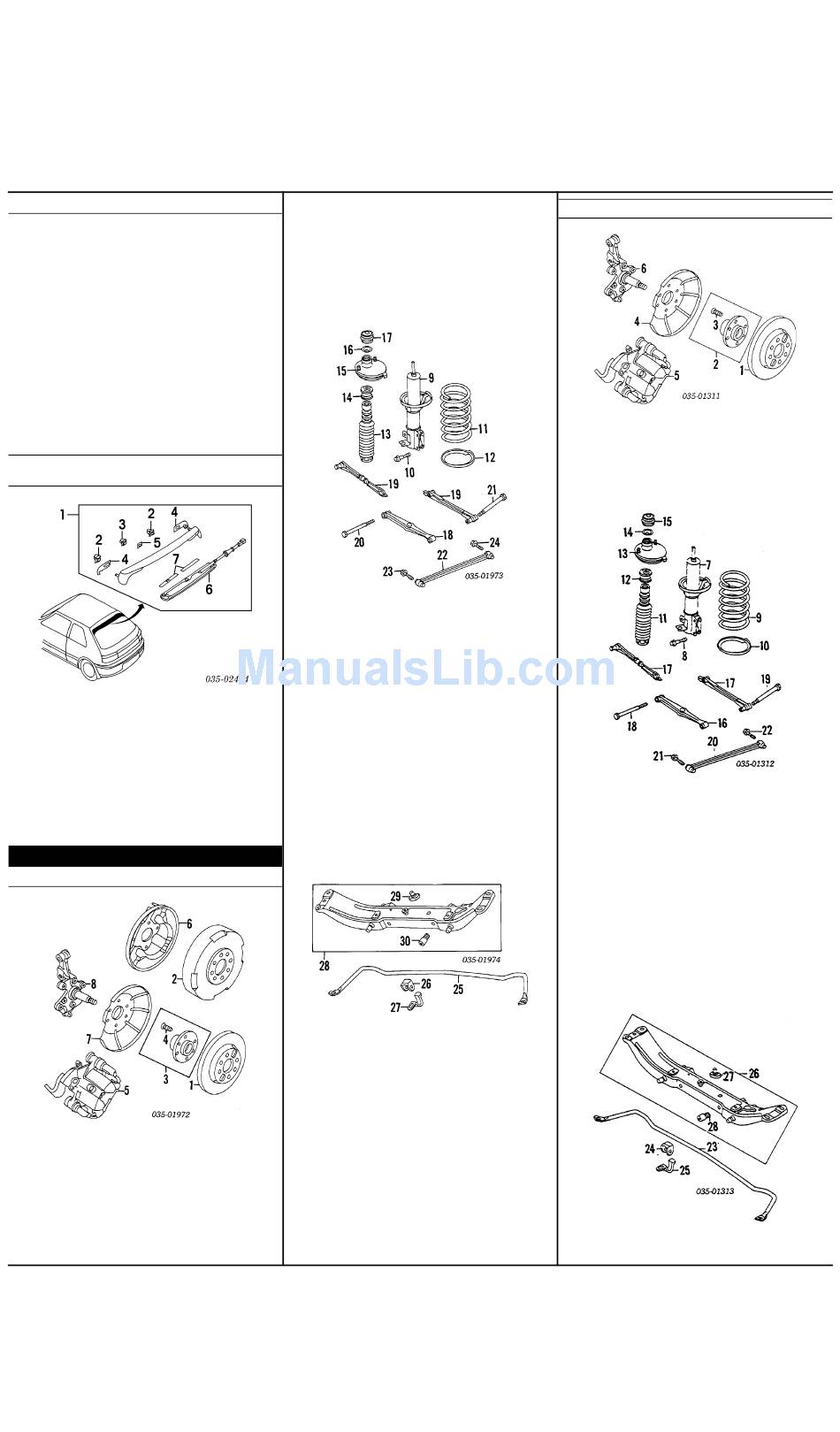

REAR SUSPENSION

FWD
1 Rotor, Brake R/L BB4C-26-251C
2 Drum, Brake 90-91 R/L BR70-26-251
92-95 R/L D102-26-251
3 Hub Assy, Wheel R/L B455-26-15XA
4 Bolt, Hub¶ R/L B01Y-33-062
¶Included w/Wheel Hub Assy
5 Caliper, Brake 90-91 R BRY6-26-98ZR
L BRY6-26-99ZR
92-95 R BRY6-26-98ZR
L BRY6-26-99ZR
6 Plate, Backing
Drum Brakes 90-91 R BR71-26-280
L BR71-26-290
58
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
Page 58—April 22, 2004—13:29:31—Version
7 Shield, Splash
Disc Brakes
Hose, Brake
Drum Brakes
Disc Brakes
8 Spindle, Hub
Drum Brakes
Disc Brakes
9 Strut Assy
1.6L Eng
1.8L Eng
USA
Std Duty
Hvy Duty
Canada
10 Bolt, Strut (2/Side)
11 Spring, Coil¶
¶Order by Application
12 Seat, Rubber
13 Stopper, Bumper
14 Seat, Spring
15 Insulator, Mounting
16 Bushing
17 Cap, Mount
18 Link, Lateral Front
19 Link, Lateral Rear
Bolt, Lateral Link
20 Front
21 Rear
22 Link, Trailing
Bolt, Trailing Link
23 Front
24 Rear
25 Bar Assy, Stabilizer
1990-91
1.6L Eng
1.8L Eng
Rear Drum Brakes
Rear Disc Brakes
1992-95
Std Duty
Hvy Duty
Bolt, Stabilizer¶
Spacer, Stabilizer¶
¶Included w/Stabilizer Bar Assy
26 Bushing, Bar
Rear Drum Brakes
Rear Disc Brakes
27 Bracket, Bar
28 Crossmember Assy, Suspension 90-91 B455-28-400D
29 Stopper, Rubber¶
30 Protector, Crossmember¶
¶Included w/Suspension Crossmember Assy
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
92-95 R B596-26-280B
L BC1D-26-290A
90-91 R/L BR74-26-261A
92-95 R/L B613-26-261A
R/L B455-43-810C
R/L B461-43-980C
R B455-26-111D
L B455-26-115D
R B461-26-111B
L B461-26-115B
R B455-28-700
L B455-28-900
R BR70-28-700A-9U
L BR70-28-900A-9U
R B625-28-700A
L B625-28-900A
R/L N.A.
R/L 9YA0-21-231C
R/L BR70-28-011
R/L B455-28-0A3
R/L B455-28-111A
R/L B455-28-340A
R/L B595-28-390A
R/L B455-28-343A
R/L B455-28-019
R BR70-28-620
L BR70-28-630
R/L BR70-28-600
R/L B528-28-112A
R/L B455-28-113
R/L BR70-28-200B
R/L B455-28-114A
R/L B455-28-116
B457-28-10X
B457-28-10X
B461-28-10X
B455-28-10X
B462-28-10X
R/L G030-28-157
90-91 R/L G030-28-158
92-95 R/L B455-28-157
R/L BW0A-28-156A
R/L B461-28-156A
90-91 R/L B461-34-155A
92-95 R/L E016-28-15YB
92-95 E016-28-400A
R/L B455-28-809
R/L B455-28-8A2A
AWD
1 Rotor, Brake R/L BB4C-26-251C
2 Hub Assy, Wheel R/L B01A-33-060A
3 Bolt, Hub¶ R/L B01Y-33-062
¶Included w/Wheel Hub Assy
4 Shield, Splash R/L B530-26-261A
5 Caliper, Brake R BRY6-26-98ZR
L BRY6-26-99ZR
6 Knuckle R B531-26-110B
L B531-26-120C
7 Strut R B530-28-700
L B530-28-900
8 Bolt, Strut (2/Side) R/L 9YA0-21-231C
9 Spring, Coil¶ R/L BA1C-28-011
¶Order by Application
10 Seat, Rubber R/L B455-28-0A3
11 Stopper, Bumper R/L B455-28-111A
12 Seat, Spring R/L B455-28-340A
13 Insulator, Mounting R/L B595-28-390A
14 Bushing R/L B455-28-343A
15 Cap, Mount R/L B455-28-019
Link, Lateral
16 Front R B528-28-620
L B528-28-630
17 Rear R/L B528-28-600A
Bolt, Lateral Link
18 Front R/L B528-28-112A
19 Rear R/L B455-28-113
20 Link, Trailing R BR70-28-200B
L BR70-28-250
Bolt, Trailing Link
21 Front R/L B455-28-114A
22 Rear R/L B455-28-116
23 Bar Assy, Stabilizer B528-28-10X
Bolt, Stabilizer¶ R/L G030-28-157
