Wall-Mounting The Chassis - Cisco VG224 - Analog Phone Gateway Quick Start Manual

Screws are included for attaching the brackets to the chassis, but not for installing the chassis in a rack or on a wall.
Note
You need four additional machine screws to install the chassis in a rack. Use the screw size required by your rack.

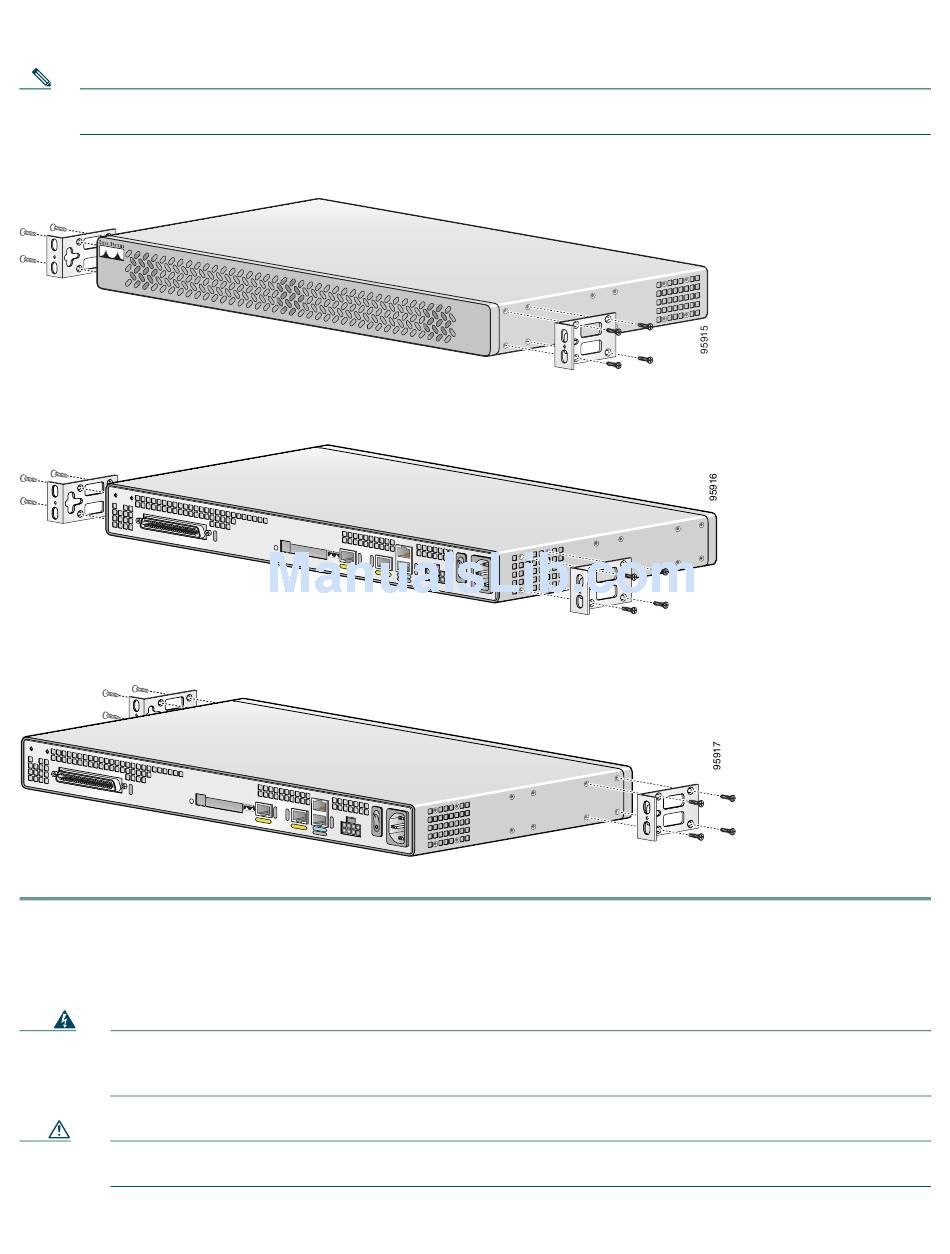

Figure 5 19-Inch Rack-Mounting with Front Panel Forward
Figure 6 19-Inch Rack-Mounting with Rear Panel Forward
Figure 7 Telco 19-Inch Rack-Mounting with Rear Panel Forward
Install the chassis in the rack.
Step 2

Wall-Mounting the Chassis

The following warning applies only when the unit is wall-mounted:
Warning This unit is intended to be mounted on a wall. Please read the wall mounting instructions carefully before
beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a
hazardous situation to people and damage to the system. Statement 248
You can wall-mount the unit with either the right or left side facing up; however, the front and rear panels must be
Caution
vertical.
8
VG 22 4- 24
FX S
VG 22 4- 24
FX S
CI SC O VG
22 4
