AEG COMPETENCE D4101-4 Installation And Operating Instructions Manual
Built-in electric multifunction double oven
Hide thumbs
Also See for COMPETENCE D4101-4:
Related Manuals for AEG COMPETENCE D4101-4
Summary of Contents for AEG COMPETENCE D4101-4

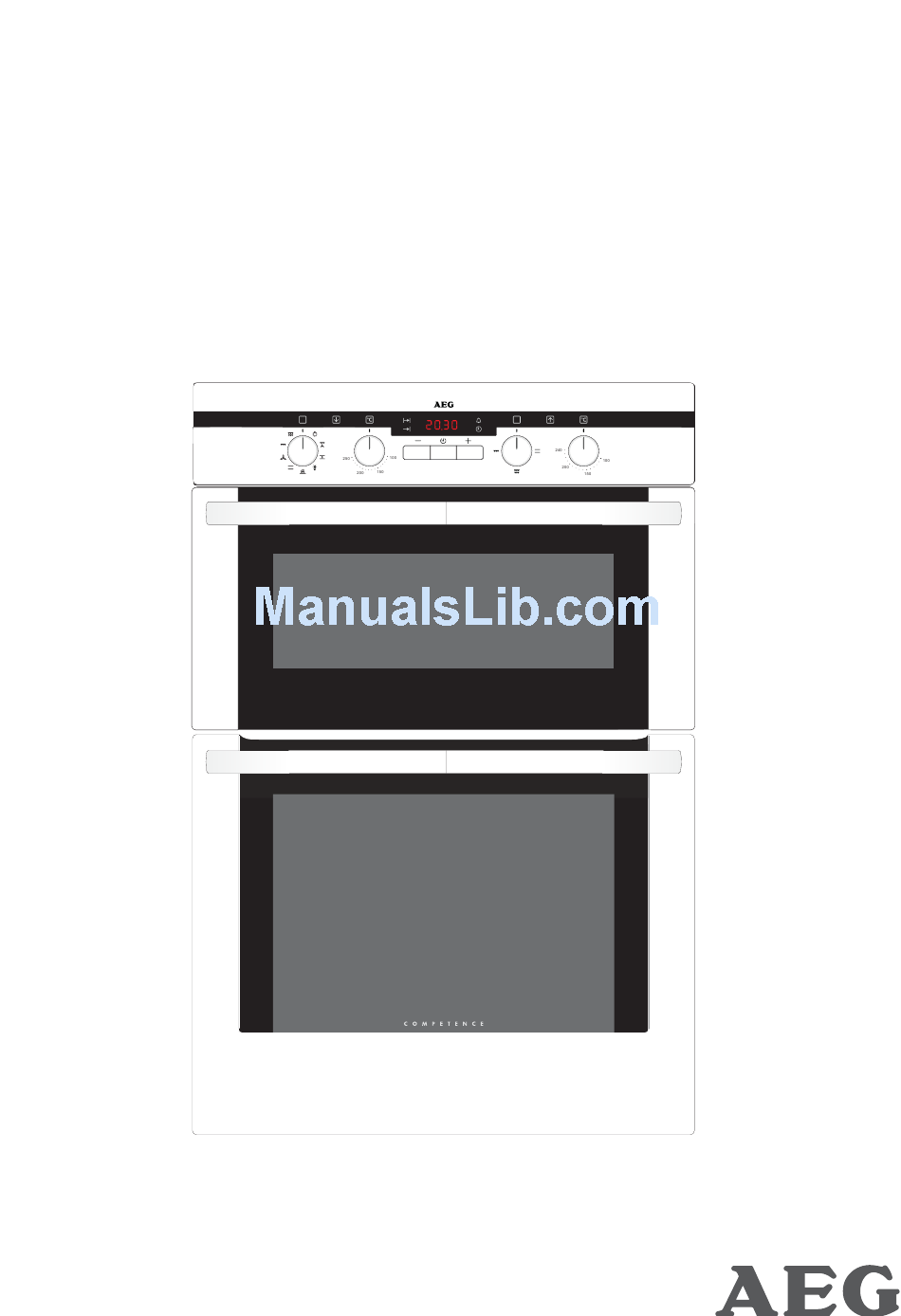

- Page 1 COMPETENCE D4101-4 Built-in Electric Multifunction Double Oven Installation and Operating Instructions PERFEKT IN FORM UND FUNKTION...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the information in this book contact the Customer Care Department. -
Page 3: Table Of Contents
CONTENTS FOR THE USER Important Safety Information Description of The Appliance Getting To Know Your Appliance Grill And Oven Furniture Telescopic Runners Before Using The Appliance Rating Plate Preparing To Use Your Appliance When First Switching On The Cooling Fan For The Controls Control Panel Indicator Neon(s) Pop In Pop Out Controls Condensation And Steam... -
Page 4: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE BUILT-IN ELECTRIC MULTIFUNCTION DOUBLE OVEN Electronic Timer Control Panel Second Oven/Grill Main Oven Your built-in oven comprises of a conventional second oven and dual grill in the top compartment. The multifunction oven can be automatically controlled by the electronic timer. -
Page 5: Getting To Know Your Appliance
GETTING TO KNOW YOUR APPLIANCE THE CONTROL PANEL - Multifunction Main Oven Selector Oven Light Rotitherm Roasting Speedcook Fan Controlled Defrosting Pizza Conventional Cooking Ventitherm ® Fan Operated Cooking Single Economy Grill Full Width Dual Grill - Main Oven Selector Indicator Neon - Main Oven Temperature Control - Main Oven Temperature Indicator Neon - Electronic Timer... -
Page 6: Grill And Oven Furniture
GRILL AND OVEN FURNITURE The following items of oven furniture have been supplied with the appliance:- 1 grill pan 2 grill pan handles 1 grill pan grid 1 straight shelf (for grilling and second oven cooking) 2 straight shelves (for main oven cooking) TELESCOPIC RUNNERS Your appliance may be fitted with telescopic runners... -
Page 7: Before Using The Appliance
BEFORE USING THE APPLIANCE RATING PLATE This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable). The appliance must be protected by a suitably rated fuse or circuit breaker. -
Page 8: Electronic Timer
ELECTRONIC TIMER COOK TIME END TIME COUNTDOWN TIME DECREASE CONTROL SELECTOR CONTROL G INCREASE CONTROL NOTE: The time of day must be set before the main oven will operate manually. 1. HOW TO SET THE TIME OF DAY The oven has a 24 hour clock. When the electricity supply is first switched ON, the display will show 12.00 and the 'Time' ( neon will flash as Fig. - Page 9 TO CANCEL THE COUNTDOWN If you change your mind and want to cancel the 'Countdown', press the Selector Control button until the 'Countdown' ( ) indicator neon flashes and then the decrease control ( - ) until 0.00 shows in the display as Fig.
- Page 10 B) TO SET THE TIMER TO SWITCH OFF ONLY i) Ensure the electricity supply is switched ON and that the correct time of day is displayed, e.g. 10.00am as Fig. 9. ii) Set the main oven controls to the required function and temperature.
-
Page 11: Automatic Cooking
6. THINGS TO NOTE · In the event of an interruption of the electricity supply, the timer will reset itself to zero, and all programming will be cancelled. 7. AUTOMATIC COOKING It is advisable to leave food in the oven for as short a time as possible before automatic cooking. -
Page 12: Full Width Dual Grill
FULL WIDTH DUAL GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 13: The Grill Pan And Handles
THE GRILL PAN AND HANDLES The grill pan is supplied with removable handles. To attach the handles, place the wirework under the cut out in the pan so that the metal plate hooks over the top of the grill pan. Ensure the handles are positively located. -
Page 14: Grilling Chart
· Preheat the grill on full setting for a few minutes to seal meat or for toasting. setting and the shelf position as necessary during cooking. · The food should be turned over during cooking as required GRILLING CHART FOOD SHELF Bacon Rashers Adjust... -
Page 15: Second Oven
SECOND OVEN The second oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet and savoury flans or quiche. -
Page 16: Hints And Tips
HINTS AND TIPS · Arrange the shelves in the required positions before switching the oven ON. Shelf positions are counted from the bottom upwards. · There should always be at least 2.5cm (1”) between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings etc. -
Page 17: Second Oven Cooking Chart
SECOND OVEN COOKING CHART FOOD Biscuits Bread Bread rolls/buns Cakes: Small & Queen Sponges Victoria Sandwich Madeira Rich Fruit Christmas Gingerbread Meringues Flapjack Shortbread Casseroles: Beef/Lamb Chicken Convenience Foods Fish Fish Pie (Potato Topped) Fruit Pies, Crumbles Milk Puddings Pasta Lasagne etc. Pastry: Choux Eclairs, Profiteroles... -
Page 18: Ventitherm ® Fan Operated Cooking
VENTITHERM ® FAN OPERATED COOKING The fan oven is particularly suitable for cooking larger quantities of food. The advantages of fan oven cooking are: PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. preheating however, you may need to add an extra 5 –... -
Page 19: Using The Telescopic Runners (Where Fitted)
USING THE TELESCOPIC RUNNERS (where fitted) 1. Ensure the telescopic runners are pushed back into the oven cavity before fitting the shelf. 2. Holding the front edge of the shelf with both hands, place the rear shelf forms over the telescopic runners. -
Page 20: Conventional Cooking
CONVENTIONAL COOKING This form of cooking gives you the opportunity to cook without the fan in operation. It is particularly suitable for dishes which require extra base browning such as pizzas, quiches and flans. Gratins, lasagnes and hotpots which require extra top browning also cook well in the conventional oven. For best results cook on one level. -
Page 21: Hints And Tips
HINTS AND TIPS · Single level cooking gives best results. If you require more than one level of cooking use the fan oven function. · The middle shelf allows for the best heat distribution. To increase base browning simply lower the shelf position. To increase top browning, raise the shelf position. -
Page 22: Main Oven Cooking Chart
MAIN OVEN COOKING CHART The oven temperatures are intended as a guide only. temperatures by 10°C to suit individual preferences and requirements. VENTITHERM ® FAN OPERATED Food Biscuits Bread Casseroles Cakes: Small & Queen Sponges Madeira Rich Fruit Christmas Fish shelves are Fruit Pies and Crumbles Milk Puddings... -
Page 23: Roasting Chart
ROASTING CHART INTERNAL TEMPERATURES – Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C MEAT Beef/ Beef boned Mutton/Lamb Pork/Veal/Ham Chicken Turkey/Goose Duck Pheasant Rabbit The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. -
Page 24: Main Oven Full Width Dual Grill
MAIN OVEN FULL WIDTH DUAL GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 25: Hints And Tips
HINTS AND TIPS · Most foods should be placed on the grid in the grill pan to allow maximum circulation of air to lift the food out of the fats and juices. · Adjust the grid and grill pan runner position to allow for different thicknesses of food. -
Page 26: Pizza
PIZZA This setting can be used for foods such as pizza where base browning and crispness are required. The lower elements operate in conjunction with the oven fan. USING PIZZA · Pop out and turn the main oven multifunction selector to Pizza. ·... -
Page 27: Speedcook
SPEEDCOOK Speedcook is ideal for quick preheating of the oven before selecting an alternative cooking function. It can also be used for cooking chilled and frozen convenience foods without the need for preheating. COOKING TIMES Cooking times for convenience foods should be the same or slightly quicker than those stated on the packaging. This may vary depending on the dish and the quantity of food being cooked. -
Page 28: Rotitherm Roasting
ROTITHERM ROASTING Rotitherm Roasting offers an alternative method of cooking food items normally associated with conventional grilling. Rotitherm Roasting helps to minimise cooking smells in the kitchen and allows you to grill in the main oven with the oven door closed. With the exception of toast and rare steaks you can Rotitherm Roast all the foods you would normally cook under a conventional grill. -
Page 29: Hints And Tips
· A temperature range of 140°C - 220°C is suitable for most foods. Be prepared to make suitable adjustments during cooking to suit individual requirements. If Rotitherm Roasting on more... -
Page 30: Fan Controlled Defrosting
FAN CONTROLLED DEFROSTING This main oven function enables you to defrost most foods without heat faster than some conventional methods as the oven fan circulates air around the food. It is particularly suitable for delicate frozen foods which are to be served cold e.g. -
Page 31: Care And Cleaning
CARE AND CLEANING BEFORE CLEANING ALWAYS ALLOW THE COOLING FAN TO COOL THE APPLIANCE DOWN BEFORE SWITCHING OFF AT THE ELECTRICITY SUPPLY. CLEANING MATERIALS Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer. -
Page 32: Cleaning Inside The Ovens
CLEANING INSIDE THE OVENS The vitreous enamel coating in the ovens can be cleaned using normal oven cleaners or aerosol oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards. Aerosol cleaners must not come into contact with elements or the door seal as this may cause damage. -
Page 33: To Remove The Inner Glass
TO REMOVE THE INNER GLASS 1. Fully open the oven door. 2. Firmly grasp the rear edge of the inner glass panel with both hands. 3. Push the glass panel towards you until it clears the hinge location points at the rear. 4. -
Page 34: Cleaning The Grill And Oven Furniture
CLEANING THE GRILL AND OVEN FURNITURE All removable parts, except the grill pan handle can be washed in the dishwasher. The grill pan, grill pan grid, and oven shelves may be cleaned using a soap impregnated steel wool pad. Soaking first in hot soapy water will make cleaning easier. -
Page 35: Something Not Working
SOMETHING NOT WORKING Please carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call. In-guarantee customers should make sure that the checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. -
Page 36: Service And Spare Parts
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls. For Customer Service in Ireland please contact us at the address below: Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland... -
Page 37: Guarantee Conditions
· The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products. · This guarantee relates to you and cannot be transferred to another user. -
Page 38: Technical Details
TECHNICAL DETAILS Voltage: 230-240 Volts AC 50Hz Wattage: 5.6-6.1kW Height: 897 mm Width: 592 mm Depth: 563 mm (excluding handles and knobs) Weight: 59kg This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 39: Installation Instructions
INSTALLATION INSTRUCTIONS WARNINGS · This appliance must be installed by a qualified electrician/competent Safety may be impaired if installation is not carried accordance instructions. · This appliance must be earthed. · Do not remove the screws from the earth tab extending from the oven mains terminal block (Fig. -
Page 40: Choice Of Electrical Connection
CHOICE OF ELECTRICAL CONNECTION · There are three possible ways to connect your appliance. In each case the appliance should be operated using at least 6mm PVC insulated. Please choose from the most appropriate after reading the different methods:- a) By connecting the appliance to a cooker point (having a double pole isolating switch with at least 3mm contact separation in all poles and neutral) and protected with a fuse or miniature... -
Page 41: Recommended Cabinet Dimensions
RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES) Cross section through cabinet showing oven positioned Fig. 3 Built In Installation... -
Page 42: How To Finish Unpacking
HOW TO FINISH UNPACKING · Place packed appliance next to the space in which it will be installed. · Remove the appliance packing except for bottom tray which should be left in position until the appliance is ready to be fitted into its cabinet. NOTE: It is imperative that the appliance is left in the base to protect both the appliance and the floor. -
Page 43: Connecting To The Mains Terminal
CONNECTING TO THE MAINS TERMINAL Warning: This appliance must be earthed. · We recommend you use a new length of 6mm twin core and earthed cable to ensure your safety. · Make connection as shown in Fig. 7 by proceeding as follows:- ·... -
Page 44: Fitting Into The Cabinet
FITTING INTO THE CABINET IMPORTANT: Ensure that the oven is switched off at the wall before any further work is carried out. · Using a tape measure establish the internal width of the cabinet. Refer to page 40 if greater than 565mm. - Page 45 NOTES...
- Page 46 NOTES...
- Page 47 NOTES...
- Page 48 This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed. 55 – 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ. TELEPHONE 0870 5 350350 www.aeg.co.uk Part Number: 311703900 © Electrolux plc 2004...
