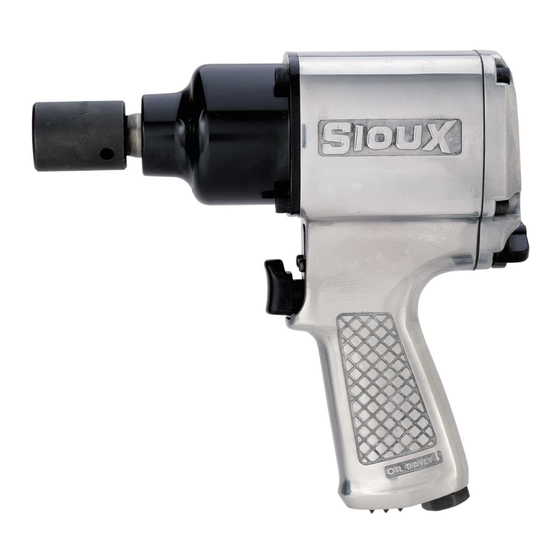

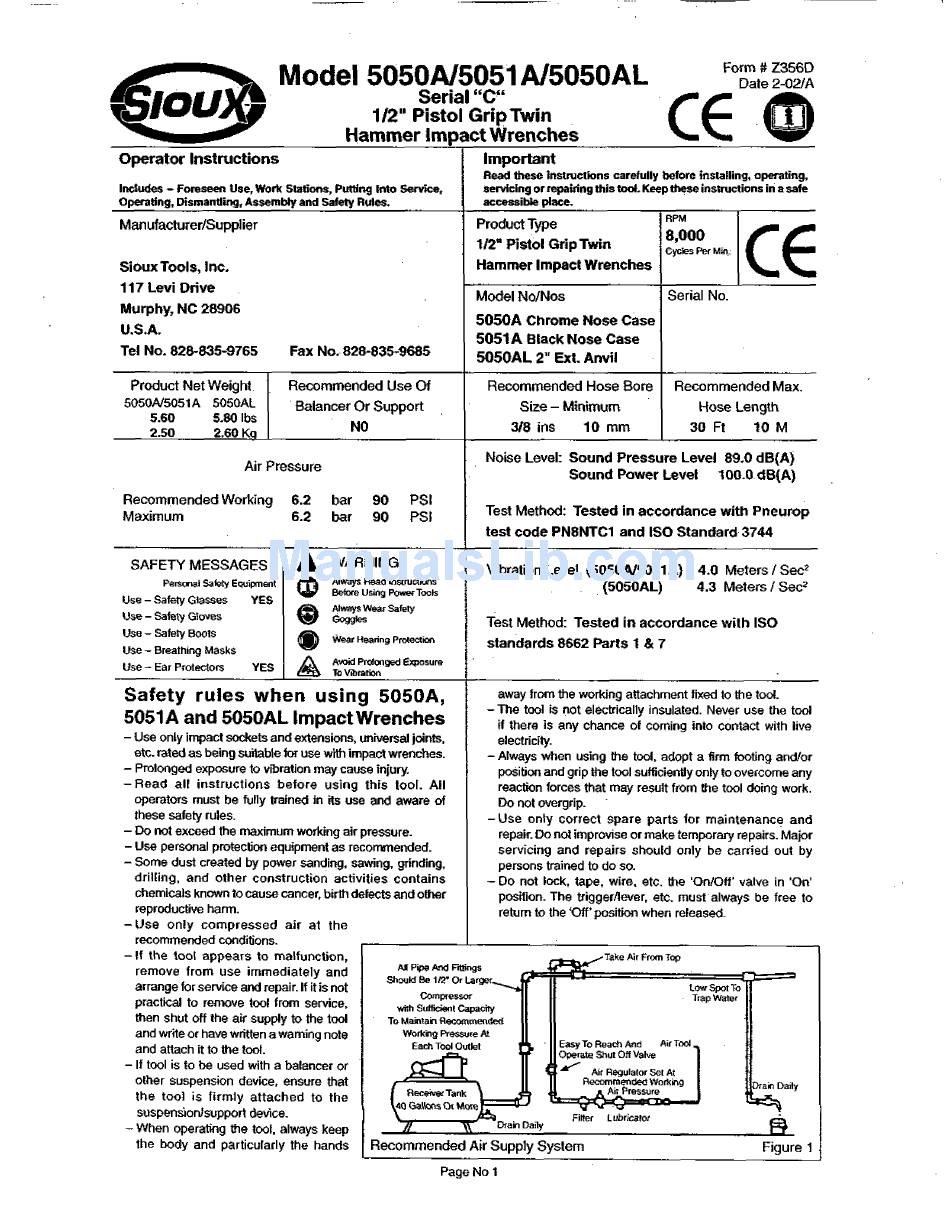

Sioux Tools 5050A Operator Instructions Manual

Model 5050N5051 Al5050AL
Form
# Z356D
Serial "C"
1 /2" Pistol Grip Twin
Hammer Imoact Wrenches
-
Operator Instructions Important
Read these instructions carefully before installing, operating,
Includes
-
Foreseen Use, Work
Stations,
Putting Into
Service,
servicing or repairing this
tool.
Keep
these
instructions in a safe
Operating, Dismantling, Assembly and Safety Rules.
accessible place.
f
Sioux
Tools,
Inc.
1 17 Levi
Drive
Murphy,
NC 28906
U.S.A.
Tel No. 828.835-9765 Fax
No. 828-835-9685
Produd
Type
1/2" Pistol Grip Twin
Hammer Impact Wrenches
Model No/Nos
5050A
Chrome
Nose
Case
5051 A Black Nose Case
5050AL
2" Ext. Anvil
Product Net Weight
5050N5051 A 5050AL
5.60 5.80 Ibs
2.50
2.60 Kq
Recommended Use Of
Balancer
Or Support
Air Pressure
Recommended Working
6.2
bar
90
PSI
Maximum 6.2 bar 90 PSI
Recommended
Hose
Bore
Size
-
Minimum
3/8ins 1 0 m m
Serial No.
Recommended Max.
Hose Length
30Ft 1 0 M
Noise Level:
Sound
Pressure Level 89.0 dB{A)
Sound Power t-evet 100.0 <tB{A)
Test
Method: Tested in accordance
with
Pneurop
test code PN8NTC1 and I S 0 Standard 3744
i
Page No 1
SAFETY MESSAGES
Peisonaf Safety Equipment
Use
-
Safety
Glasses
YES
Use
-
Safety Gloves
Use
-
Safety Boots
Use
-
Breathing
Masks
Use
-
Ear Protectors
YES
Safety rules
when
using 5050A,
5051A and 5050AL Impact Wrenches
-
Use only
impact sockets and extensions, universal joints,
etc. rated
as
being suitable far use with impact wrenches.
-
Prolonged exposure to vibration may cause injury.
-Read
all instructions before using this toot. Ail
operators must be fuHy trained in its
use
and
aware
of
these safety rules.
-
Do
not exceed
the maximum working air pressure.
-
Use personal protection equipment as recommended.
-
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects and other
reproductive harm.
-Use only compressed air at
the
recommended conditions.
away from the
working
attachment fixed to the tool.
-The tool is not electrically insulated. Never use the too)
if
there
is any chance of coming
into
contact
with live
electricity.
-Always when using the tool, adopt a firm footing
and/or
position and grip the tool sufficiently only
to
overcome any
reaction forces that
may
result
from
the tool
doing
work.
Do not overgrip.
-Use only
correct
spare parts for maintenance and
repair.
Do not improvise or
make
temporary repairs. Major
servicing and repairs should only
be
carried
out by
persons
trained to do so.
-Do not lock, tape, wire, etc. the 'On/Off' valve
in 'On'
position. The trigger/lwer, etc. must always be free
to
return to the 'Off' position
when released.
A
WARNING
Always Read Instructions
~efore using
-TOOIS
@
NGw-v
Wear
Hearing Protection
Amid
Prolonged Exposure
A
mmm
Vibration Level (5050A15051 A)
4.0 Meters
1
Sec2
(5050AL)
4.3 Meters I Sec2
Test Method: Tested in accordance with
I S 0
standards 8662 Parts 1 & 7
-If the tool appears to malfunction,
remove from use immediately and
arrange for service and repair. If it
is not
practical to remove too! from service,
then shut off the air supply to the tool
ft! Pipa
And
Fittings
swH
bw
and write
OF
have written a warning note
and attach it to the toot.
-
If tool is to be used with
a
balancer
or
other
suspension device,
ensure
that
the tool is firmly
attached to the
suspensiodsupport
device.
W h e n operating the tool, always keep
the body and particularly the hands Recommended Air Supply System
Figure 1
