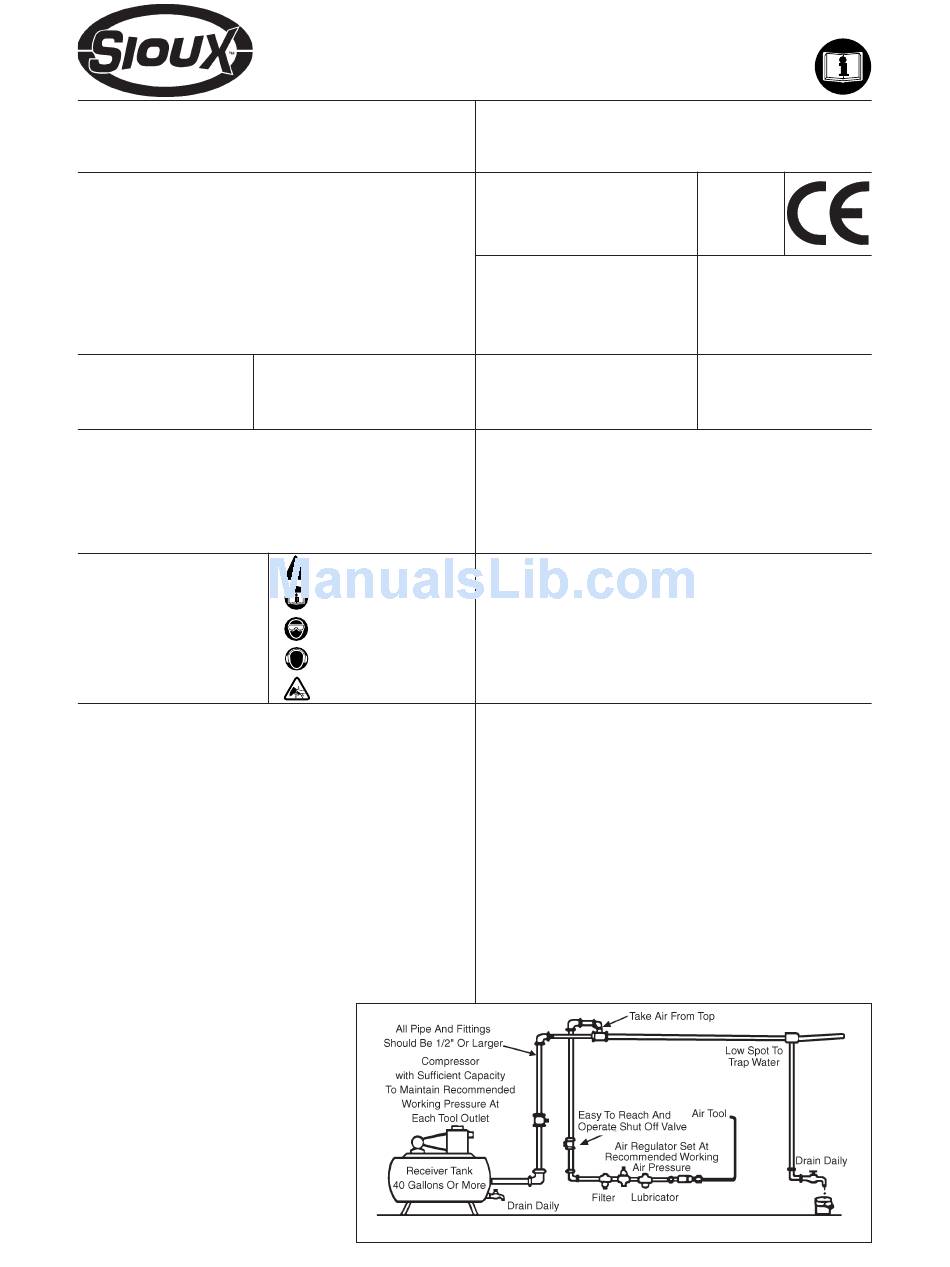

Sioux Tools 5000AL Instructions Manual

Operator Instructions
Includes – Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules.
Manufacturer/Supplier
Sioux Tools, Inc.
250 Snap-on Drive
P.O. Box 1596
Murphy, NC 28906
U.S.A.
Tel No. 828-835-9765
Product Net Weight
6.00 (Std) 6.10 (2") lbs
2.75 (Std) 2.77 (2") Kg
Air Pressure
Recommended Working
Maximum
SAFETY MESSAGES
Personal Safety Equipment
Use – Safety Glasses YES
Use – Safety Gloves
Use – Safety Boots
Use – Breathing Masks
Use – Ear Protectors YES
Safety rules when using 5000A/5000AL/5000AP
Impact Wrenches
– Use only impact sockets and extensions, universal joints, etc. rated
as being suitable for use with impact wrenches.
– Prolonged exposure to vibration may cause injury.
– Read all instructions before using this tool. All operators must be
fully trained in its use and aware of these safety rules.
– Do not exceed the maximum working air pressure.
– Use personal protection equipment as recommended.
– Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains
chemicals known to cause cancer, birth defects and other
reproductive harm.
– Use only compressed air at the recommended conditions.
– If the tool appears to malfunction, remove from use immediately
and
arrange for service and repair. If it is not
practical to remove tool from service, then
shut off the air supply to the tool and write or
have written a warning note and attach it to
the tool.
– If tool is to be used with a balancer or other
suspension device, ensure that the tool is
firmly attached to the suspension/support
device.
– When operating the tool, always keep the
body and particularly the hands away from
the working attachment fixed to the tool.
– The tool is not electrically insulated. Never
use the tool if there is any chance of coming
into contact with live electricity.
– Always when using the tool, adopt a firm
Model 5000A/5000AL/5000AP
1/2" Pistol Grip Twin Hammer
Impact Wrenches
Fax No. 828-835-9685
Recommended Use Of
Balancer Or Support
N0
6.2 bar 90 PSI
6.2 bar 90 PSI
WARNING
Always Read Instructions
Before Using Power Tools
Always Wear Safety
Goggles
Wear Hearing Protection
Avoid Prolonged Exposure
To Vibration
Recommended Air Supply System
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
1/2" Pistol Grip Twin
Hammer Impact Wrenches
Model No/Nos
5000A
Std. Anvil
5000AL
2" Ext. Anvil
5000AP
Std. Pin Anvil
Recommended Hose Bore
Size – Minimum
3/8 ins 10 mm
Noise Level: Sound Pressure Level 97.0 dB(A)
Sound Power Level
Test Method: Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method: Tested in accordance with ISO
standards 8662 Parts 1 & 7
footing and/or position and grip the tool sufficiently only to
overcome any reaction forces that may result from the tool doing
work. Do not overgrip.
– Use only correct spare parts for maintenance and repair. Do not
improvise or make temporary repairs. Major servicing and repairs
should only be carried out by persons trained to do so.
– Do not lock, tape, wire, etc. the 'On/Off' valve in 'On' position. The
trigger/lever, etc. must always be free to return to the 'Off' position
when released.
– Always shut off the air supply to the tool and press the 'On/Off'
valve to exhaust the air from the feed hose before fitting, removing
or adjusting the working attachment fitted to the tool.
– Before using the tool, make sure that a shut off device has been
fitted to the air supply line and the position is known and easily
accessible so that the air supply to the tool can be shut off in an
emergency.
– Check hose and fittings regularly for wear.
Page No 1
Form # ZCE547
Date 2006June7/A
RPM
8,000
Cycles Per Min.
Serial No.
Recommended Max.
Hose Length
30 Ft 10 M
108.0 dB(A)
2
13 Meters / Sec
Figure 1
