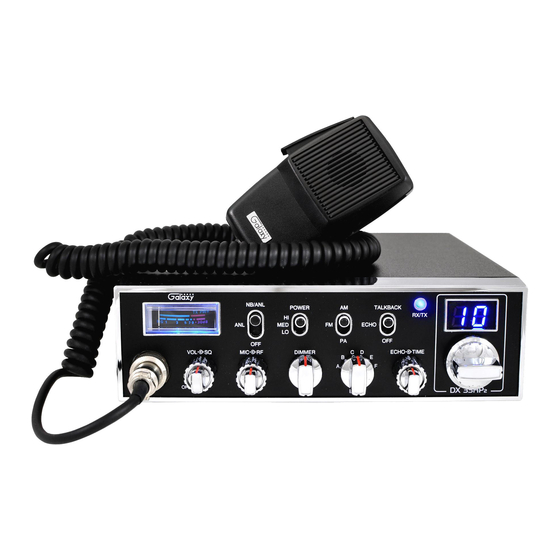

10 meter amateur mobile transceiver

Advertisement

DX 33HP
2
10 Meter Amateur Mobile Transceiver
OWNER'S MANUAL
Printed In Malaysia
A412308CDA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX 33HP2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Galaxy DX 33HP2

  • Page 1 DX 33HP 10 Meter Amateur Mobile Transceiver OWNER’S MANUAL Printed In Malaysia A412308CDA...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Specifications Page GENERAL Specification ........Frequency Range 28.145 to 28.575 MHz Frequency Control...
  • Page 3: Location

    RECEIVER Installation Sensitivity AM: 0.5 µV for 10 dB (S+N)/N at greater than ½ -watt of audio output. LOCATION FM: 1.0 µV for 20 dB (S+N)/N at greater than Plan the location of the transceiver and microphone bracket before starting the ½-watt of audio output.
  • Page 4: Ignition Noise Interference

    IGNITION NOISE INTERFERENCE Use of a mobile receiver at low signal levels is normally limited by the NOTE presence of electrical noise. The primary source of noise in automobile installations is from the generator and ignition system in the vehicle. Under most operating THE PROPER SETTING IS ACHIEVED WHEN THE SWR IS conditions, when signal level is adequate, the background noise does not present a 1.5 OR BELOW, AND WHEN IT HAS THE SAME READING...
  • Page 5: Control Functions

    6. DIMMER CONTROL. Controls the brightness of the meter lamp, channel Operation display digits and RX/TX LED. CONTROL FUNCTIONS 7. BAND SELECTOR. This switch is used to select the band. There are thirteen controls and three indicators on the front panel of your transceiver.
  • Page 6: Press-To-Talk Microphone

    REAR PANEL PRESS-TO-TALK MICROPHONE The receiver and transmitter are controlled by the press-to-talk switch on the microphone. Press the switch and the transmitter is activated, release switch to receive. When transmitting, hold the microphone two inches from the mouth and speak clearly in a normal “voice”.
  • Page 7 ALTERNATE MICROPHONES AND INSTALLATION For best results, the user should select a low-impedance dynamic type microphone or a transistorized microphone. Transistorized type microphones have a low output impedance characteristic. The microphones must be provided with a four-lead cable. The audio conductor and its shielded lead comprise two of the leads.
  • Page 8: Warranty

    We will repair and return your radio as soon as we can. We appreciate your microphone plug in the transceiver. choosing a Galaxy radio and we want you to be on the air as much as possible! Be sure to visit our web site at www.GalaxyRadios.com...
