Fluke 365 Calibration Manual

Detachable jaw true-rms clamp meter
Hide thumbs Also See for 365:
Table of Contents

Advertisement

Quick Links

See also: User Manual
365
Detachable Jaw True-rms Clamp Meter
Calibration Manual
December 2010
© 2010 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 365 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluke 365

Summary of Contents for Fluke 365

  • Page 1 Detachable Jaw True-rms Clamp Meter Calibration Manual December 2010 © 2010 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
  • Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.

  • Page 3: Table Of Contents

    Table of Contents Title Page Introduction......................1 Contact Fluke..................... 1 Safety Information ..................... 2 The Meter......................5 Specifications..................... 5 Electrical Specifications ................5 Mechanical Specifications................6 Environmental Specifications................ 6 Performance Tests....................7 Calibration Adjustment..................8 Required Equipment..................8 Adjustment Procedure ................... 8 Maintenance.......................
  • Page 4 Calibration Manual...
  • Page 5 List of Tables Table Title Page Symbols........................4 Performance Tests ....................7 Required Equipment....................8 Adjustment Procedure .................... 9 User Replaceable Parts................... 12...
  • Page 6 Calibration Manual...
  • Page 7 List of Figures Figure Title Page The Meter ....................... 5 Changing the Batteries ................... 12...
  • Page 8 Calibration Manual...

  • Page 9: Introduction

    Clamp Meter (the Product). Please see the 365 Users Manual for usage information. The Product is a true-rms hand-held, battery-operated product that features a detachable Jaw. Contact Fluke To contact Fluke, call one of the following telephone numbers: Technical Support USA: 1-800-44-FLUKE (1-800-443-5853) Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)

  • Page 10: Safety Information

    Calibration Manual Safety Information A Warning identifies conditions and actions that pose hazard(s) to the user. A Caution identifies conditions and procedures that could cause Meter damage, equipment under test damage, or permanent loss of data. Symbols used on the Product and in this manual are explained in Table 1. XWWarning To prevent possible electrical shock, fire, or personal injury: Use the product only as specified, or the protection supplied...
  • Page 11 If damaged, the Product may not be safe for use. Return the Product to Fluke for replacement of the seal. Do not exceed the Measurement Category (CAT) rating of the lowest rated individual component of a product, probe, or accessory.

  • Page 12: Symbols

     shuts down when the battery reaches 2.0 V. Do not dispose of this product as unsorted Conforms to relevant North municipal waste. Go to Fluke’s website for American Safety Standards. recycling information. IEC Measurement Category III CAT III equipment has protection against...

  • Page 13: The Meter

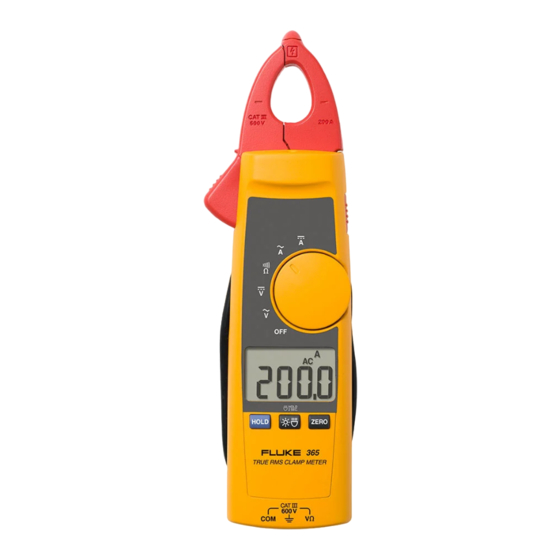

    Detachable Jaw True-rms Clamp Meter The Meter The Meter Clamp Meter fig_01_365.eps Figure 1. The Meter Specifications Electrical Specifications AC Current Range ............. 200.0 A Resolution ..........0.1 A Accuracy ..........2 % 5 digits (45 – 65 Hz) 2.5 % 5 digits (65 – 400 Hz) Crest Factor ..........

  • Page 14: Mechanical Specifications

    Calibration Manual Accuracy ..........1 % 5 digits Mechanical Specifications Size (L x W x H) ........225 x 65 x 46 mm Weight............. 275 g (including batteries) Jaw Opening ........... 18 mm Detachable Jaw Cable Length ....900 mm Environmental Specifications Operating Temperature......

  • Page 15: Performance Tests

    Detachable Jaw True-rms Clamp Meter Performance Tests Performance Tests XWWarning To prevent possible electrical shock, fire, or personal injury, do not perform the performance test procedures unless the Product is fully assembled. The following performance tests verify the complete operation of the Product and check the accuracy of each function against the Product’s specifications.

  • Page 16: Calibration Adjustment

    The equipment listed in Table 3 is required for calibration adjustment. Table 3. Required Equipment Equipment Required Characteristics Recommended Model Calibrator 4.5 digit resolution Fluke 55xxA Calibrator Wired coil 20 turns Power Supply +3.0 V Common power supply or a 2 x AA battery container...

  • Page 17: Adjustment Procedure

    Detachable Jaw True-rms Clamp Meter Calibration Adjustment 8. See Table 4 fand apply each required output from the Calibrator to the Product. 9. Wait for the reading to become stable. 10. Push to confirm and advance to each next step. 11.
  • Page 18 Calibration Manual Table 4. Adjustment Procedure (cont.) Test Product Action (Switch Reading Position) C012 Calibrator output 10A @ 50 HZ, allow the reading to stabilize, wait 4 seconds, Push  AC Amps C013 Calibrator output 2.5A @ 50 HZ, allow the reading to stabilize, wait 4 seconds, Push ...

  • Page 19: Maintenance

    Detachable Jaw True-rms Clamp Meter Maintenance Maintenance Clean the Product WCaution To prevent possible damage to the Product or to equipment under test, do not use abrasive cleaners. They will damage the case. To clean the Product, use a cloth with a mild cleaning solution. Battery Replacement XW Warning To prevent possible explosion, fire, or personal injury, replace...

  • Page 20: User Replaceable Parts

    Figure 2. Changing the Batteries User Replaceable Parts User replaceable parts are listed in Table 5. Table 5. User Replaceable Parts Fluke Part Description Number BATTERY,PRIMARY,ZN- 376756 MNO2,1.5V,2.24AH,15A,LR6,ALKALINE,AA,14X50MM,BULK 3837209 FLUKE-365-2008,BATT DOOR 3858245 SOFT CASE,BLACK/YELLOW,FLUKE-365 3622684 MANUAL,USER MANUAL, FLUKE-365 855742 TL75-4201,TEST LEADS 3890706 LABEL,CALIBRATION SEAL,F362/365...
