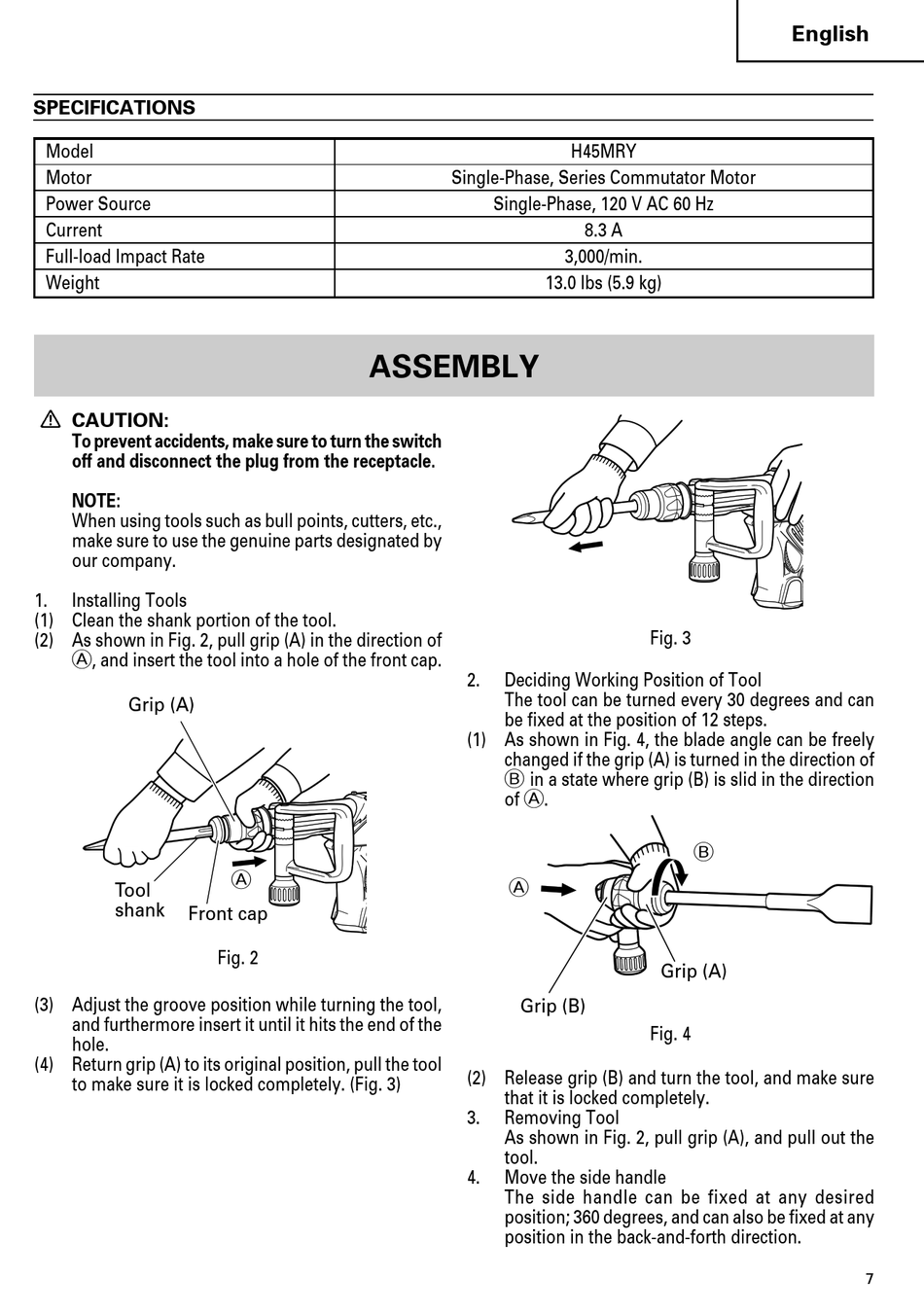

SPECIFICATIONS

Model
Motor
Power Source
Current
Full-load Impact Rate
Weight
CAUTION:
To prevent accidents, make sure to turn the switch
off and disconnect the plug from the receptacle.
NOTE:
When using tools such as bull points, cutters, etc.,
make sure to use the genuine parts designated by
our company.
1. Installing Tools
(1) Clean the shank portion of the tool.
(2) As shown in Fig. 2, pull grip (A) in the direction of
A, and insert the tool into a hole of the front cap.
Grip (A)
Tool
shank
Front cap
(3) Adjust the groove position while turning the tool,
and furthermore insert it until it hits the end of the
hole.
(4) Return grip (A) to its original position, pull the tool
to make sure it is locked completely. (Fig. 3)

ASSEMBLY

A
Fig. 2
H45MRY
Single-Phase, Series Commutator Motor
Single-Phase, 120 V AC 60 Hz
8.3 A
3,000/min.
13.0 lbs (5.9 kg)
2. Deciding Working Position of Tool
The tool can be turned every 30 degrees and can
be fixed at the position of 12 steps.
(1) As shown in Fig. 4, the blade angle can be freely
changed if the grip (A) is turned in the direction of
B in a state where grip (B) is slid in the direction
of A.
A
Grip (B)
(2) Release grip (B) and turn the tool, and make sure
that it is locked completely.
3. Removing Tool
As shown in Fig. 2, pull grip (A), and pull out the
tool.
4. Move the side handle
The side handle can be fixed at any desired
position; 360 degrees, and can also be fixed at any
position in the back-and-forth direction.
English
Fig. 3
B
Grip (A)
Fig. 4
7
