Electrolux EOG 7330 Owner's Manual

Electrolux EOG 7330 Owner's Manual

Built in gas oven and grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model EOG 7330

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOG 7330 and is the answer not in the manual?

Questions and answers

Related Manuals for Electrolux EOG 7330

Summary of Contents for Electrolux EOG 7330

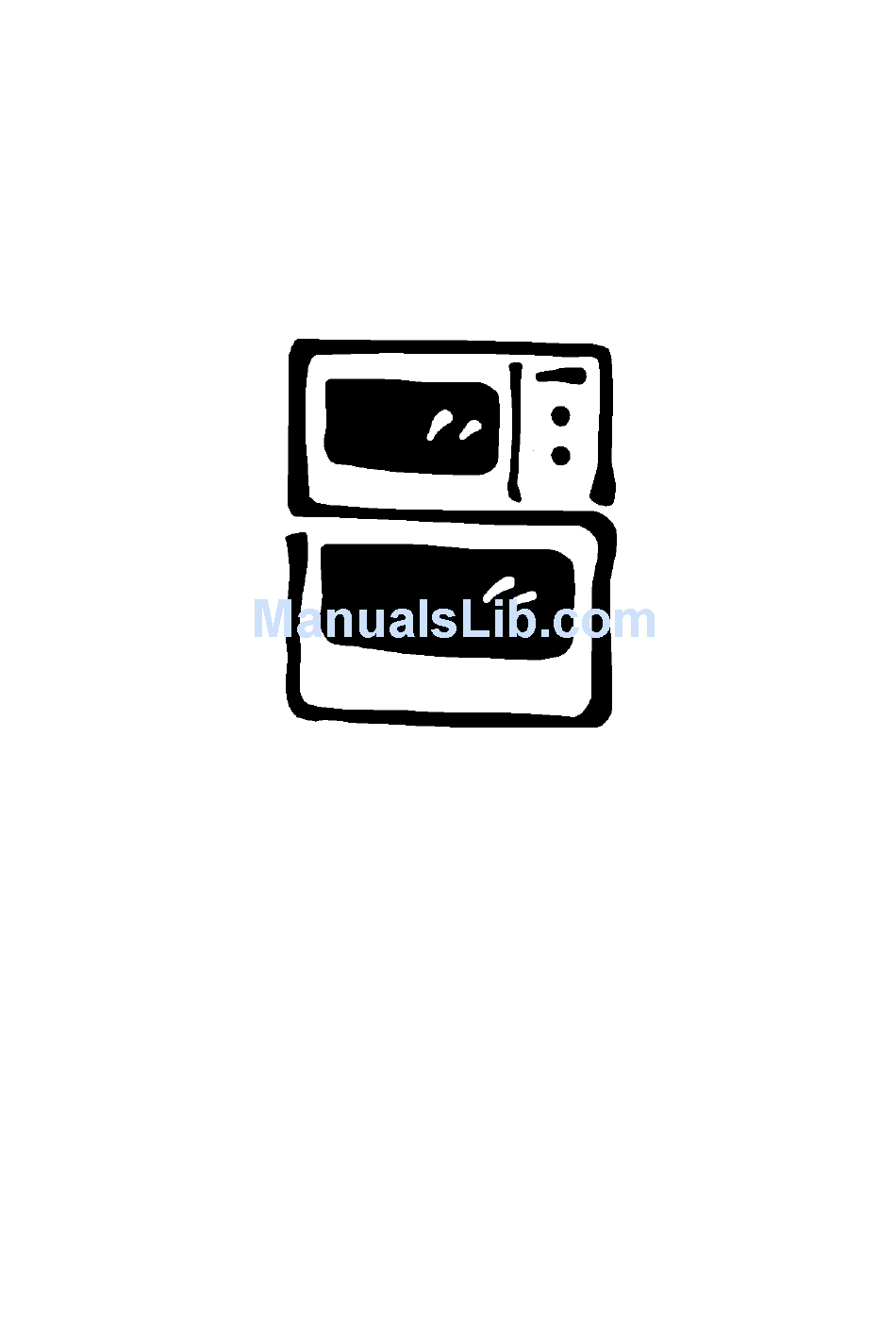

  • Page 1 Model EOG 7330...

  • Page 2: Important Safety Information

    Never place plastic or any other material which may melt in the oven. Do not stand too close to the oven or grill while in use as warm air will exhaust from the grill cavity and the vents on the front frame of the appliance.

  • Page 3: Table Of Contents

    Glass Panels To Remove the Outer Door Glass To Replace the Outer Door Glass To Clean the Inner Glass Door Cleaning the Grill and Oven Compartments To Remove the Wirework Runners Cleaning the Shelves, Wirework Runners and Grill/Oven Furniture Cooking to Reduce Soilage...

  • Page 4: Description Of The Appliance

    WARNING: THIS APPLIANCE MUST BE EARTHED AND PROTECTED BY A 3 AMP FUSE Your built-in appliance comprises of a gas oven and grill. The oven also features a Slowcook setting which allows you to cook a range of foods over a long period of time at a low temperature.

  • Page 5: Getting To Know Your Oven

    GETTING TO KNOW YOUR OVEN The Control Panel Electronic Timer Grill Control Oven Control...

  • Page 6: The Cooling Fan For The Controls

    The cooling fan may run on after the oven or grill is turned off for a period of time to cool the appliance down. It may continue to switch on and off until the appliance is cool.

  • Page 7: Before Using The Appliance

    If the fuse keeps failing there is a fault in the oven which must be put right. Do not use a fuse with a rating higher than 3 amps. Do not carry out other electrical work.

  • Page 8: Preparing To Use Your Appliance

    However, always stand back from the appliance when opening the oven door to allow any build up of steam or heat to be release. If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets.

  • Page 9: Grill And Oven Furniture

    GRILL AND OVEN FURNITURE The following items of oven furniture have been supplied with the appliance. 1 grill pan 1 grill pan handle 1 grill pan grid 1 meat tin 1 shelf for grilling 2 shelves for Oven cooking...

  • Page 10: The Electronic Timer

    E DECREASE CONTROL F SELECTOR CONTROL G INCREASE CONTROL NOTE: The time of day must be set before the oven will operate manually. 1. HOW TO SET THE TIME OF DAY The oven has a 24 hour clock. When the electricity supply is first switched ON, the display will show 12.00 and the 'Time Of Day'...
  • Page 11 09.00 a.m., the latest 'End Time' would be 08.59 a.m. the next day. vii) Set the oven control to the required temperature. The oven indicator neon should be OFF. NOTE: When the automatic timed period starts,...
  • Page 12 2 minutes. To stop the sound press any of the three buttons, as Fig. 13. The display will return to the time of day. iii) Turn off the oven controls. correct time The oven AUTOMATIC The 'Cook time' Fig.9...

  • Page 13: Automatic Cooking

    7. AUTOMATIC COOKING It is advisable to leave food in the oven for as short a time as possible before automatic cooking. Always ensure commercially prepared food is well within its use by date and that home prepared food is fresh and of good quality.

  • Page 14: The Grill

    6. · If the oven door is closed whilst the grill burner is lit, it will go out. The burner will automatically re- light when the door is opened.

  • Page 15: The Grill Shelf

    The shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected. When using the grill in position 2 and 3 the shelf must be withdrawn before the pan can be located or removed.

  • Page 16: Hints And Tips

    · The grill compartment can be used to warm plates when the oven is on. Do not place plates to warm under the grill when it is lit as this may damage the plates. ·...

  • Page 17: Grilling Chart

    GRILLING CHART The chart below gives recommended cooking times and shelf positions. Remember that these are a guide and should be adjusted to suit personal taste. Note: Shelf positions are counted from the top downwards. FOOD Bacon Rashers Beefburgers Chicken Joints Chops - Lamb Pork Fish –...

  • Page 18: The Oven

    The oven is ideal for baking, roasting and casseroles. The oven also includes a Slowcook feature. It is important to refer to the oven cooking chart as a guide to shelf positions and gas mark settings as these may differ from previous appliances you may have used.

  • Page 19: To Fit The Oven Shelves

    The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected. HINTS AND TIPS ·...

  • Page 20: Roasting

    For economy leave the door open for the shortest possible time, particularly when placing food into a pre-heated oven. ROASTING For best results we recommend open roasting using minimal fat or oil to prevent splashing. It is not necessary to cover meat or poultry or wrap...

  • Page 21: Oven Cooking Chart

    The Gas mark settings are intended as a guide only. It may be necessary to increase or decrease the settings to suit individual preferences and requirements. Note: Shelf positions are counted from the top and the oven downwards. FOOD Viennese Biscuits...

  • Page 22: Slowcook Feature

    HOW TO USE SLOWCOOK 1. Open the oven door. 2. Push in the oven control and turn it to gas mark 9. When the burner has lit there will only be small flames at first.

  • Page 23: Care And Cleaning

    Regularly wipe over the control panel and oven doors using a soft cloth well wrung out in warm water to which a little liquid detergent has been added.

  • Page 24: Cleaning The Outer And Inner Door Glass Panels

    The outer grill and oven door glass panels are removable for cleaning. TO REMOVE THE OUTER DOOR GLASS 1. Open the grill or oven door slightly to gain access to the two cross head screws on the top of the oven door.

  • Page 25: To Replace The Outer Door Glass

    5. Tighten the screws positively with a Pozidrive screwdriver before closing the oven door. DO NOT attempt to use the oven without the glass being in place. TO CLEAN THE INNER GLASS DOOR The inner glass door is not removable.

  • Page 26: To Remove The Wirework Runners

    TO REMOVE THE WIREWORK RUNNERS The wirework runners in the grill and oven can be removed for cleaning. 1. Remove all shelves and furniture from the grill / oven compartments. 2. Hold the wirework at the bottom and gently pull...

  • Page 27: Replacing An Oven Light Bulb

    The type of bulb required is a 300°C, 25 watt small Edison Screw. 1. Make sure the appliance is cool before you replace a bulb 2. Open the oven door and remove the shelves and wirework runners. Instructions on how to remove the wirework runners are given on page 26.

  • Page 28: Something Not Working

    Check that there has not been a power failure. If the electricity supply has been interrupted or you have switched the oven off at the wall, the grill may have cut out before the cooling fan has cooled the appliance down.
  • Page 29 Food is cooking too quickly or too slowly The oven light bulb may need replacing, see page 27. If the Oven is set for automatic cooking the light will illuminate when the cook time begins. Check that the recommended Gas mark settings and shelf positions are being used.

  • Page 30: Service And Spare Parts

    Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls. CUSTOMER CARE DEPARTMENT For general enquires concerning your Electrolux appliance, or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk...

  • Page 31: Guarantee Conditions

    Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: ·...

  • Page 32: Technical Details

    TECHNICAL DETAILS Loading info : Grill Burner Heat Input Injector Marking Oven Heat Input Injector Marking Thermostat By-Pass Marking Oven Light: Control Cooling Fan Timer: Height: Width: Depth: (excluding handles and knobs) Weight: Connection: Gas Connection: Electric GAS CATEGORY CAT. I CAT.

  • Page 33: Things You Need To Know

    This appliance must be earthed. · Do not remove the screws from the earth tab extending from the oven mains terminal block (Fig. · Before connected the appliance make sure that the gas type and the voltage of your electricity supply is the same as that indicated on the rating plate.

  • Page 34: Getting Things Ready

    600-605mm is maintained. The modification should ideally be localised to ensure that after screw fitment the oven is securely fixed into position. · The adjacent cabinets must be stable and firmly secured to the wall or floor.

  • Page 35: Flexible Pipe Installation

    INSTALLATION INSTRUCTIONS FLEXIBLE PIPE INSTALLATION FITTING THE APPLIANCE AND CABINET It is recommended that a 8”, flexible hose (BFS), and a ½ straight socket (BFS) be ” used for the installation. However, any approved hose of the right length can be used. IMPORTANT: Flexible tubing used must comply with BS 669 current editions.

  • Page 36: Connection To Electricity Supply

    INSTALLATION INSTRUCTIONS CONNECTION TO ELECTRICITY SUPPLY WARNING: This appliance must be earthed, do not earth this appliance to the gas supply piping. This appliance must be connected to a isolated 230V- 240V a.c. 50Hz supply which incorporates a 3 ampere fuse.

  • Page 37: Installation Between Cabinets

    CHECKING ELECTRICAL CONNECTIONS · Confirm the appliance is correctly connected by switching on and observing the various oven functions. · The electronic timer will flash on and off. NOTE: HOUSE CIRCUIT Earth leakage / continuity tests must be carry out before the appliance is connected to the mains supply and re- checked after fitting.

  • Page 38: Pressure Testing

    4. When the F.S.D. phial has heated up it opens the F.S.D. valve and the main gas stream flows to the burner. 5. Set the oven thermostat to Mk. 2, close the oven door and check that after 10 minutes the flame size has reduced.
  • Page 39 NOTES...

  • Page 40: Important Notice

    This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed. ELECTROLUX 55 – 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ. TELEPHONE 0870 5 950950 Part Number: 311655000 www.electrolux.co.uk © Electrolux plc 2003...
