Connecting I/O Devices

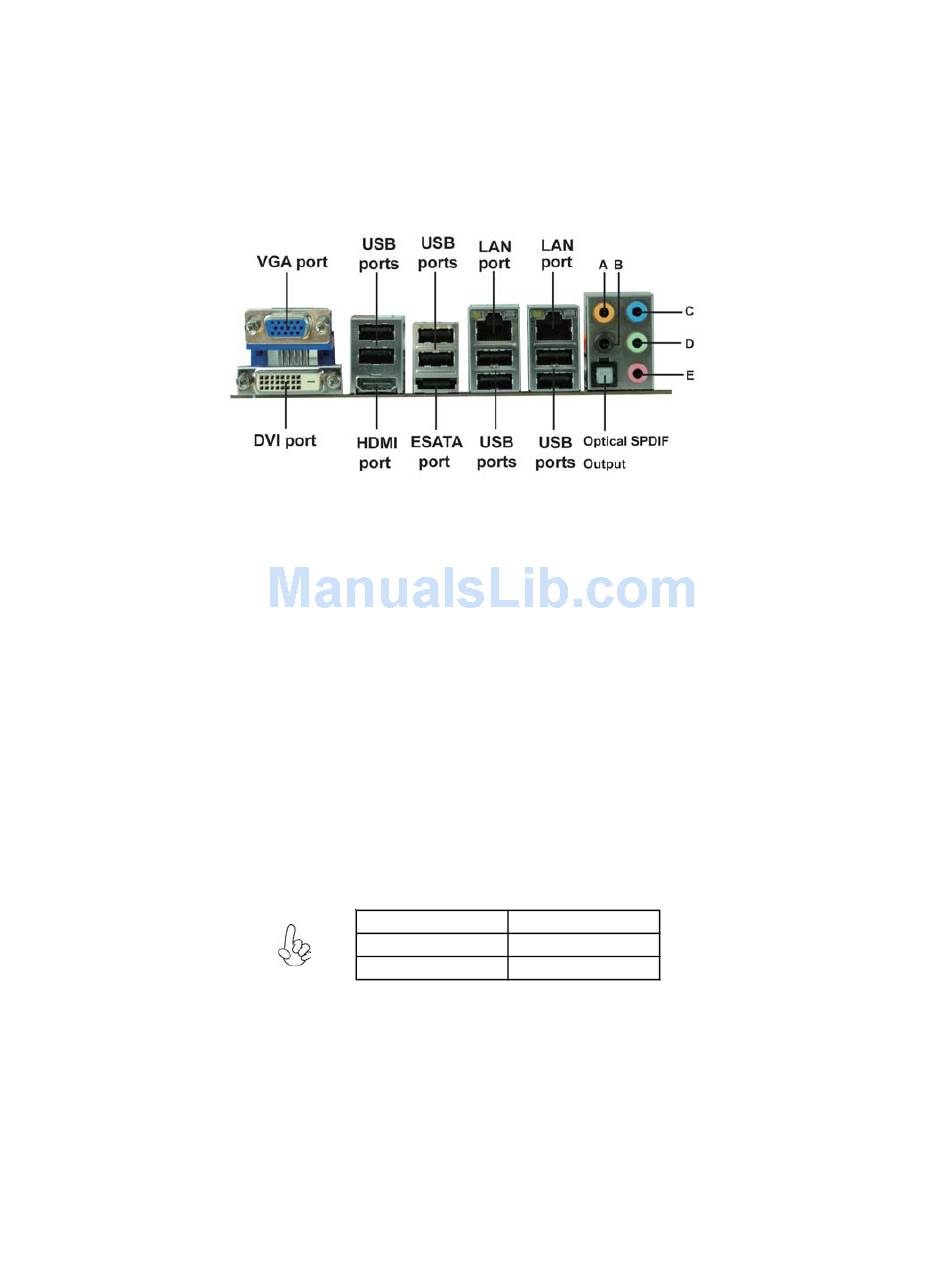

The backplane of the motherboard has the following I/O ports:
VGA Port
DVI Port
HDMI Port
ESATA Port
LAN Port
USB Ports
Optical SPDIF
Output
Audio Ports
Connect your monitor to the VGA port.
Connect the DVI port to the monitor.
Connect the HDMI port to the HDMI devices.
Use these ports to connect to external SATA boxes or Serial
ATA port multipliers.
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Use the USB ports to connect USB devices.
This jack connects to external optical digital audio output
devices.
Use the audio jacks to connect audio devices. The C port is
for stereo line-in signal, while the E port is for microphone
in signal. This motherboard supports audio devices that cor-
respond to the A, B, and D port respectively. In addition,
both of the 2 ports, B, and D provide users with both right &
left channels individually. Users please refer to the follow-
ing note for specific port function definition.
A: Center & Woofer D: Front Out
B: Back Surround E: Mic_in Rear
C: Line-in
The above port definition can be changed to audio input or
audio output by changing the driver utility setting.
