chapter 6
Hardware Overview

Mbox 2 Pro Front Panel Features

The Mbox 2 Pro front panel has the following features:
Power
LED
Headphones level
Ext Clock LED
MIDI Activity LED
Headphone Outputs
(A and B)

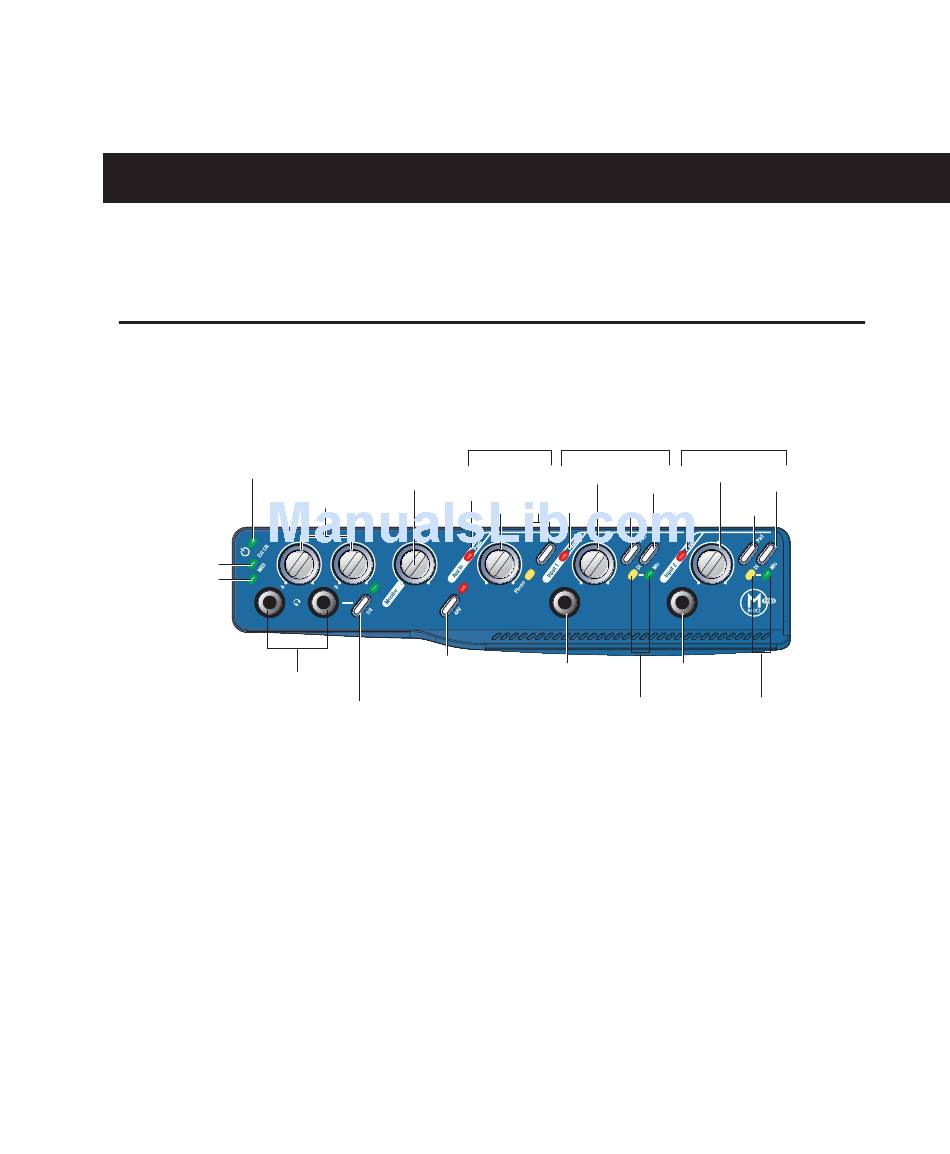

Figure 1. Mbox 2 Pro front panel
Power LED
The Power LED indicates that the Mbox 2 Pro is
powered on.
Ext (External) Clock LED
The External Clock LED lights to indicate that
either S/PDIF or Word clock is the current
Pro Tools clock source. When unlit, this LED in-
dicates Internal clock.
Aux In (3–4)
Monitor
Level
Peak
LED
(A, B)
48V
Switch and LED
3–4 Switch and LED
(Headphone B)
Input 1
Source
Source
Gain
selector
selector
and Peak
Gain
LED LED
Pad
Input 1 DI Input 2 DI
DI/Mic 1 LEDs
MIDI Activity LED
This LED lights to indicate Mbox 2 Pro is receiv-
ing or sending MIDI.
Chapter 6: Hardware Overview
Input 2
Source
Gain
selector
Peak
Pad
LED
DI/Mic 2 LEDs
29
