- Page 1 CABINET PARTS REFRIGERATOR For Models: ABB2222FED1 (Universal Silver) Part No. W10268061 Rev.A 3−09 Litho In U.S.A (rrm)(bay)
-
Page 2: Cabinet Parts

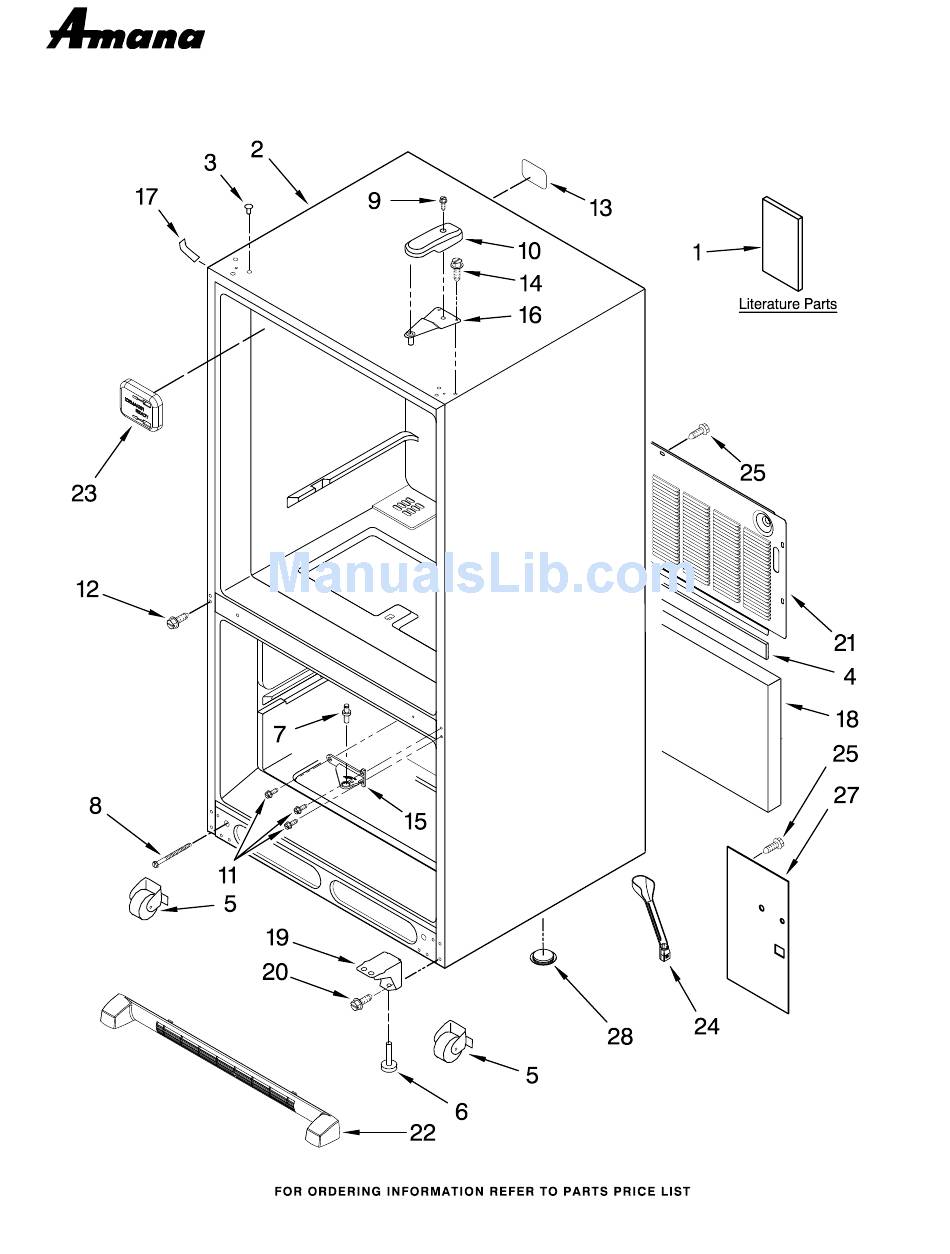

CABINET PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part DESCRIPTION Literature Parts W10175445 Use & Care Guide W10184250 Energy Guide W10238840 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 12246606 Black B5759649 Gasket 12580304 Roller Assembly 10354002 Foot, Brake 10351006 Pin, Center Hinge 12606103 Bolt, Adjusting (Front Roller) -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: ABB2222FED1 (Universal Silver) W10268061... - Page 4 FREEZER LINER PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam 12002497 Gear 12804901 Cover, Light 5 12812902WD Shaft 12570701V Socket, Light 12002497 Gear 12990521 Screw 9 W10194422V Bulb, Light 12476401V Housing, Fz Light 12226111 Cover, Evaporator 12990511 Screw Bracket, Door...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) 13092241DQ Universal Silver Handle W10179169 Black Door Gasket, Magnetic W10164037 Black Screw, Handle Hole 12992902 White W10268061... -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002355 Thermistor Liner (Not A 12806601V Housing, Light Serviceable Part) 17 M0310343 Plug, Button 9 W10194422V Bulb, Light (2) 12806301 Module, Light 12570701V Socket, Light (2) 12816501 Overlay 12806801 Insert, Damper 12806406 Housing... -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: ABB2222FED1 (Universal Silver) W10268061... - Page 8 REFRIGERATOR DOOR PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part DESCRIPTION Refrigerator Door (w/Liner) 12658579DQ Universal Silver 12992803 Screw 12744905V Door, Dairy 4 12369502SP Tray, Dairy 12557204 Bucket, Medium (4) Screw, Handle Hole 12991105 Black Door Gasket, Magnetic W10164035 Black Door Handle 12845806B Black 12528501 Nameplate...
-
Page 9: Unit Parts
UNIT PARTS For Models: ABB2222FED1 (Universal Silver) W10268061... - Page 10 UNIT PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Following Parts Not Illustrated 12992301 Screw 19 W10206339 Fastener, Basepan 12825803 Blade, Fan Extension and Optional Parts Not Included 3 W10210983 Basepan 20 12225402WD Tray, Drip 12990511 Screw 12990701 Screw 6 W10217745 Tube, Discharge...
-
Page 11: Shelf Parts
SHELF PARTS For Models: ABB2222FED1 (Universal Silver) W10268061... - Page 12 SHELF PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part DESCRIPTION 12530701 Rail, Center Crisper 2 W10231341 Trim, Crisper 3 12530805SP Slide, Humidity Control 12896402 Basket, Freezer Upper 5 W10143561 Basket, Freezer (Lower) 6 12990302SP Screw 12990515 Screw (2) 12990601N Screw 12656404V Pan, Deli 10459927 Trim, Front 12990513 Screw (6)
-
Page 13: Optional Parts
OPTIONAL PARTS For Models: ABB2222FED1 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ICE MAKER PAINT, BULK (1 qt.) TORX SCREW WRENCH FIELD INSTALLABLE 1117510 Torx Key W10261234 IC13B 799344 White (Uncut) 799344 Black (Uncut) ACCESSORIES PAINT, TOUCH−UP (1/2oz.) Miscellaneous 2217192 Cleaner, Stainless Steel...
