- Page 1 CABINET PARTS REFRIGERATOR For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) (Bisque) 2−08 Litho In U.S.A. (CJJ) Part No. W10192969 Rev.A...
-
Page 2: Cabinet Parts

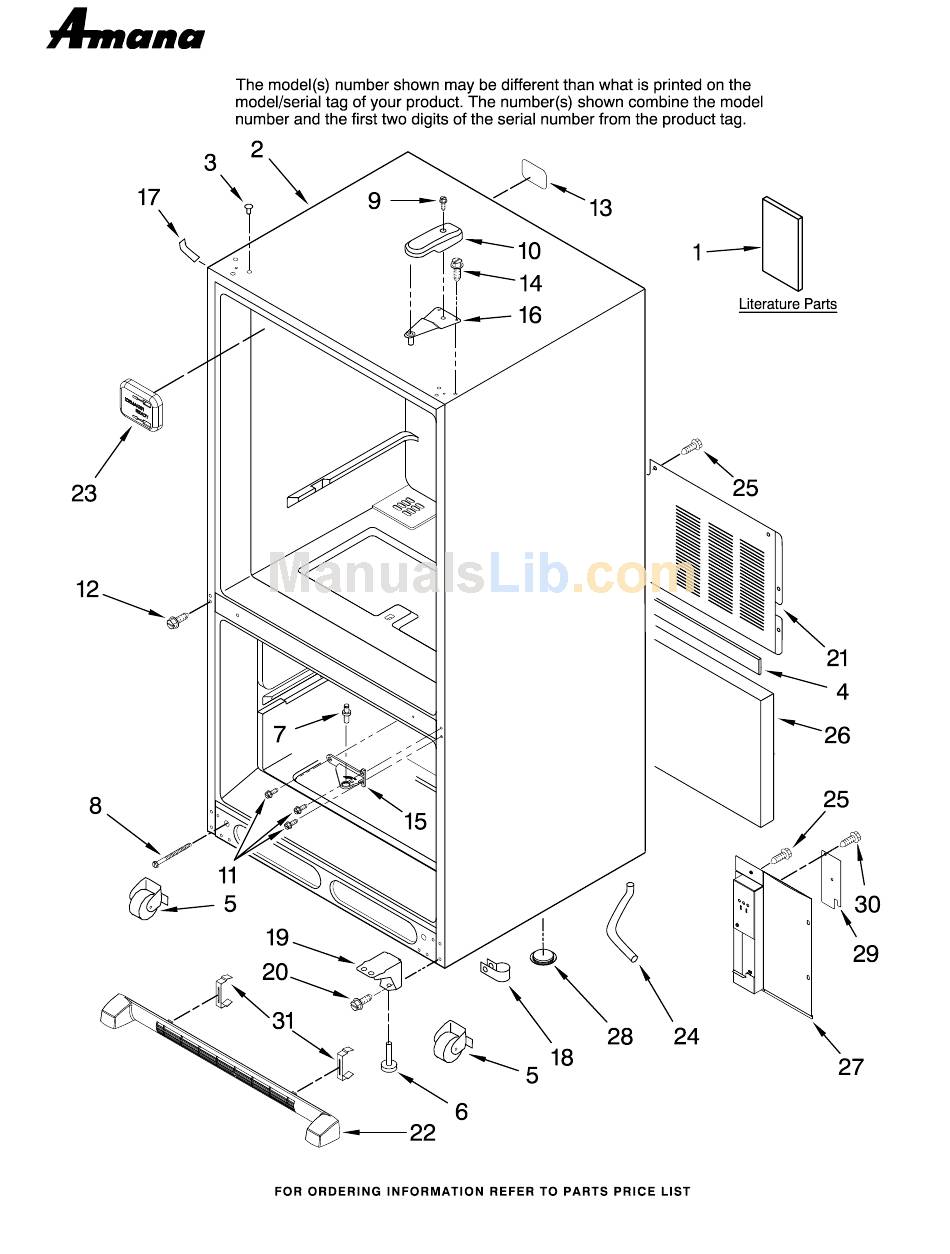

For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 Illus. Part DESCRIPTION Literature Parts W10137539 Use & Care Guide W10123458 Energy Guide W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001130 White 67001131 Black B5759649 Gasket 67006118 Roller Assembly 67003868 Foot, Brake... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) (Bisque) W10192969... - Page 4 FREEZER LINER PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear 67003905 Cover, Light 67004261 Shaft Y12570701 Socket, Light 12002497 Gear 67006475 Screw A0282812 Bulb, Light 67001035 Housing, Fz Light...
-
Page 5: Freezer Door Parts
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10170997 White W10170998 Black W10170999 Bisque W10192969 FREEZER DOOR PARTS (White) (Black) Illus. Part DESCRIPTION Handle 67006458 White W10119667 Bisque 67006463 Black Door Gasket, Magnetic W10130894 White W10130587 Black (Bisque) Illus. -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Module, Light 67004279 Overlay 4 W10185244 Housing 5 W10165748 Board, Control C3680310 Switch, Light 67003897 Cover, Light (White) (Black) Illus. Part DESCRIPTION 67003901 Housing, Light... -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) (Bisque) W10192969... - Page 8 REFRIGERATOR DOOR PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) Illus. Part DESCRIPTION Refrigerator Door (w/Liner) 67004363 White 67004329 Black 67004361 Bisque 67006668 Screw 67003819 Door, Dairy 67001279 Tray, Dairy 67001021 Bucket, Medium (4) Screw, Handle Hole 12991103 White 12991104 Bisque...
-
Page 9: Unit Parts
UNIT PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) (Bisque) W10192969... - Page 10 For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 Illus. Part DESCRIPTION 67006433 Screw 2 W10162928 Blade, Fan 67005744 Basepan 67006425 Screw 67005491 Block, Condenser 6 W10167036 Tube, Discharge 7 W10119856 Harness, Evap. Heater 67004713 Drain Pan 61004743 Grommet (3) 67001794 Evaporator Heater 11 W10136415 Clip, Capacitor...
-
Page 11: Shelf Parts
SHELF PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) (Bisque) W10192969... - Page 12 SHELF PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) Illus. Part DESCRIPTION 67001057 Rail, Center Crisper 67004420 Trim, Crisper 67005864 Slide, Humidity Control 67004986 Basket, Freezer Upper 67006024 Basket, Freezer (Lower) 67006626 Screw 67006360 Screw (2) 67006608 Screw 67001314 Pan, Deli...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) (Bisque) W10192969... - Page 14 ICEMAKER PARTS For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 (White) (Black) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 67003729 Tube, Plastic 67003932 Clamp 489276 Screw 67003753 Valve−Inlet 67004028 Arm−Shut Off 67004710 Cover, Front A3223101 Insert, Tube 6282280 Mold & Heater Assembly (Also...
-
Page 15: Optional Parts
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350930 White 350939 Black Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
