- Page 1 CABINET PARTS REFRIGERATOR For Models: ABB2222FED10 (Universal Silver) Part No. W10234657 Rev.A 10−08 Litho In U.S.A (mat) (psw)
-
Page 2: Cabinet Parts

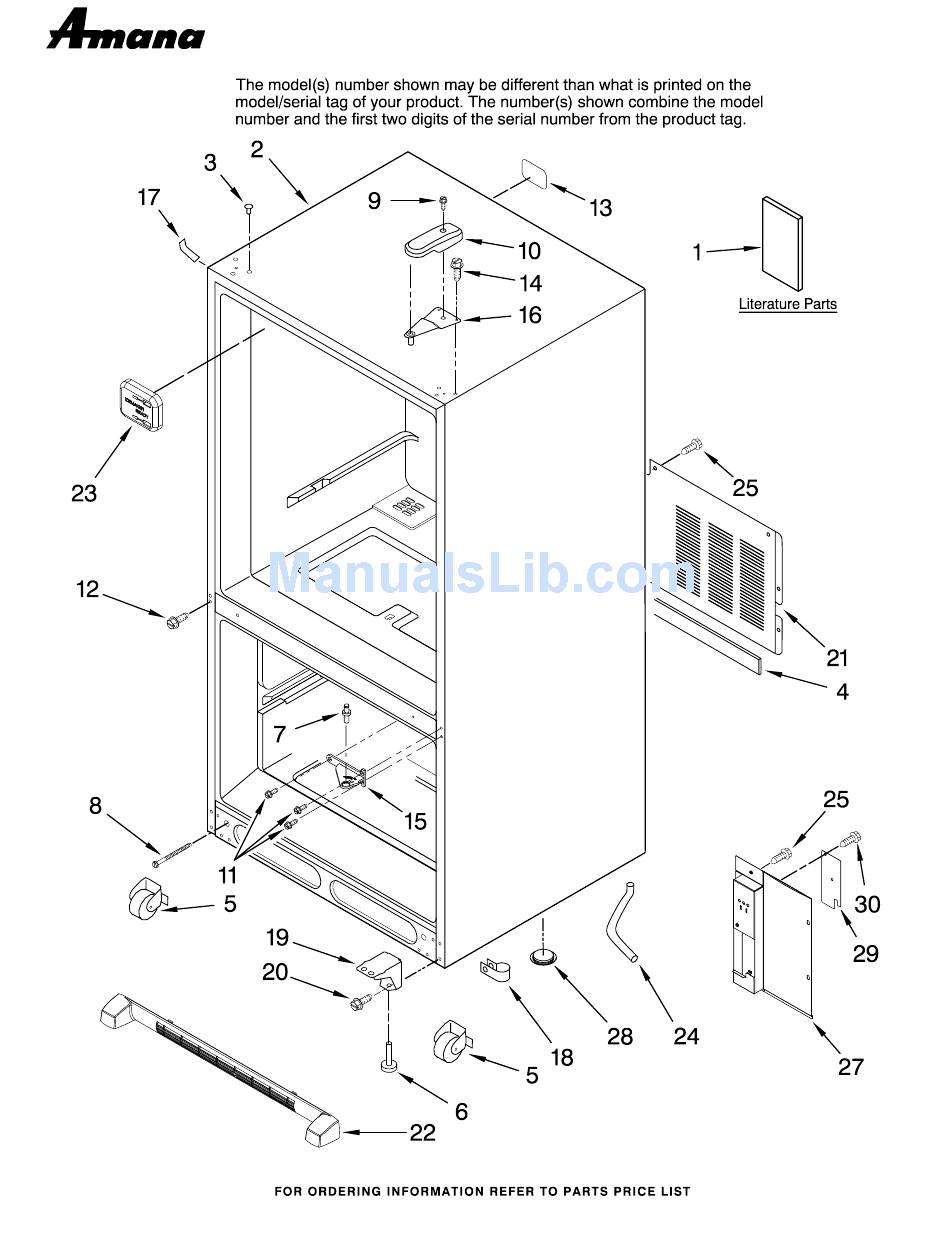

CABINET PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 19 W10208641 Foot, Cabinet Literature Parts 67006521 Screw 67006564 Screw W10175445 Use & Care Guide Cover, Hinge 67006102 Cover, Unit W10184250 Energy Guide 67001012 Black 67005822 Screw Grille Assembly W10165418 Tech Sheet... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: ABB2222FED10 (Universal Silver) W10234657... - Page 4 FREEZER LINER PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear 67003905 Cover, Light 67004261 Shaft Y12570701 Socket, Light 12002497 Gear 67006475 Screw A0282812 Bulb, Light 67001035 Housing, Fz Light 67005872 Cover, Evaporator 67006425 Screw Bracket, Door...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door Screw, Handle Hole Handle (w/ Insulation) W10179169 Black 12992902 White 13092241DQ Universal Silver Door Gasket, Plug, Button (2) Magnetic 67004838 Black W10164037 Black W10234657... -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67003901 Housing, Light Liner (Not A 12002355 Thermistor A0282812 Bulb, Light (2) Serviceable Part) 17 M0310343 Plug, Button Y12570701 Socket, Light (2) Y67003896 Module, Light 67003900 Insert, Damper 67004279 Overlay Cover... -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: ABB2222FED10 (Universal Silver) W10234657... - Page 8 REFRIGERATOR DOOR PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part DESCRIPTION Refrigerator Door (w/Liner) 12658579DQ Universal Silver 67006806 Screw 67003819 Door, Dairy 67001279 Tray, Dairy 67001021 Bucket, Medium (4) Screw, Handle Hole 67007166 Black Plug, Button 67004838 Black Door Gasket, Magnetic W10164035 Black Door Handle...
-
Page 9: Unit Parts
UNIT PARTS For Models: ABB2222FED10 (Universal Silver) W10234657... - Page 10 UNIT PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw 67003719 Evaporator 12825802 Blade, Fan Following Parts Not Illustrated 12591404 Basepan 67001084 Right Side and Optional Parts Not Included 67001083 Left Side 67006425 Screw 67004432 Motor, Fan 67005491 Block, Condenser...
-
Page 11: Shelf Parts
SHELF PARTS For Models: ABB2222FED10 (Universal Silver) W10234657... - Page 12 SHELF PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part DESCRIPTION 67001057 Rail, Center Crisper 67004420 Trim, Crisper 67005864 Slide, Humidity Control 67004986 Basket, Freezer Upper 5 W10143561 Basket, Freezer (Lower) 67006626 Screw 67006360 Screw (2) 67006608 Screw 67001314 Pan, Deli 10459927 Trim, Front 67006400 Screw (6) 67004127 Divider, Top...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: ABB2222FED10 (Universal Silver) W10234657... - Page 14 ICEMAKER PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer Thermostat Thermostat (Not Available Order D7824706Q) 681249 Screw (2) 67001255 Pan, Ice...
-
Page 15: Optional Parts
OPTIONAL PARTS For Models: ABB2222FED10 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) TORX SCREW WRENCH PAINT, BULK (1 qt.) 72017 White 1117510 Torx Key 72032 Black 799344 White (Uncut) 799344 Black (Uncut) ACCESSORIES PAINT, PRESSURIZED SPRAY Miscellaneous 2217192 Cleaner,...
