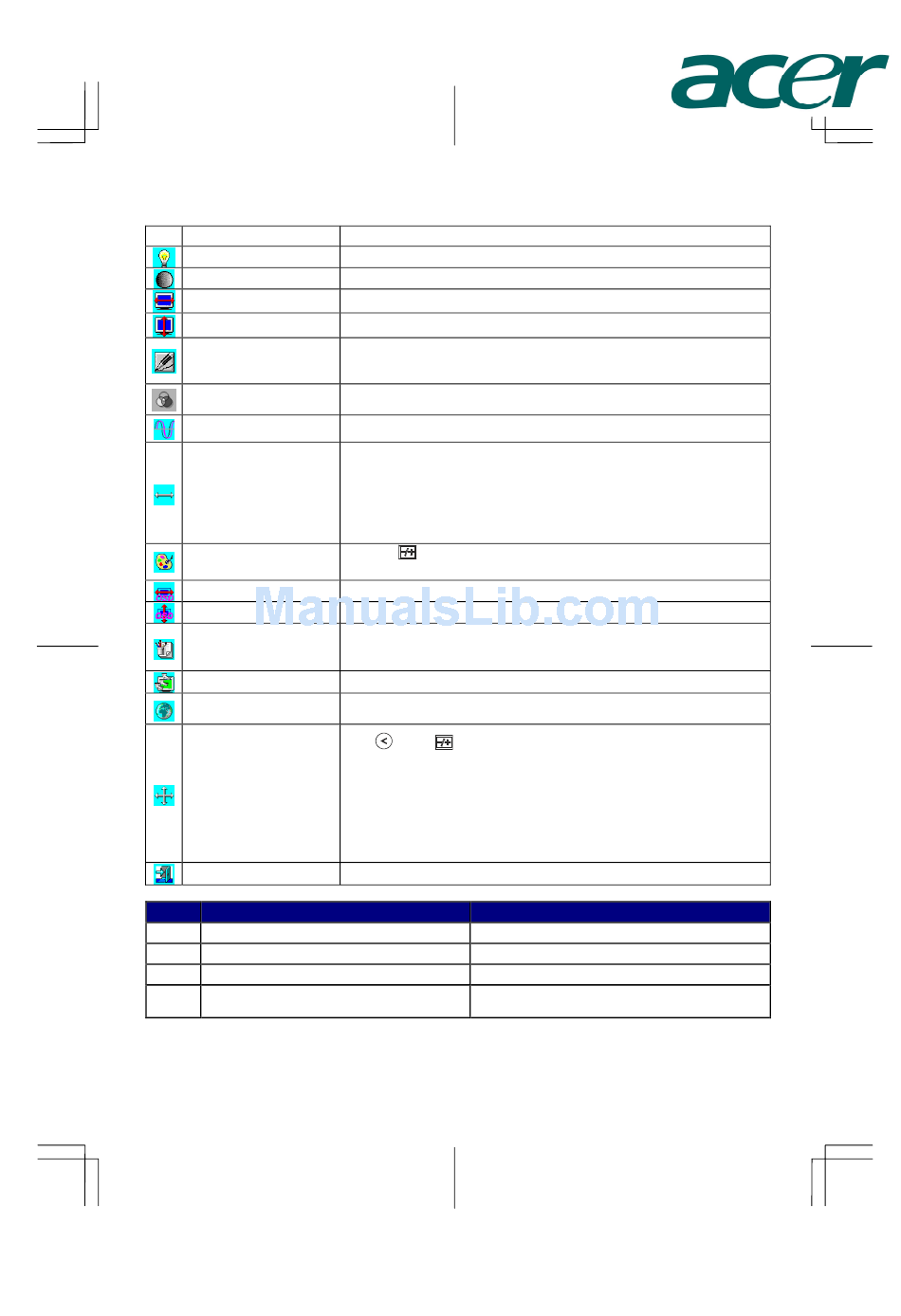

Function Description

Icon Function
Brightness
Contrast
H. Position
V. Position
Sharpness
OSD Transparency
Phase
Clock
Color Temperature
OSD H. Position
OSD V. Position
Graph / Text
Recall
Language
Auto and Input Select
Exit
Icon Function
9300
CIE coordinated Color Temperature of 9300°K
7500
CIE coordinated Color Temperature of 7500°K
6500
CIE coordinated Color Temperature of 6500°K
Three colors (Red, Green, Blue) can be adjusted
User
from the OSD menu
Function Description
101 scales of brightness are available to choose from (0 to 100).
101 scales of contrast are available to choose from (0 to 100).
This function let's you adjust the display's horizontal position
This function let's you adjust the display's vertical position.
This function let's you select the images sharpness. Five selections are available.
A smoother setting is more suitable for pictures, while a sharper setting is more
suitable for text.
This function let's you set the transparency of the OSD menu. The transparency is
adjustable from 0% to 10%. 11 scales are available.
A total of 256 scales (0 to 255) are available to adjust the focus and clarity of the display.
This function carries a frequency-tracking feature that offers users better stability
and clarity. 101 scales (from -50 to +50) are available on the mode that is currently
running. The adjustable range can be variable in different modes. This function
records the deviated number of clock period between input timing and supported
timing. The clock value may not be"0" after Auto Adjustment when the input timing
is different from supported timing.
Push the ( ) button to select a different color temperature. Please see the
diagram below for function and description.
This function moves the OSD menu window horizontally.
This function moves the OSD menu window vertically.
Because the H and V-Frequencies of both 640 x 400 70Hz, and 720 x 400 70Hz,
are the same, this function let's you manually select either 640 x 400 (graphics
mode), or 720 x 400 (text mode).
The recall function will return all adjusted parameters to factory preset values.
Five OSD language options are available: English, German, French, Spanish, and
Italian. Press the left or right adjustment control button to select other language.
Press button ( ) to activate the selected function, Auto Adjustment, Use
Analog Input or Use Digital Input.
The Auto Adjustment function let you adjust the display size, clock and phase to
obtain the best viewing settings. This process will take 3 ~ 5 seconds to complete.
Attention : After Auto Adjustment, the display might display wrong position or
size, if it has received a pattern which has no screen border. You may select either
Analog or Digital Input video when VGA input or/and DVI Input is/are available.
Saves the values of this setting and exits the OSD menu function.
Sets the CIE coordinate color temperature to 9300°K
Sets the CIE coordinate color temperature to 7500°K
Sets the CIE coordinate color temperature to 6500°K
Sets the settings to a by user defined CIE Temperature.
5
