LED Indicators
The front of the DP-101P+ includes three LED indicators. See
"Power-up and Self-Test," Chapter 2, for LED indications upon
starting up the DP-101P+. During operations following a normal
startup, the LED indicators provide the following status signals:
Pw/Tx
Steady or flashing green confirms power on.
This indicator blinks (briefly dark) when the DP-101P+ is
transmitting to the network.
Lk/Rx
Steady or flashing green confirms that the DP-101P+ has a good
connection to the Ethernet network.
This indicator blinks (briefly dark) when the DP-101P+ is
receiving from the network.
LPT
This indicator shows steady green while the DP-101P+ is
transferring print data through its printer port.
Rear End
The DP-101P+ printer port is located at the rear.
Introduction
DP-101P+ Print Server User's Manual

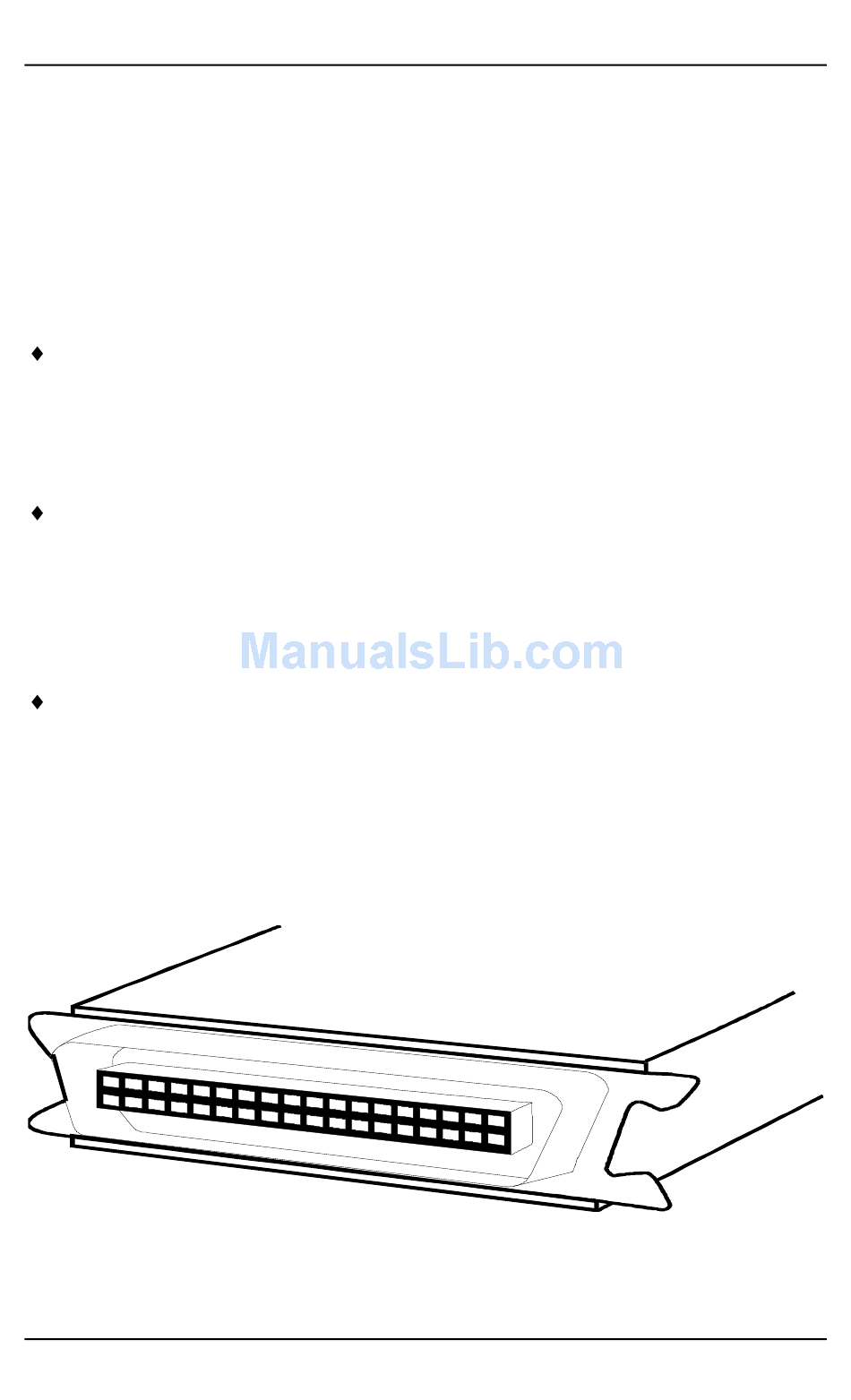

DP-101P+ Rear End
