D-Link 301P - DP Print Server Manual

Pocket-sized print server.
Hide thumbs

Advertisement

D-Link DP-301P+
Pocket-Sized Print Server
Manual
Rev. 02 (October, 2007)

Advertisement

   Related Manuals for D-Link 301P - DP Print Server

   Summary of Contents for D-Link 301P - DP Print Server

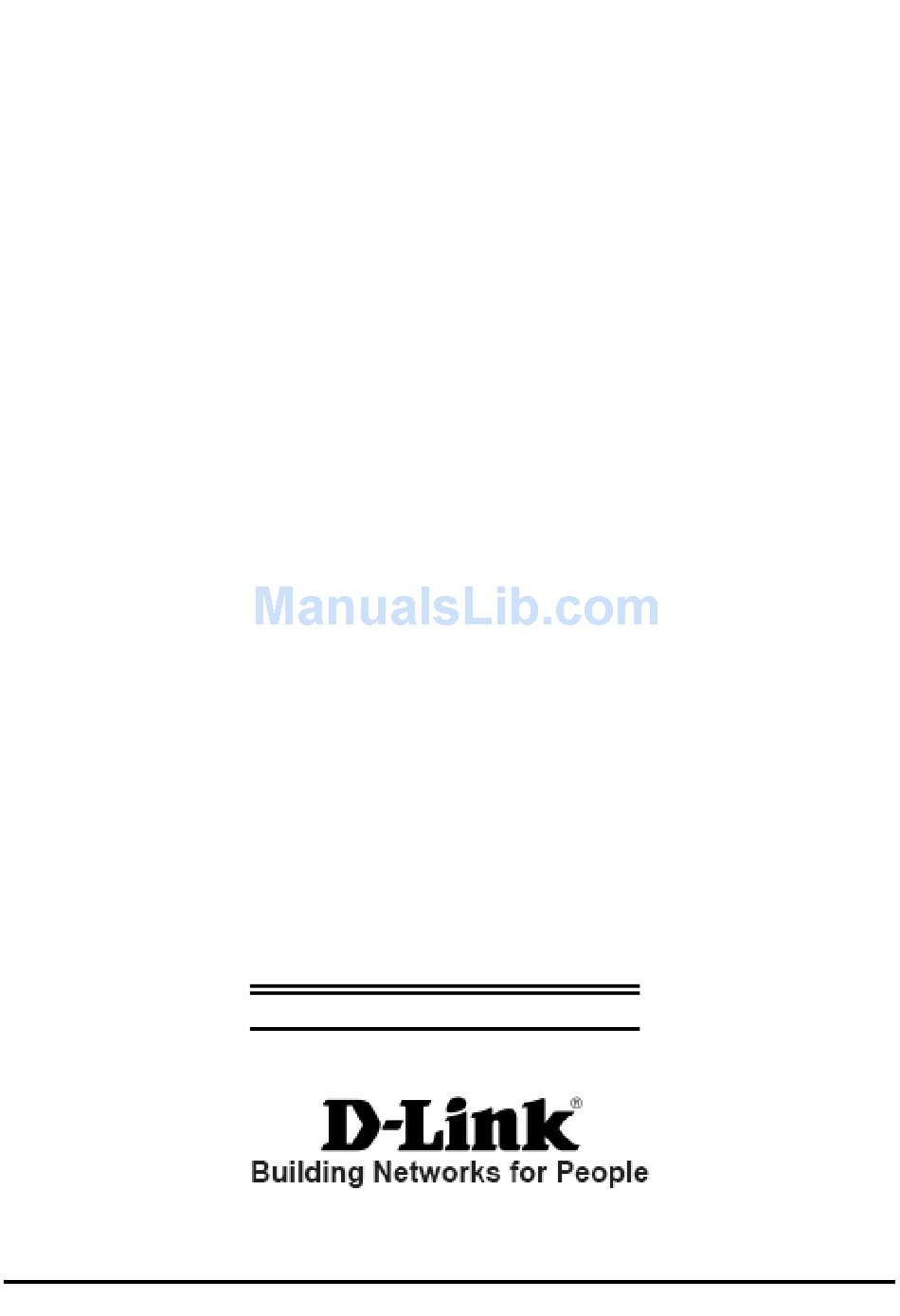

  • Page 1

    D-Link DP-301P+ Pocket-Sized Print Server Manual Rev. 02 (October, 2007)

  • Page 2: Table Of Contents

    Contents Package Contents ....................iii Contents of Package: ..................iii System Requirements: ..................iii Introduction.......................1 External Features .....................3 Port Connectors....................3 Rear Panel Connectors ..................4 Network Cable Connector..................4 DC Power Connector..................4 LED Indicators ....................5 Front Panel........................6 Parallel Port Connector..................6 Setting up the DP-301P+..................7 Installing the Print Server...................7 Power ON Self-Test ...................8 Getting Started......................10...

  • Page 3

    HELP........................51 Reboot ......................52 Refresh Printer Status..................53 TCP/IP Printing for Windows Vista ...............54 TCP/IP Printing for Windows XP ................65 TCP/IP Printing for Windows 2000................76 TCP/IP Printingfor Windows 98SE/ME ..............89 Unix/Linux Printing....................102 Printing Text Files form Unix ................102 Printing form BSD Unix Versions ..............103 Printing from SCO Unix System V/386............106 Printing from Solaris ..................108 Printing from Red Hat Linux................109...

  • Page 4: Package Contents

    Package Contents Contents of Package: D-Link DP-301P+ Pocket-Sized Print Server Manual and Warranty on CD Printed Quick Installation Guide If any of the above items are missing, please contact your reseller. System Requirements: A computer with an installed Ethernet adapter Windows Vista/XP/2000/NT4/ME/98SE/95 Apple Mac OS 9.x to MAC OS X 10.4.x...

  • Page 5: Introduction

    Introduction The D-Link DP-301P+ Print Server is a packet size print server that connects to your Ethernet/Fast Ethernet network anywhere you wish to locate printer services. The DP-301P+ manages the flow of print files from workstations or file servers to connected printers, delivering print jobs to printers much faster than a file server or a PC acting as a print server can.

  • Page 6

    Because the DP-301P+ is very portable and inexpensive compared to a PC-based print server, and Print Server connects to your file servers through the network, printers can be deployed to locations of maximum convenience to users. The DP-301P+ offers extraordinary flexibility, operating with all major network operating systems and protocols: TCP/IP UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) Windows NT/2000,...

  • Page 7: External Features

    External Features Port Connectors The DP-301P+’s parallel port is located on its front panel. The port is configurable using the Web Configuration Interface or the print server’s Telnet interface. The Print Server’s Web configuration permits users to configure settings through the web browser.

  • Page 8: Rear Panel Connectors

    Rear Panel Connectors Network Cable Connector The Print Server’s rear panel feature an RJ-45 connector for connection to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair cable). The port supports the NWay protocol, allowing the Print Server to automatically detect or negotiate the transmission speed of the network.

  • Page 9: Led Indicators

    LED Indicators The rear panel of the print server features three LED indicators: Steady green confirms that the Print Server is powered ON. Lights up to indicate printing activity. Steady green confirms that the Print Server has a good connection to the Ethernet or Fast Ethernet network.

  • Page 10: Front Panel

    Front Panel Parallel Port Connector The front panel of the print server features the parallel port connector. Plug this connector directly into the parallel port on your network printer. There is no need for a parallel port cable between the print server and your network printer.

  • Page 11: Setting Up The Dp-301p

    Setting up the DP-301P+ Installing the Print Server WARNING: Configuration problems may result if the Print Server is powered up without first establishing its network connection. Follow this procedure to avoid complications at the configuration stage. 1. Confirm proper operation of the printers to be connected to the DP-301P+. 2.

  • Page 12: Power On Self-test

    Power ON Self-Test Every DP-301P+ has been factory-tested to operate properly. When the DP-301P+ is powered ON, it also automatically performs a Self-Test on each of its major components. The final result of the Self-Test is signaled by the state of the LPT LED indicator following the Self-Test. Preliminary to the actual component tests, the three LED indicators are tested to confirm their steady and flashing operation.

  • Page 13

    LPT LED Faulty Component 1 long 9 short LPT error 1 long 14 short LAN MII error...

  • Page 14: Getting Started

    Getting Started Below is a sample network using the DP-301P+. The DP-301P+ has a built- in Web-based management feature that allows users to easily configure and manage multiple print queues through TCP/IP. For a list of printers that are compatible with the DP-301P+, please see the Appendix in this manual.

  • Page 15: Using Ps-wizard

    Using PS-Wizard This chapter will introduce you the installation and operation of a useful software program – PS-Wizard. Auto-Run Installation Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. The content of the Installation CD-ROM includes: View Quick Installation Guide - click to preview the Quick Installation Guide in PDF format for step-by-step instructions of the print server Installation.

  • Page 16: Ps-wizard

    PS-Wizard To avoid the conflict in your network, you can use PS-Wizard to change the related settings of your print server (such as the IP address) after finishing the installation of PS-Wizard on your PC. Installing PS-Wizard 1. Click the PSWizardSetup icon of the Installation CD-ROM, and then the system will prompt a window for you to select a desired setup language from its...

  • Page 17

    2. Click Next> button in the welcome window of InstallShield Wizard. 3. Specify the destination location by pressing Browse… button. Otherwise, leave the default setting and click Next> button to continue.

  • Page 18

    4. You may enter a new folder name in the Program Folder field if you want to change the default name. Otherwise, you may leave the default setting and click Next> button to go on the installation.

  • Page 19

    5. The InstallShield Wizard starts to install the software, and the Progress bar indicates the installation is proceeding until the following window shows up. Click Finish button to complete the installation. After installing the program, the application program for the print server is automatically installed to your computer, and creates a folder in Start Programs PS-Wizard.

  • Page 20: Using Ps-wizard

    Using PS-Wizard PS-Wizard, supports for Windows 2000/XP/2003/Vista, is a simple and useful tool for you easily adding a printer on your computer in order to quickly start your printing task without any complicated configuration. That is, the main goal and advantage of the PS-Wizard is to let you add a printer on your PC in the easiest way.

  • Page 21

    Print Server: This field allows you to manually discover the connected print server and to do further configuration of the print server that is selected from the list.

  • Page 22

    LAN: You may also to specify dynamic or static IP address for your print server. Then click Apply button to implement the new setting. Port Information: This is the main function of the PS-Wizard for you to easily add a printer on your computer. To add a printer, click , then the following window will display.

  • Page 23

    The wizard provides three ways for you to select printer driver: 1. Show current installed drivers: You may select this option, “Show currently installed drivers”, to check if the same printer driver already existed for use. If not, you may try the next method. After done the selection of printer driver, click Next>...

  • Page 24

    After done the selection of printer driver, the wizard will ask you to confirm your selection again in the following window. Beside, you are allowed to edit the name of the printer in the field “Network Printer Name” and enable this printer as the default printer by checking the box “Use this printer as the default printer for Windows-based programs”.

  • Page 25

    When the following window shows up, you may do print test by clicking Print Test Page button to check if you can do printing normally. If yes, then click Finish button to exit the installation window and now you may start your printing tasks.

  • Page 26: Using The Web Configuration

    Using the Web Configuration Home To begin managing the DP-301P+, simply launch the browser (e.g. Internet Explorer 6.0 used in this manual) you have installed on your computer and direct it to the URL address: dlink-xxxxxx, where xxxxxx are the last six digits of DP-301P+’s MAC address.

  • Page 27

    Then the main screen of the print server’s configuration will appear (see below). In addition to the product information, you can access and control the print server’s configuration through five links on the top of this main screen: Setup, Advanced, Maintenance, Status, and Help.

  • Page 28

    SETUP > Print Server Setup The Print Server Setup screen allows you to modify the Print Server Name and Port Name, as below shows. D-Link does not recommend changing these settings unless asked to do so by your network administrator.

  • Page 29

    Port Settings In this field, you can assign the Port Name for the print server, and the description for the Printer port. It also allows you to select the PJL Printer setting (Yes or No). NOTE: PJL (Printer Job Language) has certain job requirements that must be met to work correctly.

  • Page 30: Setup > Lan Setup

    SETUP > LAN Setup The LAN Setup screen allows you configure the local network settings of print server. Please note that this section is optional and you should not need to change any of the settings here to get print server up and running. TCP/IP This field allows you to assign IP address in manual or automatic method.

  • Page 31: Setup > Printer Setup

    SETUP > Printer Setup The Printer Setup screen allows you install the printer drivers for the printer currently connected to your print server. Network Printer Wizard Clicking Next to download and run a windows wizard program which will install a network printer onto your computer.

  • Page 32

    The above screen is the Network Printer Wizard so please click RUN, and if a second window appears as below click RUN again.

  • Page 33

    Please select the printer required, then click NEXT to continue. The wizard provides three ways for you to select printer driver: 1. Show current installed drivers: You may select this option, “Show currently installed drivers”, to check if the same printer driver already existed for use. If not, you may try the next method. After done the selection of printer driver, click Next>...

  • Page 34

    2. Select from manufacturer list: Check this option, “Select from manufacturer list”, to manually select your printer from drop-down menus by brand and model. Click Next> button to continue when you find a desired driver. If not, try the last way (Have Disk). After done the selection of printer driver, click Next>...

  • Page 35

    3. Have Disk: Click Have Disk button to bring up the following window. Insert the manufacture’s installation CD-ROM to install the printer driver. After the correct driver is selected, click OK button to continue.

  • Page 36

    After done the selection of printer driver, the wizard will ask you to confirm your selection again in the following window. Beside, you are allowed to edit the name of the printer in the field “Network Printer Name” and enable this printer as the default printer by checking the box “Use this printer as the default printer for Windows-based programs”.

  • Page 37

    When the following window shows up, you may do print test by clicking Print Test Page button to check if you can do printing normally. If yes, click OK button to close the D-Link Add Printer Wizard dialogue screen.

  • Page 38

    If yes, then click Finish button to exit the installation window and now you may start your printing tasks.

  • Page 39: Advanced > Advanced Lan

    ADVANCED > Advanced LAN The Advanced LAN screen allows you to further network setting of print server, while you are recommended better not to change the settings unless instructed to modify the setting by your network administrator. The Advanced LAN screen contains these fields: TCP/IP, Microsoft Network, and AppleTalk.

  • Page 40

    TCP/IP This field contains four options that allow you to configure the TCP/IP setting: DNS Server Address, UPnP, Mac Bonjour/Rendezvous, and Second HTTP Port. UPnP: This option allows you to enable or disable UPnP function. Mac Bonjour/Rendezvous: This option allows you to enable or disable Mac Bonjour/Rendezvous function.

  • Page 41: Advanced > User Access

    ADVANCED > User Access The User Access screen allows you to create and maintain an authorized list of users that are allowed to access the print server. User Access By configuring the Enable Authorised User List option (Yes), the user in the User List is permitted to access the print server.

  • Page 42

    Authorised Users You can add or delete any user to or from the User List. The User List at the bottom of the screen displays the current defined user and related information for the print server.

  • Page 43: Advanced > E-mail Notification

    ADVANCED > E-Mail Notification The E-Mail Notification screen allows you to assign an E-mail address to the print server, so that your mail of the account can be printed out directly through the printer (ASCII text only). This screen also allow you choose where to send an email when the printer status changes.

  • Page 44

    Enable E-mail Notification You can set the print server to send an alert message when the printer status changes through E-mail. To enable this function, set the Enable e-mail notification option to Yes. Then, input the administrator's E-mail address in the Destination e-mail Address field.

  • Page 45: Advanced > Snmp

    ADVANCED > SNMP The SNMP screen allows you to use SNMP (Simple Network Management Protocol) to manage complex networks. SNMP Management Community 1/2/3: Enter a name in the Name frame, and configure the Access Right by selecting Read Only or Read/ Write from the pull-down menu.

  • Page 46: Maintenance > Password

    MAINTENANCE > Password The Password screen allows you to change the password of the print server by entering the current password in Current Password field and new password in New Password and Confirm Password fields. After done the configuration, click Apply Settings to enable and restore the new password, or Cancel to abandon.

  • Page 47: Maintenance > Save/restore Settings

    MAINTENANCE > Save/Restore Settings The Save/Restore Settings screen not only allows you to save the current configuration in a computer for backup by clicking Save, but also allows you to reload a configuration that you saved before by clicking Browse to direct to the backup file, and then clicking Update Settings for reloading.

  • Page 48: Maintenance > Firmware Upgrade

    MAINTENANCE > Firmware Upgrade The Firmware Upgrade screen displays you the current firmware’s information of the print server, and also allows you to upgrade the firmware of the print server when a new version of firmware is available. Click Browse to point to the firmware file, and then click Upgrade.

  • Page 49: Maintenance > Diagnostics

    MAINTENANCE > Diagnostics The Diagnostics screen allows you to test the printing for LPT port of the print server. After done the port selection, click Print Test Page to print a test page.

  • Page 50: Status > Device Info

    STATUS > Device Info The Device Info screen displays the status of your print server, printer, and network for your reference.

  • Page 51

    Print Server Status This field displays the information of the print server about the firmware version, MAC/IP address, and up time. Printer Status The items in this field display the information of the printer, such as the given name for the printer, speed, printer status, and status of your printing tasks, etc. LAN Status You can monitor the networking status in this field, including the network connection, speed, and the packets status.

  • Page 52: Status > Network

    STATUS > Network The Network screen displays the general Network status of your print server, including: Auto IP This field contains the current settings of TCP/IP, including DHCP/BOOTP, UPnP, and Mac Bonjour/Rendezvous. The items in this field are configured in Advanced Advanced LAN TCP/IP.

  • Page 54

    STATUS >Print Log The Print Log screen displays the printing record of the authorized users. Print Log The items in this field display the user(s) information, which include the user(s) MAC address, IP address, name, and status of printing tasks.

  • Page 55: Help

    HELP The Help screen provides you brief information about the print server for your reference.

  • Page 56: Reboot

    Reboot If you want to reset the print server, you may just click the Reboot for restarting.

  • Page 57: Refresh Printer Status

    Refresh Printer Status Click Printer to refresh printer status.

  • Page 58: Tcp/ip Printing For Windows Vista

    TCP/IP Printing for Windows Vista Go to Start Control Panel Printers.

  • Page 59

    Click Add a printer. Select the first option, Add a local printer, and then click Next.

  • Page 60

    Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next. Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be referred from the PRINTER SERVER STATUS of the print server’s Web configuration, and then the Port Name will automatically be filled in.

  • Page 62

    Select Custom and click Settings. Then the follow screen will shows up, select LPR from the Protocol field. Then enter the Queue Name, which can be referred from PRINTER STATUS of the print server’s Web configuration, in the LPR Settings field. Click OK.

  • Page 65

    Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next...

  • Page 66

    Click Next.

  • Page 67

    After clicked Print a test page, a small dialogue box will show up as below. Click Close.

  • Page 68

    Click Finish. The printer is now ready for printing with Windows Vista on your network.

  • Page 69: Tcp/ip Printing For Windows Xp

    TCP/IP Printing for Windows XP Go to Start Printers and Faxes Add a Printer. When the following screen shows up, click Next.

  • Page 70

    Select the first option, Local printer attached to this computer, and click Next. Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next.

  • Page 71

    Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be referred from the PRINTER SERVER STATUS of the print server’s Web configuration, and then the Port Name will automatically be filled in. Click Next...

  • Page 72

    Select Custom and click Settings.

  • Page 73

    Then the follow screen will shows up, select LPR from the Protocol field. Then enter the Queue Name, which can be referred from PRINTER STATUS of the print server’s Web configuration, in the LPR Settings field. Click OK.

  • Page 75

    Click Next.

  • Page 76

    Click Finish.

  • Page 77

    Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next At this screen, you can input a name for the printer, and then click Next...

  • Page 78

    Select Yes to print a test page, click Next.

  • Page 79

    Click Finish. The printer is now ready for printing with Windows XP on your network.

  • Page 80: Tcp/ip Printing For Windows 2000

    TCP/IP Printing for Windows 2000 Go to Start Settings Printers and Faxes Add a Printer. When the following screen shows up, click Next.

  • Page 81

    Select the first option, Local printer attached to this computer, and click Next.

  • Page 82

    Click Next. Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next.

  • Page 83

    Click Next.

  • Page 84

    Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be checked from the PRINTER SERVER STATUS of the print server’s Web configuration, and then the Port Name will automatically be filled in. Click Next...

  • Page 85

    Select Custom and click Settings.

  • Page 86

    Then the follow screen will shows up, select LPR from the Protocol field. Then enter the Queue Name, which can be referred from PRINTER STATUS of the print server’s Web configuration, in the LPR Settings field. Click OK.

  • Page 87

    Click Next.

  • Page 88

    Click Finish.

  • Page 89

    Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next.

  • Page 90

    At this screen, you can input a name for the printer, and then click Next Select the first option, Do not share this printer, and click Next.

  • Page 91

    Select Yes to print a test page, click Next.

  • Page 92

    Click Finish. The printer is now ready for printing with Windows 2000 on your network.

  • Page 93: Tcp/ip Printingfor Windows 98se/me

    TCP/IP Printingfor Windows 98SE/ME Go to Start Settings Control Panel. Double click on Network, and then click Add.

  • Page 94

    Highlight Client and click Add. At this window, click Have Disk.

  • Page 95

    1. Insert the DP-301P+ CD-ROM into your CD-ROM drive. Select the letter representing the CD-ROM drive on your computer from the pull-down menu. 2. Double-click on the folder lpr. 3. Highlight lpr.inf 4. Click OK. Click OK to accept the location of the file.

  • Page 96

    You should now be back to the Network Properties Page. Highlight LPR for TCP/IP Printing and click Properties.

  • Page 97

    Click Add Port. Type in the IP address and Port Name of the print server, which can be referred from the PRINTER SERVER STATUS and PRINTER STATUS of the print server’s Web configuration, in the corresponding field, and then click OK. (The IP Address and Port Name here are just for example only.)

  • Page 99

    The IP Address and Port Name will be displayed in the following screen. (The IP Address and Port Name here are just for example only.) Click OK.

  • Page 100

    Click OK. Windows will ask for a restart. Click Yes.

  • Page 101

    Once your computer has rebooted, click on Start Settings Printers Printer. When the Add Printer Wizard screen appears, click Next. Select Network Printer and click Next.

  • Page 102

    Type in the path if you know it; otherwise, click Browse. At the following screen, browse for the printer port and highlight the port (e.g. dlink-1D6FA3 in this manual). Click OK.

  • Page 103

    If the network path is not specified, type in the IP Address and Port Name of the print server. Select Yes or No to enable or disable printing from MS-DOS based programs. Click Next.

  • Page 104

    Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next. Click Next...

  • Page 105

    Select Yes to print a test page. Click Finish. To check whether the printer is installed, go to Start Settings Printers.

  • Page 106: Unix/linux Printing

    Unix/Linux Printing Printing Text Files form Unix Text files on Unix systems contain lines that end with “newline” characters, as opposed to MS-DOS and Windows-related operating systems that end with a carriage return followed by a linefeed. Most printers require a carriage return/linefeed pair at the end of each line, making it necessary for some translation to be done before Unix text files can be printed on most printers.

  • Page 107: Printing Form Bsd Unix Versions

    SunOS 4.x, Linux, BSD/OS, FreeBSD, or NetBSD, you can use the following procedure to enable users to print to a printer connected to your D-LINK network print server: 1. Log in as the superuser (root). 2. Add an entry for the print server in the host’s /etc/hosts file, giving a hostname for the print server’s IP address.

  • Page 108

    chown bin.daemon /var/spool/hp5l chmod 775 /var/spool/hp5l 5. Add an entry for the printer to /etc/printcap, similar to the following: hp5l:\ :lp=:sd=/var/spool/hp5l :mx#0:\ :rm=ps-142634:rp=ps-142634-p1: The meaning of each of the entries is described below. The directory path in the spool directory entry should match the directory name you created above. If your entry requires more than one line you can escape the newline with a backslash.

  • Page 109

    The host where the remote printer is located, in this case the D-Link print server. ◆ rp=printer The name of the printer on the remote host. For the D-Link print server, the port name should be used. Note: this entry is case-sensitive.

  • Page 110: Printing From Sco Unix System V/386

    Printing from SCO Unix System V/386 To allow printing to a printer attached to your D-LINK network print server from a SCO Unix System V/386 host. 1. Login as the superuser (root). 2. Add an entry for the print server in the host’s /etc/hosts file, giving a hostname for the print server’s IP address.

  • Page 111

    Please enter the name of the remote host that printer is attached to: then enter the address of the D-Link print server. You can use the name you added to /etc/host in the step above. 9. Confirm that your entries are correct.

  • Page 112: Printing From Solaris

    Printing from Solaris To allow printing from a Sun Solaris workstation, 1. Log in as the superuser (root). 2. Add an entry for the print server in the host’s /etc/hosts file, giving a hostname for the print server’s IP address. A line in /etc/hosts contains an IP address and one or more aliases for the host .

  • Page 113: Printing From Red Hat Linux

    Printing from Red Hat Linux Adding a Printer 1. Click the printer icon at the bottom of the desktop. 2. Since no printer is set up so far, a prompt appears asking to run the printer configuration tool.

  • Page 114

    3. Click the OK button in the pop-up dialogue box to open the man Printer configuration tool menu. Note that to use the Printer configuration tool you must have root privileges, and to start the application you may also type the command: “redhat-config-printer”.

  • Page 115

    Printer Configuration Tool menu 5. The Add a new print queue menu appears, click Forward to continue.

  • Page 116

    6. Enter a unique name for the printer in the Name text field. The printer name cannot contain spaces and must begin with a letter. The printer name may contain letters, numbers, dashes (-), and underscores (_). Optionally, enter a short description for the printer, which can contain spaces.

  • Page 117

    8. Select the printer model.

  • Page 118

    If a printer has not been detected automatically, select the model from the list. You can manually select the name of the printer manufacturer from the Generic (click to select manufacturer) pull-down menu, and the printer model from the sub-list. Click Forward to continue.

  • Page 119

    10. Print a test page to make sure the printer is functioning properly. To print a test page, select the printer from the printer list, then select the appropriate test page from the Test drop-down menu.

  • Page 120: Setting Up Printing In Mac Os X Tiger (10.4)

    Setting up Printing in Mac OS X Tiger (10.4) NOTE: Mac OS printing is supported by Postscript printers only! With Mac OS X Tiger (10.4), you can use Apple Talk, Bonjour, Internet Printing Protocol (IPP), Line Printer Daemon (LPD), and HP Jet Direct-Socket printing through Print Server.

  • Page 121

    Select the Apple Talk tab in the Network menu. Check to select the Make Apple Talk Active option. Click on the Apply Now button and close the menu. Apple Talk is now active on the system. Now a printer can be added.

  • Page 122: Adding A Printer

    Adding a Printer Use the Go menu at the top tool bar and select Applications option and find the Utilities folder or open the Utilities folder directly in Go menu. In the Utilities folder, find and select to open Printer List window.

  • Page 123

    Mac OS X Tiger (10.4) supports five printing protocols: 1. AppleTalk 2. Bonjour 3. Internet Printing Protocol (IPP) 4. Line Printer Daemon (LPD) 5. HP Jet Direct – Socket To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct –...

  • Page 124: Appletalk-enabled Or Bonjour-enabled Printers

    AppleTalk-enabled or Bonjour-enabled Printers To add an AppleTalk-enabled or Bonjour-enabled printer, click on the button in the Printer Browser menu. Select the printer model from Printer Name list and Connection type in the Printer Browser menu. The printer name selected should be the same as that appearing listed in the Printer Server’s web manager.

  • Page 125

    also be manually selected in the Print Using drop-down menu by brand and model. Click the Add button to exit the Printer Browser window and implement the new setting.

  • Page 126

    The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use. Quite the Printer Setup Utility and start printing.

  • Page 127: Adding An Ip Printer

    Adding an IP Printer To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct – Socket enabled printer, click on the IP Printer button in the Printer Browser window. Select the desired printing protocol from the Protocol drop-down menu.

  • Page 128

    The printer utility is able to detect the printer and may automatically select the correct printer driver in the Print Using field. Or manually select the printer-maker from the Print Using drop-down menu, and then select the printer model from the scroll-down list, or select Generic PostScrip Printer option from the Print Using drop-down menu if the model is not listed.

  • Page 129

    For set up LPD Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field. 2. Type the port name in queue field. Click Add button after done the section of printer model in the Print Using drop-down menu.

  • Page 130

    For set up IPP Printing: 1. Enter the IP address of the print server to which the printer is attached in “: 80” “: second port” Address field. After that, type if print server’s second port is enabled. 2. Type the port name in queue field. Click Add button after done the section of printer model in the Print Using drop-down menu.

  • Page 131

    For set up Socket Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field. After that, type “: 9100” for port 1, “: 9101” for port 2 or “: 9102” for port 3. Keep the blank in queue field.

  • Page 132

    drop-down menu. When the Installable Options pop-up window shows up as below, click Continue button.

  • Page 133

    The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use. Quite the Printer Setup Utility and start printing.

  • Page 134: Setting Up Appletalk Or Lpr Printing In Mac Os X

    Setting up AppleTalk or LPR Printing in Mac OS X NOTE: Mac OS printing is supported by Postscript printers only! With Mac OSX you can use AppleTalk or LPR printers using IP protocols for printing through Print Servers. Open your System Preferences window and Click Network. Select the AppleTalk tab in this window and check Make AppleTalk Active.

  • Page 135

    To print, open a document and select File Print from the menu. Select Edit Printer List from the Printer dialog box.

  • Page 136

    Click Add Printer Select the printing protocol preferred, AppleTalk or LPR Printers using IP. In this example, AppleTalk has been selected.

  • Page 137

    AppleTalk protocol: After selecting AppleTalk, the Port Names of the Print Server will be displayed. The Port Names shown here are examples only. Click on the Port to which the post-script printer is connected.

  • Page 138

    Then select the printer model from the dialog box displayed here. Click Add Printer and the Printer Port configuration is completed. Select the Printer Port just configured in the Print window. Click Print to print your document. LPR Printers using IP protocol: When you select LPR Printers using IP Protocol, this window will appear.

  • Page 139: Setting Up Appletalk Printing In Mac Os 9

    Setting up AppleTalk Printing in Mac OS 9 NOTE: Mac OS printing is supported by Postscript printers only! The AppleTalk network protocol is used with computers using the MacOS operating system. It can be used for network communications over standard Ethernet or Fast Ethernet using the EtherTalk transport, or over a proprietary low-speed LocalTalk transport.

  • Page 140

    If your AppleTalk network is divided into AppleTalk zones, you will have to specify which zone the Print Server should be in. You should locate the Print Server in the same zone as most of the users who will be using it. If your network is not divided into zones, the AppleTalk Zone field should contain a single asterisk (*).

  • Page 141

    AppleTalk Enter the AppleTalk Zone name in the box. In the following options, enter the related configuration, such as the printer type. Chooser Name: Display the print server's port name. Printer Type: Enter the printer's type in this box. PostScript Level: Select from the pull-down menu (Level 1 or Level 2). Font Group: Select from the pull-down menu.

  • Page 142

    If you have not previously set this printer as the default, your computer will prompt you for a PostScript Printer Description file. Choose Select PPD. Select the appropriate printer description file for your printer. Click Open. (If your printer is not listed, click Generic to use a generic printer description.) If you wish to access this setting in the future, you can use the Setup button in the Chooser window.

  • Page 143: Technical Specifications

    Technical Specifications Printer Connection Printer Port: Parallel port Bi-directional Communication: Hewlett-Packard PJL (Printer Job Language) standard for bi-directional communication. Network Connection Network Standards: 100Base-TX Fast Ethernet Network Data Transfer Rate: 10/100 Mbps (megabits per second) Network Connector: RJ-45 Network Protocols Ethernet Frame Types: 802.2, 802.3, Ethernet II, SNAP (auto-switching) Transport Protocols: TCP/IP, NetBEUI, AppleTalk/EtherTalk, LPR,SMB TCP/IP Protocols Supported: BOOTP, SNMP, FTP, LPD, RARP, DHCP, IPP...

  • Page 144: Contacting Technical Support

    Contacting Technical Support...

  • Page 145: Warranty And Registration

    D-Link‘s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link‘s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part.

  • Page 146

    D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to pay D-Link‘s reasonable handling and return shipping charges for any product...

  • Page 147

    QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OFTHE PRODUCT. Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDERANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANYLOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY...

  • Page 148

    FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 149: Appendix: Dp-301p+ Printer Compatibility List

    Appendix: DP-301P+ Printer Compatibility List Epson LQ-2070, 2170C The Canon Printer Epson EPL-N2000, N2010 Canon BJC-255SP Epson EPL-5500, 5700, 5700L, 5800 Canon BJ-330 The Fujitsu Printer Canon BJC-600, 620 Canon BJC-2000SP Fuji 10V, 14V Canon BJC-4100, 4300, 4500, 4550 Fuji DL-700 Canon BJC-6000, 6500 Fuji DL-3800 Canon BJC-7000...

  • Page 150

    HP OfficeJet T45, 710 Lexmark Z53 The IBM Printer The NEC Printer IBM 5577 NEC P2200 IBM 4039 16L NEC P3200 IBM Infor Printer 20 NEC P5300 IBM InfoPrint 32 NEC P6300 NEC P7300 The Lexmark Printer Other Printers Lexmark 4039 10R Lexmark 5700 Brother HL-1260 Lexmark Optra Color 45...
