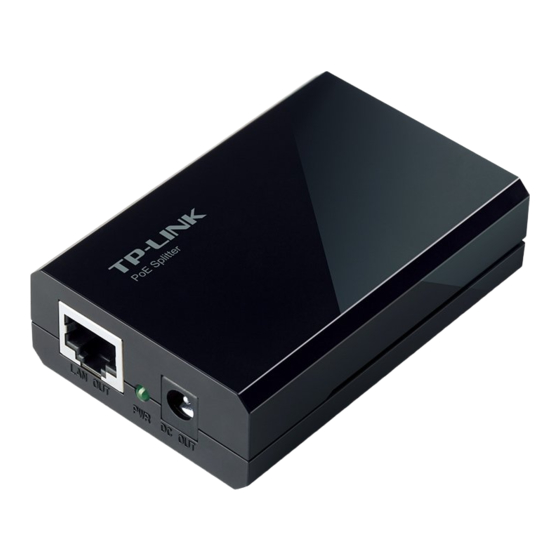

TP-Link TL-POE10R User Manual

TP-Link TL-POE10R User Manual

Poe splitter
Hide thumbs Also See for TL-POE10R:

Advertisement

Quick Links

Download this manual See also: Installation Manual
User Guide
TL-POE10R
PoE Splitter
Rev:3.0.0
7106503409

Advertisement

loading

Related Manuals for TP-Link TL-POE10R

Summary of Contents for TP-Link TL-POE10R

  • Page 1 User Guide TL-POE10R PoE Splitter Rev:3.0.0 7106503409...
  • Page 2 No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com...
  • Page 3 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 5: Table Of Contents

    CONTENTS Package Contents ..............1 Chapter 1 Introduction ............1 Overview of the Product ..........1 Features ..............2 Chapter 2 Identifying External Components..... 2 Chapter 3 Connecting the PoE Splitter ......3 Appendix: Specifications ............ 5...

  • Page 6: Package Contents

    Chapter 1 Introduction 1.1 Overview of the Product Thank you for choosing the TL-POE10R PoE Splitter. The PoE Splitter fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK’s TL-SF1008P or TL-POE150S, to deliver 12V, 9V or 5V Direct Current to the device which do not support PoE.

  • Page 7: Features

    1.2 Features Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3af standards Data and Power carried over the same cable Supports optional 5V DC, 9V DC or 12V DC power supply Supports Plug-and-Play for the devices ， without any configuration Elegant appearance with space-saving mini size Chapter 2 Identifying External Components Power-mode switch: POWER+DATA IN:...

  • Page 8: Chapter 3 Connecting The Poe Splitter

    PoE Injector can supply power. Chapter 3 Connecting the PoE Splitter You can use TL-POE10R PoE Splitter with PSE or PoE Injector to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
  • Page 9 Now, the Ethernet device can work normally with data and power. The topology of this network is as follows. Notebook PoE Switch With Wireless Adapter TL-SF1008P PoE Splitter TL-POE10R CAT5 UTP Cable (Power & Data) Power Cable CAT5 UTP Cable Wireless AP (Data)

  • Page 10: Appendix: Specifications

    Appendix: Specifications Normal Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3af Voltage Output DC 5V, 9V or 12V Power Output 10W(5V) 9W(9V) 12W(12V) Two 10/100Mbps RJ45 ports Ports One DC Power port Cabling Type RJ45 CAT 5 UTP cable Safety & FCC, CE Emissions Environmental and Physical...
