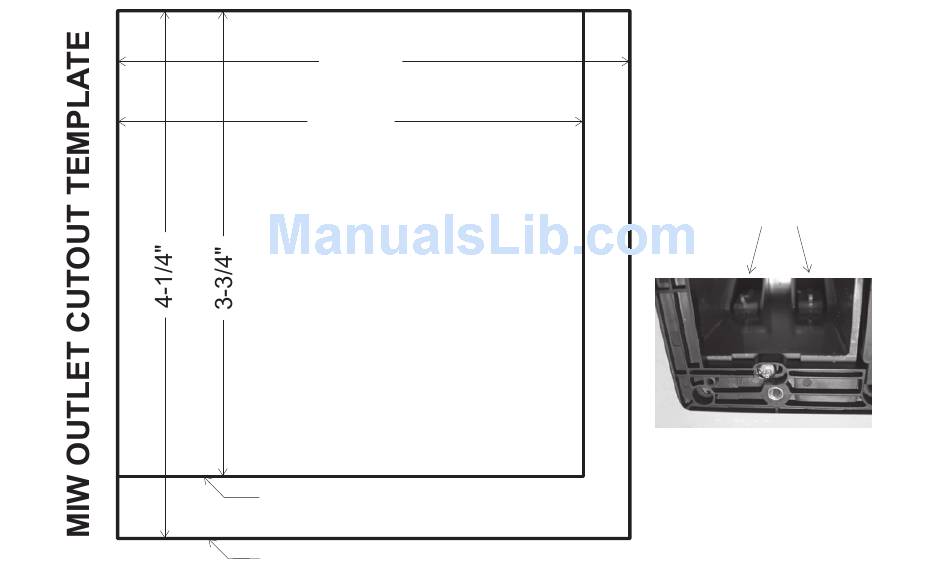

Panamax MIW-SURGE Installation Template

4-1/8"
3-3/4"
RECOMMENDED OUTLET BOXES:
Old work metal box: Raco 508 (remove
plaster ears and old work clips).
Old work plastic box: Carlon B114R
(remove MIW mounting ears).
New work metal box: Raco 355 (remove
MIW mounting ears).
New work plastic box: Carlon SC200DV
(remove MIW mounting ears).
old work cutout for use with Carlon B114R
old work cutout for use with MIW mounting ears
NOTE:
When using the Carlon
B114R with the MIW NEMA
5-15R outlet, the Carlon NM
wire retention tabs will have
to be pushed to the outside
of the outlet box in order to
clear the outlet enclosure.
NM wire retention tabs.
INS00848 ADDM REV A 10/08 1
