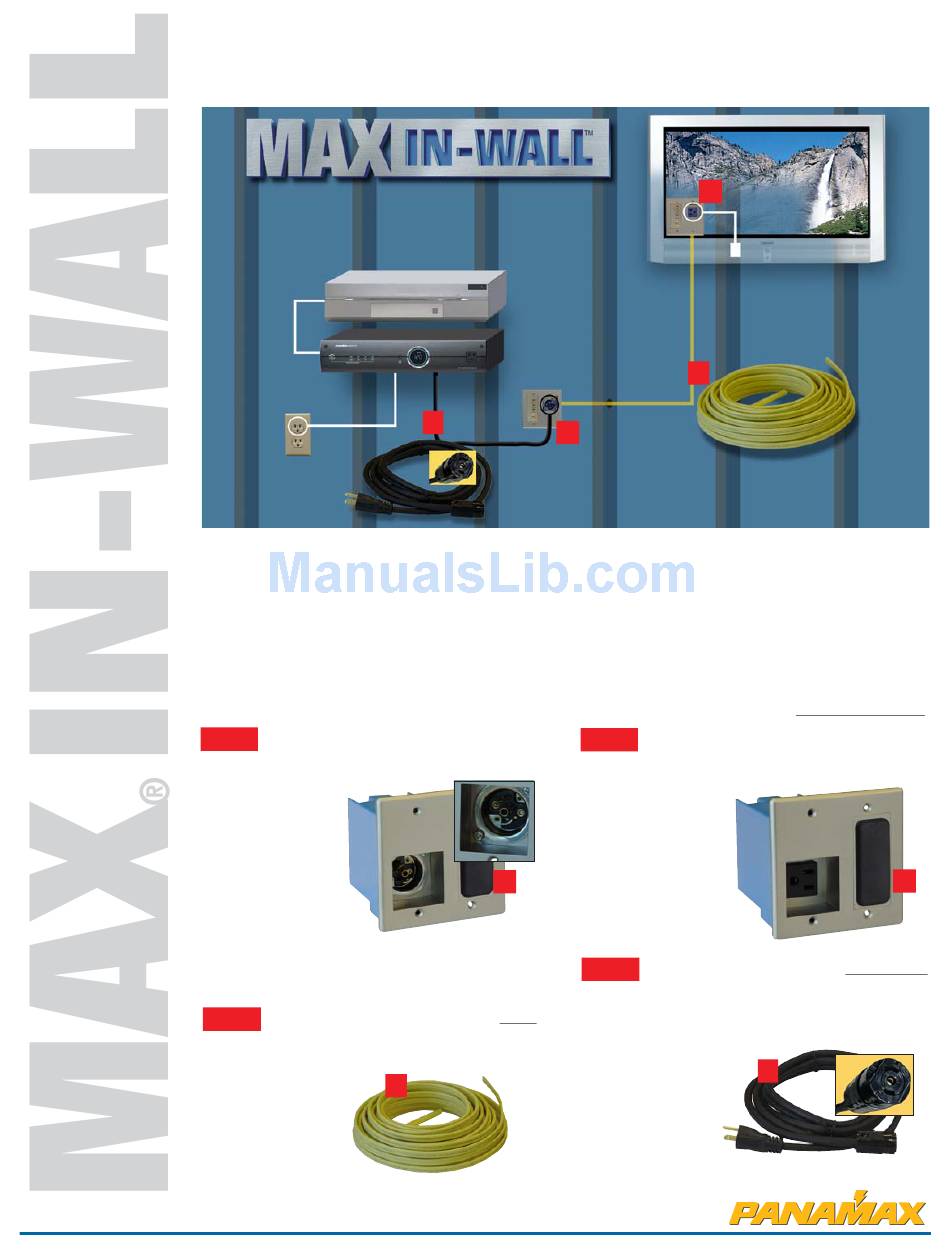

The Ultimate Power Solution for Remote Display
Devices Within a Home Theater System
MIW POWERKIT TL
The enhanced MAX
IN-WALL™ POWERKIT-TL is a four
®
component kit designed to provide the ultimate power
solution to remote display devices within a home theater
system. Taking advantage of the already installed EX
Component style power conditioner you can feed safe,
pure power from the main equipment rack to any remote
display device, amplifier or powered subwoofer.
Step 1
Install the POWER INLET FACEPLATE (PIF)
Install the Power Inlet Faceplate (PIF) behind or near the main equip-
ment rack.
Recessed AC power
inlet (Twistlock Connector)
Removable panel for signal
module (module not included)
Includes Retrofit style J- box
and mounting screws.
(For New Construction Adaption
see side 2).
Step 3
Install the IN-WALL POWER CABLE
An electrician runs the In-Wall Power Cable between the PIF and the
POF. This premium quality NM LISTED cable provides optimum power
transfer to the display device.
50 ft. length
12-2 NM Rated with ground
800-472-5555 or 707-283-5900
© 2006 Panamax, Inc. Panamax, MAX and the Panamax logo are registered US trademarks of Panamax.
D
A
A
C
Fax - 707-283-5901
B
C
The MIW-POWERKIT-TL offers UL approved, code compliant
solutions providing safe, clean AC power and signal with
Isolated Ground Reference (IGR) to remote displays in a dis-
creet manner that meets the customer's aesthetic expecta-
tions and improves picture and sound quality.
MIW-POWERKIT-TL
Model:
US $
SELL PRICE
Step 2
Install the POWER OUTLET FACEPLATE (POF)
The power outlet faceplate (POF) provides additional filtration to eliminate
any radiated noise that may have been picked-up along the way.
Recessed AC power outlet
Noise filtration
Removable panel for signal
module (module not included)
Includes Retrofit style
J-box & mounting screws
(For New Construction Adaption
see side 2).
Step 4
Connect the
AC POWER CORD
The AC Power Cord safely connects to the special twist lock inlet wall
receptacle bringing the power from the power conditioner to the remote
flatscreen or projector. The MIW POWER CORD is engineered to provide
optimum power transfer and shield-out performance robbing noise.
Twistlock Connector
National Electrical Code (NEC)
compliant
12 ft. length
Shielded against EMI/RFI noise
12 gauge OFC conductors
The Power Specialists Since 1975
www.panamax.com
299
.95
B
D
®
L505 REV. C 1/06
