Panamax MIW-POWERKIT-TL Installation Instructions
MIW-POWERKIT-TL A four part kit designed specifically
to provide the ultimate power solution to remote
display devices within a home theater system.
VIDEO PROCESSOR

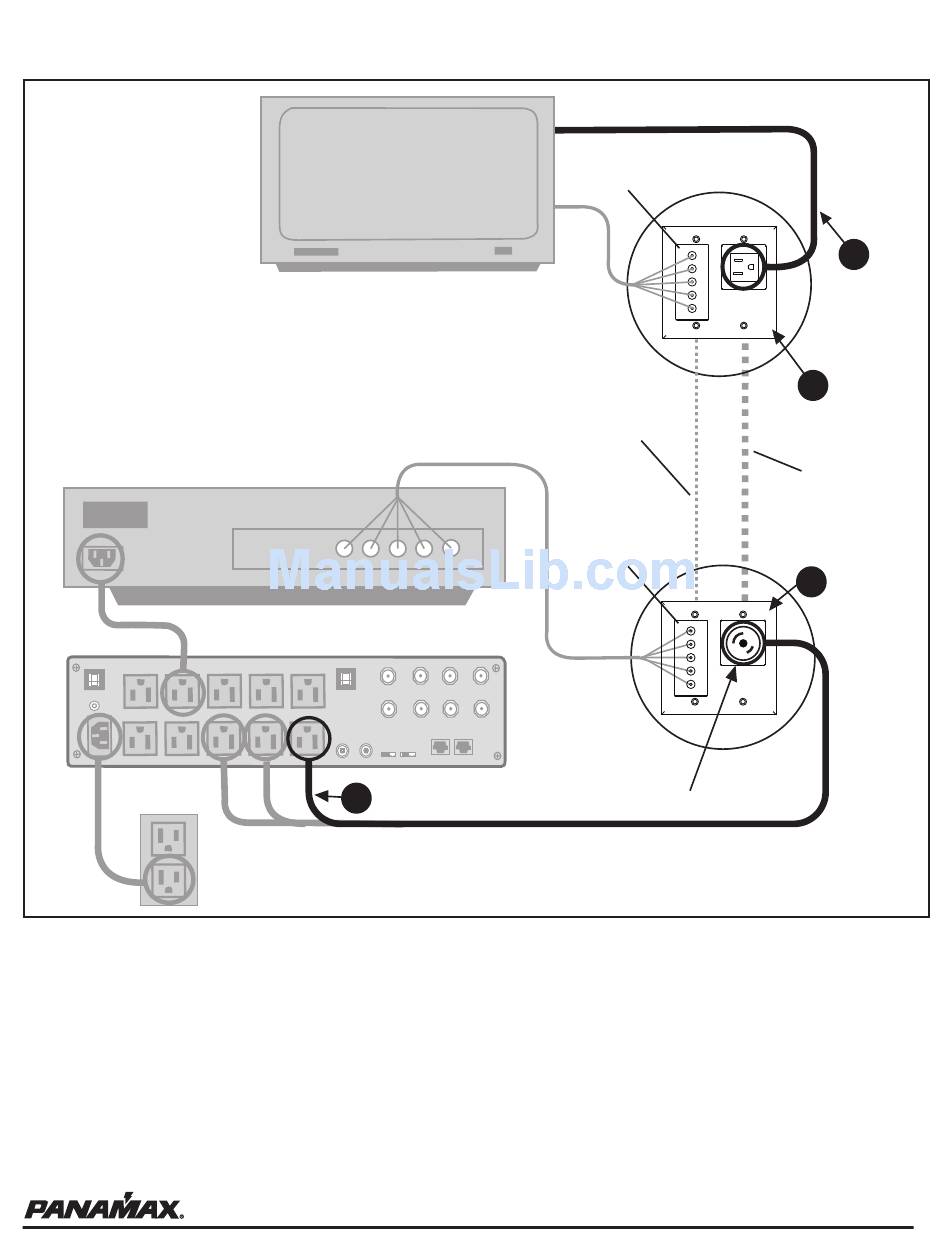

1. AC POWER CORD: This 10 ft. Panamax Pinnacle Power Cord is engineered to provide optimum power transfer, and shield-out
performance robbing noise.
2. POWER INLET FACEPLATE: The unique twist-lock connector mates with the AC POWER CORD to provide a safe, secure and
National Electric Code (NEC) compliant installation. The modular signal connection allows for a variety of installation options.
3. POWER OUTLET FACEPLATE: This modular interface has added noise filtration to eliminate any unwanted radiated interference.
4. MAX POWER CORD (MPC-IEC): 24 inch IEC Power Cord.
1690 Corporate Circle, Petaluma, CA 94954 • Fax 707-283-5901 • www.panamax.com
Remote Display Device
(Plasma TV, DLP, etc.)
MAX
5500
®
1
AC POWER CORD WITH TWISTLOCK CONNECTOR
Plug into any receptacle for customized filtration needs.
Signal Line Module
Sold Separate
Inwall
Signal Line
Sold Separate
Signal Line Module
Sold Separate
4
MPC-IEC
POWER CORD
3
POWER
OUTLET
FACEPLATE
Inwall
Romex
(not included)
2
POWER
INLET
FACEPLATE
INS0736 REV. F
7/06
