MIW-POWER-PRO-PFP INSTALLATION INSTRUCTIONS
CAUTION:
Only for use with 15 Amp circuits utilizing a minimum of 14 AWG.
Make sure the circuit is not live before installation. If you are unsure how
to perform this task, please contact an electrician.
STEP 1:
Select a location close to the equipment. In the case of a flat panel
display, the recommended location is one that is behind the device
and hidden from view once the Plasma TV is mounted. Cut a 4"
wide by 3 3/4" high hole in the wall for the outlet box.
STEP 2:
Run the building wire (e.g. Romex) through a rear opening in
the outlet box (not included). No more than 1" of wire sheath
should extend into the outlet box. 3" of wire should be able to
extend beyond the opening of the outlet box. Install the outlet
box in the hole.
STEP 3:
Strip building wire. Using the included wire nuts, first connect
the ground wires - green insulated on the MlW-Power-Pro-PFP
and bare copper on the building wire. Then connect the neutral
wires (white), then the hot wires (black).
STEP 4:

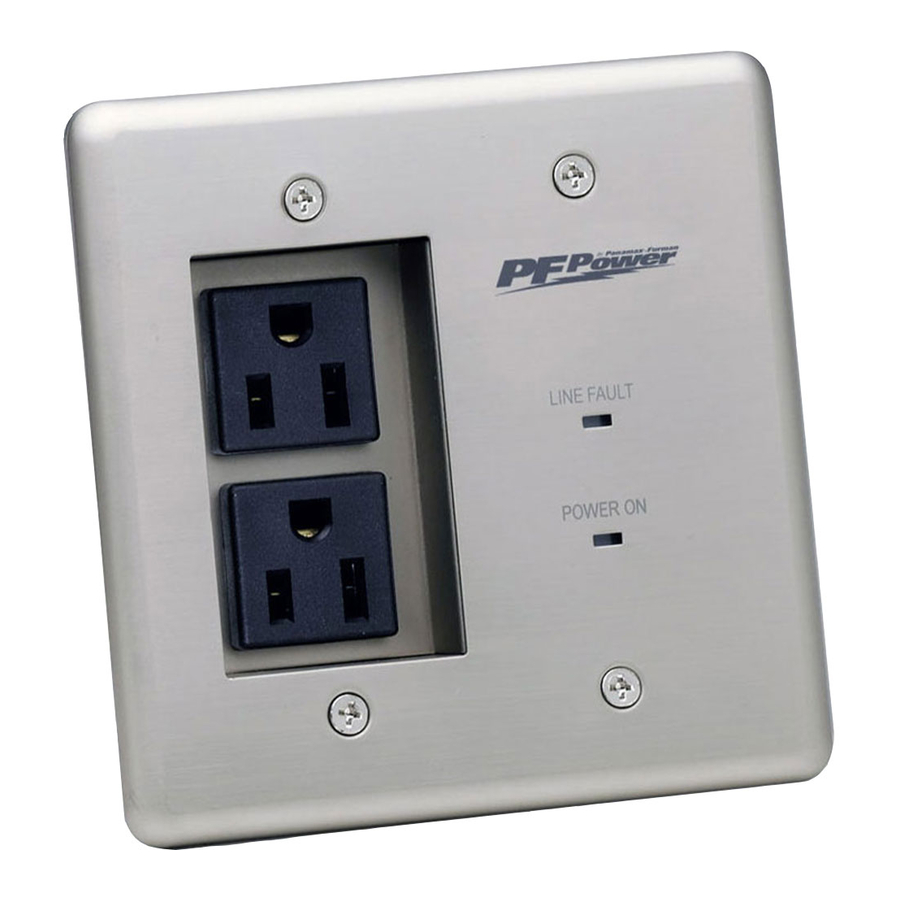

Neatly fold the AC wires as you install the MIW-Power-Pro-PFP
in the outlet box and secure with the included screws.
STEP 5:
Turn the power on to the circuit. The blue Power indicator
should light up, indicating the outlet is ready for use.
NOTES:
In the event of a hazardous voltage situation, the red Unsafe
Voltage indicator will light up until the voltage returns to a safe
level.
Signal Protection Module Usage:
Panamax In-Wall signal protection modules (sold separately),
while not necessary for surge protection in the Max In-Wall
Power-Pro-PFP, may be used to provide a clean looking interface
for the signal lines. When used in the proper manner the modules
also provide total protection to the connected equipment.
(Outlet boxes
not included)
INS00840 REV E 02/10
