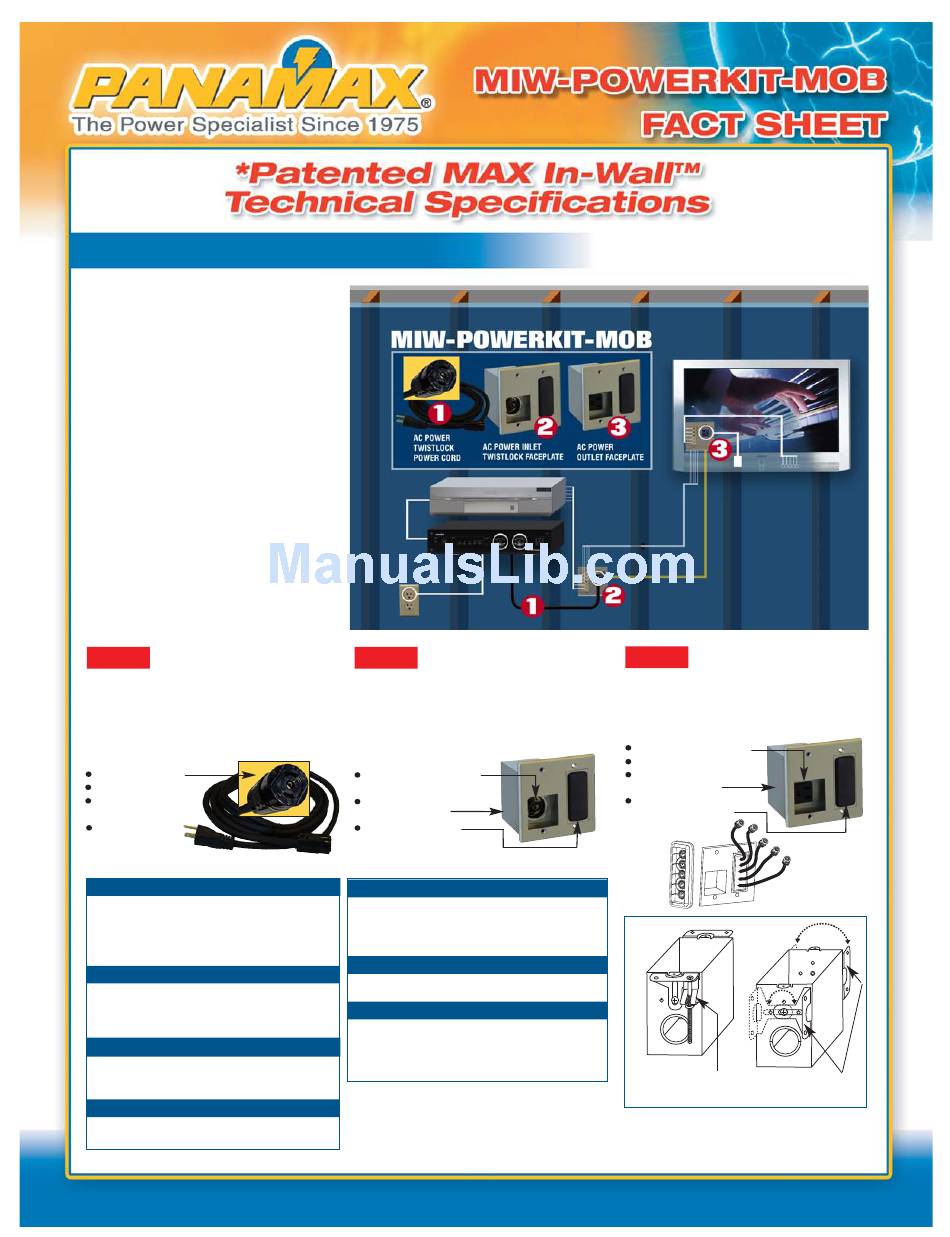

The MAX
IN-WALL™ POWERKIT-MOB with metal outlet
®
boxes is the ideal solution for providing power and
audio/video signals to remote display devices, amplifiers
or powered subwoofers. It allows you to take advantage
of the clean, protected power supplied to the head-end
equipment by a Panamax MAX 5000 Series power condi-
tioner by routing that same power through the walls to
the remote device. Signal lines are handled in a similar
manner by passing them through the MAX In-Wall face-
plates and the wall cavity, and then connecting them
directly to the source and remote devices. Optional signal
line modules may be installed in the faceplates to provide
additional protection and/or a clean, finished appearance.
The end result is a discreet installation that hides all the
signal line and power cables and meets the customer's
aesthetic expectations.
The MIW-POWERKIT-MOB offers a CSA (US) approved,
code compliant solution for providing audio/video signals
and safe, clean AC power to remote devices. The metal
outlet boxes have been specifically designed for use in
both new and retrofit construction. When used with the
appropriate conduit, the kit may be used in commercial
installations as well as residential applications where
Romex and plastic boxes do not meet code requirements.
AC POWER CORD
STEP 1
The specially designed 12 foot twist lock power cord
plugs into the component product and extends the power
into the wall, providing a discrete, code-compliant Path to
Perfect Sound & Picture™ to any remote device. The
Pinnacle Power Cord is engineered to provide optimum
power transfer and shield-out performance robbing noise.
Twistlock Connector
12 ft. length
Shielded against
EMI/RFI noise
12 gauge OFC
conductors
GENERAL
Product Name........MAX® IN-WALL™ POWERKIT-MOB
Part Number................................MIW-POWERKIT-MOB
Retail Price........................................................$299.95
Application....................Custom Home Theater Systems
AC CIRCUIT
AC Outlets, Total...........................................................1
CSA (US) Listed.......................................................YES
AC POWER CORD
Length....................................................................12 ft.
Connectors..............................NEMA 1-15P and ML-2R
POWER INLET FACEPLATE
AC Connector.............................................NEMA ML-2P
Signal Line Protection.......Not Included / Modules Sold Separately
1690 Corporate Circle, Petaluma, CA 94954
POWERKIT-MOB
POWER INLET FACEPLATE
STEP 2
The power cord safely connects to the special twist lock
inlet wall receptacle. The unique twist-lock connector
mates with the AC Power Cord to provide a safe, secure,
and National Electrical Code (NEC) compliant installation.
The modular signal connection allows for a variety of
installation options.
Recessed AC power outlet
Includes metal box and
mounting hardware
Removable panel with
scored rubber plug for
cables or to insert module.
(Modules sold separately).
POWER OUTLET FACEPLATE
AC Connector............................NEMA 5-15R Receptacle
Noise Filtration.................................................Capacitive
Signal Line Protection.......Not Included / Modules Sold Separately
WARRANTY
Product Warranty..................................................3 Years
ORDERING INFORMATION
Individual Unit UPC...........................0 50616 00761 0
Package Type................................................Retail Box
Units per Master Carton..............................................4
Master Carton UPC..........................5 00 50616 00761 5
NOTE: The noise filtration level will depend on the MAX component
the MIW-POWERKIT-MOB is installed with. See the specifications
section in the instructions for the MAX product in your system.
*PATENT NO. D495,301
The Power Specialists Since 1975
STEP 3
To finish the installation, route the signal lines, install
code compliant conduit & AC wiring (not included)
between the Inlet and Outlet Faceplates and make the
electrical connections.
Recessed AC power outlet
Noise Filtration
Includes metal box and
mounting hardware
Removable panel with scored
rubber plug for cables
or to insert module.
(Modules sold separately).
Inside of
Rubber
Plug is
Scored
for Cables
Expansion clamp
is used for retrofit.
One box works in both new and retrofit construction projects.
800-472-5555
www.panamax.com
POWER OUTLET FACEPLATE
Metal Outlet Box
Bracket can be rotated for
use in new construction.
L515 REV. A 12/04
