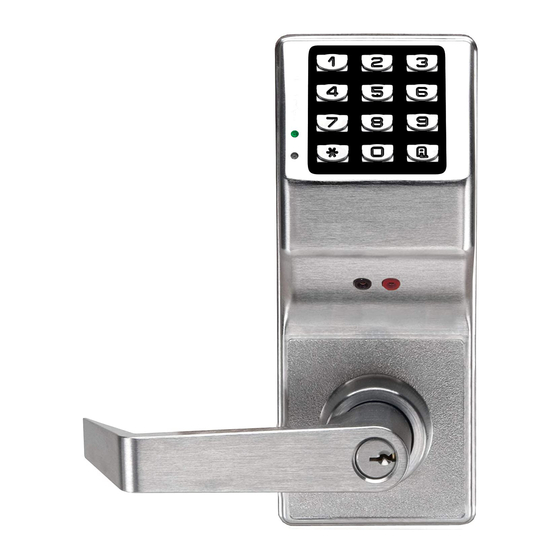

Alarm Lock DL2800 Programming Instructions Manual

Trilogy series
Hide thumbs Also See for DL2800:
Table of Contents

Advertisement

Quick Links

See also: Programming Instructions Manual

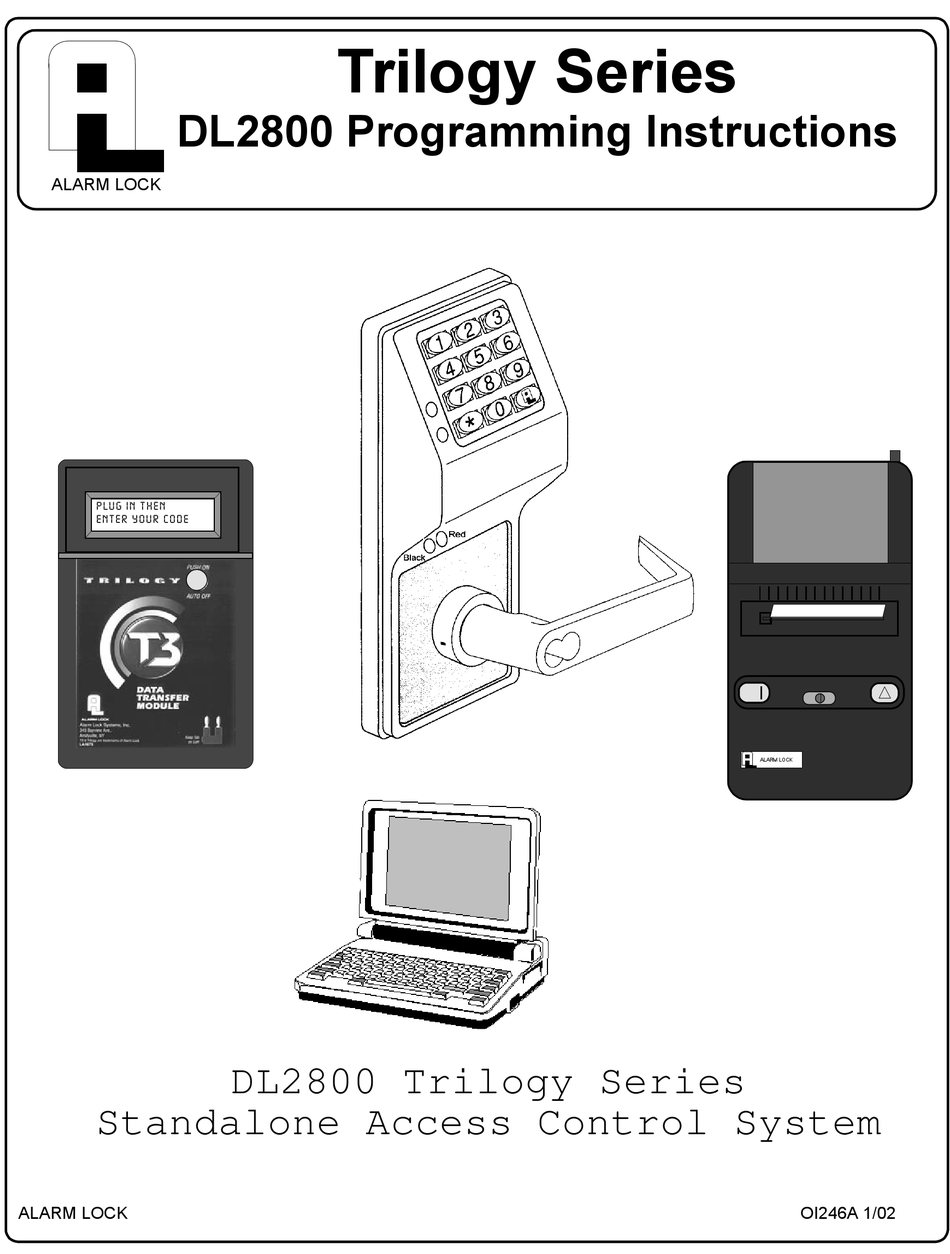

Trilogy Series
DL2800 Programming Instructions
ALARM LOCK
PLUG IN THEN
ENTER YOUR CODE
ALARM LOCK
DL2800 Trilogy Series
Standalone Access Control System
ALARM LOCK
OI246A 1/02
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL2800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alarm Lock DL2800

Summary of Contents for Alarm Lock DL2800

  • Page 1 Trilogy Series DL2800 Programming Instructions ALARM LOCK PLUG IN THEN ENTER YOUR CODE ALARM LOCK DL2800 Trilogy Series Standalone Access Control System ALARM LOCK OI246A 1/02...

  • Page 2: Table Of Contents

    Features ----------------------------------------------------------------------------------------------------- 4 Audit Trail ------------------------------------------------------------------------------------------------- 4 User Features ------------------------------------------------------------------------------------------- 4 150 Scheduled Events -------------------------------------------------------------------------------- 4 Keypad and Download Programming ------------------------------------------------------------- 4 AL-IR1 Infrared Printer -------------------------------------------------------------------------------- 4 AL-DTM Data Transfer Module --------------------------------------------------------------------- 4 Additional Features ----------------------------------------------------------------------------------- 5 Programmable Timeout Functions ----------------------------------------------------------------- 5 User Associated for more than one Group ------------------------------------------------------- 5 Service Code -------------------------------------------------------------------------------------------- 5 Keypad Lockout ----------------------------------------------------------------------------------------- 5...
  • Page 3 Programming Functions ---------------------------------------------------------------------------- 11 New Master Code --------------------------------------------------------------------------------------- 11 Add/Delete/Change User Codes -------------------------------------------------------------------- 11 Disable User ---------------------------------------------------------------------------------------------- 11 Enable User----------------------------------------------------------------------------------------------- 11 User Enable with Timeout----------------------------------------------------------------------------- 12 User Lockout Mode ------------------------------------------------------------------------------------- 12 Change User Program Level Ability ---------------------------------------------------------------- 12 Enable User 300 (Service Code) -------------------------------------------------------------------- 12 Erase All Users Except the Master Code --------------------------------------------------------- 12 Clear All Schedules and Timeout Functions------------------------------------------------------ 13 Clear All Timeout Functions -------------------------------------------------------------------------- 13...

  • Page 4: Features

    Optional hand-held infrared printer may be used to print the Audit Trail and User Code List AL-DTM Data Transfer Module Optional Data Transfer Module. Use Alarm Lock’s AL-DTM to easily transfer program data between locks and a PC running DL-WINDOWS software (version 2.93 or later). Easily transfer Audit Trail from multiple locks and then view or print each Audit Trail from a computer.

  • Page 5: Additional Features

    Programmable Timeout Functions Keypad Lockout Timeout functions allow enabling/disabling users and Programmable number of attempts before keypad lockout. enabling passage mode for a time period without requiring Programmable lockout time. the user to return to the lock. Non-Volatile Memory Users Associated for more than one group All programming is stored in non-volatile memory.

  • Page 6: Wiring And Power Up

    LED will light amber, and the sounder will sound for 4 1. Disconnect the battery box. seconds. The DL2800 uses 5 AA-size 1.5 volt alkaline 2. Press any key to insure locks capacitor is fully discharged. batteries. The lock will function with weak batteries; however 3.

  • Page 7: Preliminary Information

    52 and 53). It is recommended that all programming be prepared in advance using the DL2800 Programming Sheets for reference while programming (see User Code and Schedule Recording sheets at the back of this manual), then be secured when finished.

  • Page 8: Getting Started

    Battery Installation Remove the back cover and battery box assembly. Install batteries as per the key on battery box top cover. Close and re-install the battery box. The lock will beep 3 times. To load the default program press any key within 5 seconds, the lock will beep slowly while the default values are loaded and beep rapidly upon completion.

  • Page 9: User Programming

    Audit Trail System. Test each new User Code added by entering the code at the keypad. Optional ALARM LOCK SYSTEMS, INC Print the Lock’s Time, Date and Day programming to VERSION DL26 org REC ensure the clock is set correctly.

  • Page 10: Methods Of Programming

    “Beep” End of Exit Sequence “BeepBeep” Downloading TO SERIAL PORT (DB-9) E.G. <COM 1> The DL2800 lock can also be programmed using a computer and Alarm Lock's AL-PCI NOTE: Observe Tab Direction DL-WINDOWS Software. when inserting cable into DL3500 Lock.

  • Page 11: Programming Functions

    USERS [ _ _ _ _ _ _ ] [ _ _ _ _ _ _ ] 1. New Master Code (User Number 1) • Master Code must be 6 digits-only NOTE: Following a power up, Function 1 (New Master Code), must be accessed before any other programming function is permitted.

  • Page 12: User Enable With Timeout

    USERS [ _ _ _ ] [ _ _ _ ] 5. User Enable with Timeout (Enter Timeout, XXX Hours) (User Number) (XXX Hours) • User Numbers must be between 2-200 (plus 299 and 300). • Hours must be between 1 - 999 User Lockout Mode Enables/Disables all User Codes (Except User 1 Code) from operating the lock.

  • Page 13: Clear All Schedules And Timeout Functions

    CLEAR FUNCTIONS 12. Clear All Schedules and Timeout ; 1 2 ; 0 0 0 : Functions Clears all programmed Schedules and all Timeout Functions. Includes Schedule Functions 72 to 93. Includes Timeout Functions 5, 25 to 34 and Function 47. NOTE: Up to 4 Timeout Functions may be pending at any one time.

  • Page 14: Group Disable/Enable With Timeout

    NOTE: Clear All Timeout Functions by entering Function 13. GROUPS Group Disable/Enable with Timeout (Enter Timeout, XXX Hours) • Hours must be between 1 - 999 • Enter the functions below to Enable/Disable groups for the amount of time entered in hours.

  • Page 15: Set Date

    CLOCK SETTINGS 38. Set Date [ _ _ _ _ _ _ ] ; 3 8 (Date) • Use month day year format - MMDDYY - single digit months and days are entered with a preceding zero. • Enter Only the last two digits of the year. For Example: March.

  • Page 16: Clock Adjust

    CLOCK ADJUST Clock Adjust • Number of seconds to Speed Up/Slow Down clock each day must be 0-55 seconds. Always consider the current setting when using this function. (Use of this function is not cumulative.) For example, if the clock needs to be sped up 10 seconds per day and the current setting is 10, program 20 seconds using Function 43.

  • Page 17: Passage Mode Enable/Disable - Schedule Will Not Override

    49. Disable Passage Mode ; 5 0 : 50. Return Lock to Normal Passage Mode Schedule (The DL2800 will lock or unlock depending on the current schedule) See Scheduled functions 72 and 73 for scheduled passage mode. NOTE: PASS TIME Pass Time Use the functions below to change the pass time to 5, 10 or 15 seconds.

  • Page 18: Printer Functions

    4 5 6 7 8 9 : 0 ; DL2800 to Printer - Side View DL2800 to Printer - Front View Figure 1 Figure 2 ; 5 5 : 55. Print Audit Trail Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2. 20 events will print at a time;...

  • Page 19: Al-Dtm Door Number

    Door Number) • Door Number must be between 1- 96. For use with Alarm Lock’s AL-DTM Data Transfer Module. Using the AL-DTM up to 48 locks (96 for AL-DTM2) can be Downloaded/Uploaded and History LOGs can be retrieved. Enter a door number for each lock. After configuring the AL-DTM, using...

  • Page 20: Enter Key

    67. Reserved 68. Reserved ENTER KEY Enter Key Enable/Disable (Allows Programming of Codes that Match the 1st digits of other Codes) • When this function is enabled the user must press the key after a user code entry, this allows user codes which are subsets of other user codes. Example: 1 2 3 : is a valid user code;...

  • Page 21: Scheduled Group Enable/Disable

    NOTE: Clear All Schedule and Timeout Functions by entering Function 12. SCHEDULES Scheduled Group Enable/Disable Use the functions below to Enable/Disable Groups at the time programmed. • For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, 0 for all days of week.

  • Page 22: Quick Schedules

    QUICK SCHEDULES Quick Schedules - Enable Group • Group number must be 1-4 Enter the number of the group that is to be enabled for the time specified for the Quick Schedules below: 84. Business Quick Schedule ; 8 4 [ _ ] 7AM-5PM, Monday - Friday (Group)

  • Page 23: Scheduled Group 4 Enable - Group 1 Activated

    90. Reserved 91. Reserved Scheduled Group 4 Enable (Group 1 Activated) • For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, 0 for all days of week.

  • Page 24: Using Advanced Features

    Note: Advanced User Programming The example to add Add a User that is a member of Group 2 & Group 3 Users to Group 2 and Program a User Code of 789 that is a member of Group 2. Refer to Function 2 (page 11). Use Function 2, Group been and add the new user as User 101 (Users 101-150 are members of Group 2):...

  • Page 25: Programming Record Sheet

    Default Values are shown in parentheses. Function Function Name Programming Number(s) 40/41 Daylight Savings Time Enable/ Enable Disable (Enable) Disable 43/44 Clock Adjust 0-55 seconds Seconds 51/52/53 Pass Time 5 sec 10 sec 15 sec (5 sec) AL-DTM Door Number 1-48 Door Number Number of Attempt Before Lockout...

  • Page 26: User Code Record Sheet

    User Number User Code Group Program Set User Name (1-200, 299 and (3-6 digits) Association Ability 300) Note: For a complete list of user codes obtain a print out from either the remote printer (Program Function 56) or using the DL-WINDOWS Downloading Software.

  • Page 27: Schedule Record Sheet

    Day(s) Up to 150 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3=Tuesday, 4 Wednesday Function Number Time Function Name 5 = Thursday, 6 = Friday, 7=Saturday, 8 = Monday - Friday 9 = Saturday and Sunday, 0=All days of the week Enter time of day in 24 hour format (00:00- 23:59)

  • Page 28: Limited Warranty

    ALARM LOCK is not an insurer of either the property or safety of the user's family or employees, and limits its liability for any loss or damage including incidental or consequential damages to ALARM LOCK's original selling price of the product regardless of the cause of such loss or damage.
