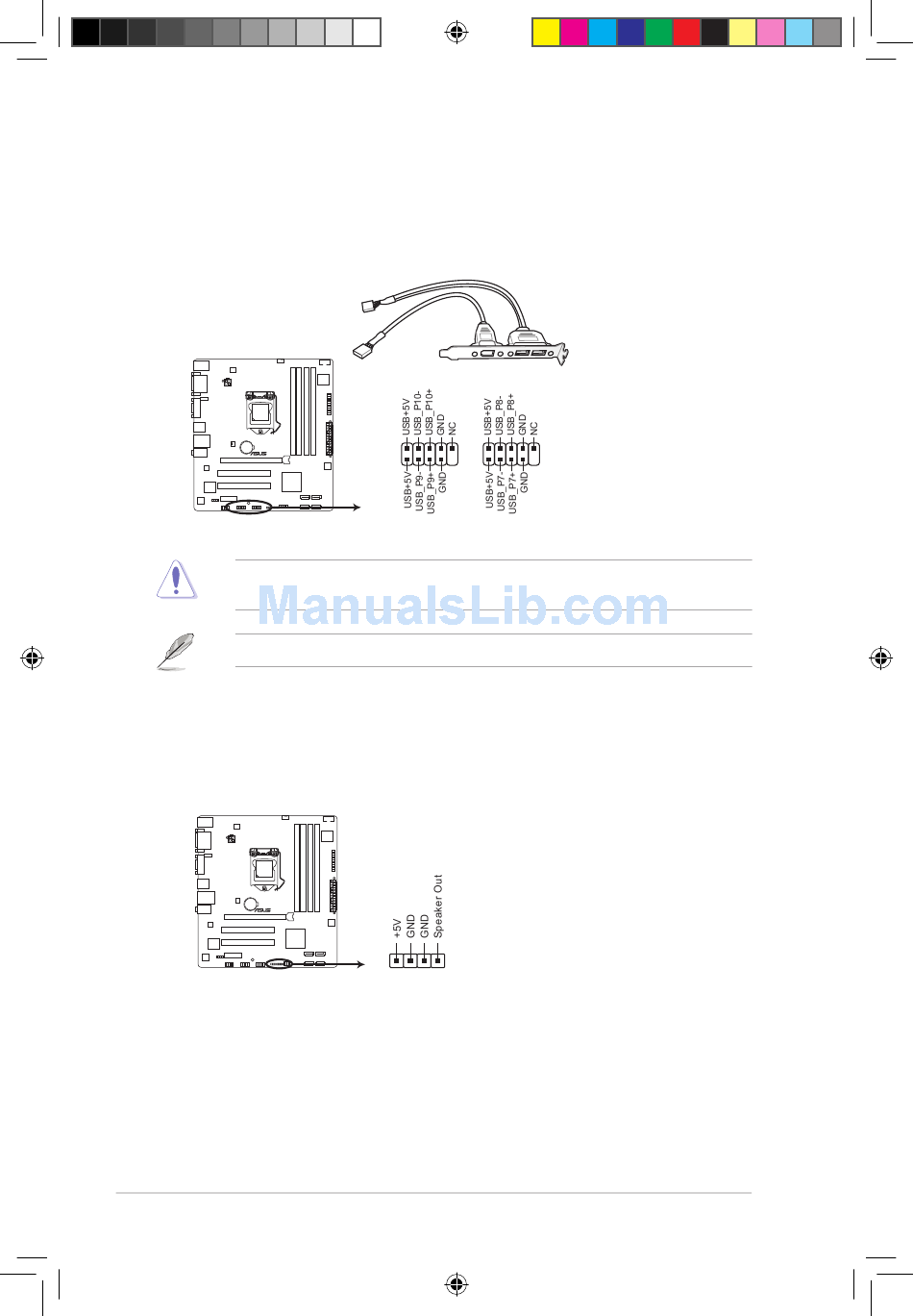

8. USB 2.0 connectors (10-1 pin USB78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specification that supports up to
480Mbps connection speed.
P8H61-M2/TPM/SI R2.0
P8H61-M2/TPM/SI R2.0 USB2.0 connectors
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
9. Speaker connector (4- pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P8H61-M2/TPM/SI R2.0
P8H61-M2/TPM/SI R2.0 speaker out connector
