Instruction Manual
Dear Customers
Thanks for purchasing this TFT-LCD TV/Monitor. We strongly recommend
that you carefully read the safety and operation instructions before
operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL
WARNINGS on your TFT-LCD TV/Monitor and in this manual.
Safety information
__________________________________________________
Note:
Before connecting the AC power cord to the DC adapter outlet, make sure
that the voltage designation of the DC adapter corresponds to the local
electrical supply. If you are unsure about your power supply, please ask
the local power company.

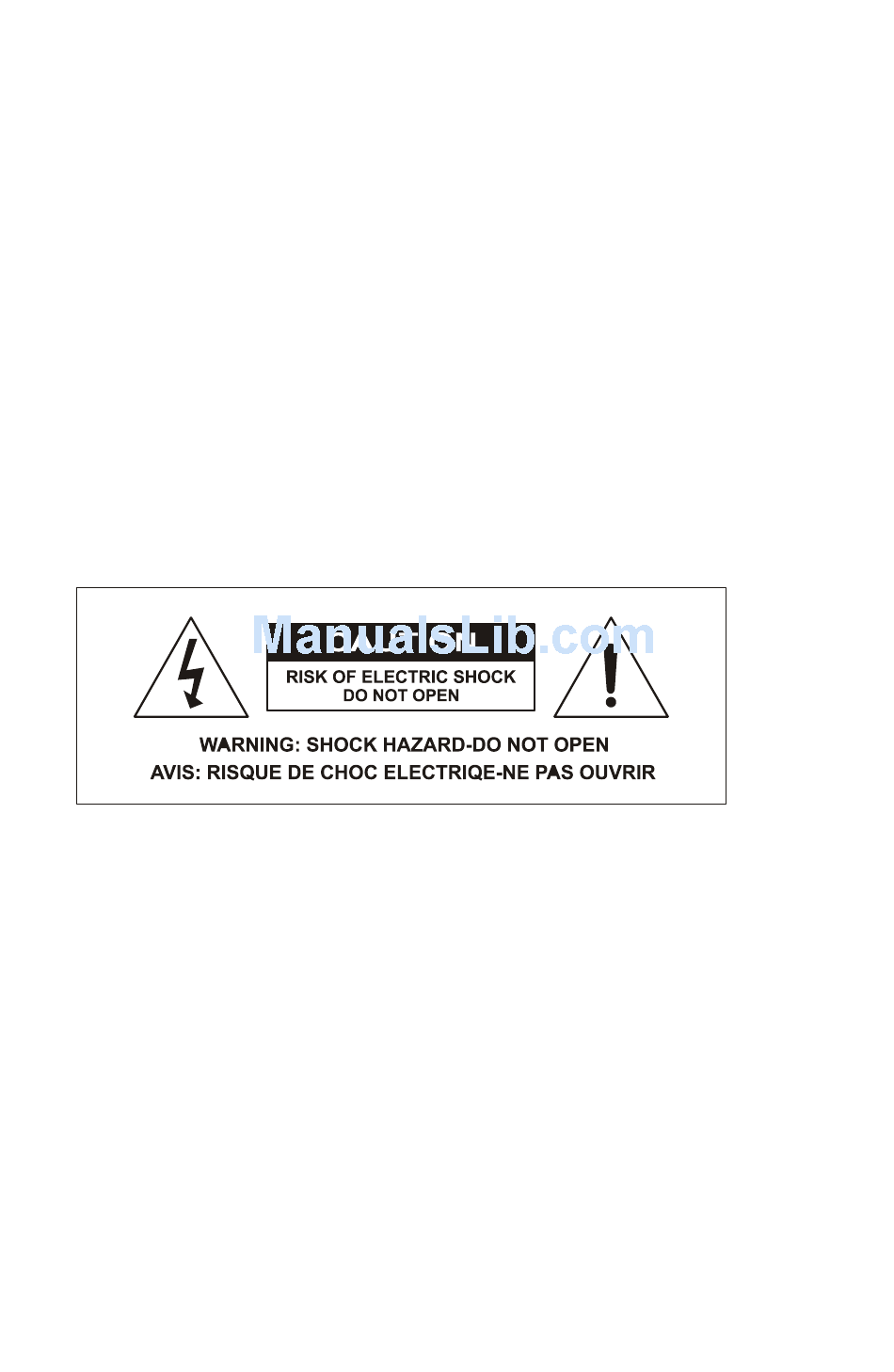

Caution:
To avoid electric shock, never touch the inside of the LCD TV/Monitor. Only
qualified technicians should open the case of the LCD TV/Monitor.
Warning:
Do not defeat the safety purpose of grounding-type. A grounding type plug
has two blades and a third grounding pin. The third pin is provided for your
safety. If the plug does not fit, ask the electrician to replace the obsolete
outlet. Do not modify the plug!
To reduce the risk of fire or electric shock, and annoying interference, use
the recommended accessories only.
1
Advertisement
Table of Contents
Related Manuals for Akura TFT LCD TV/Monitor
Summary of Contents for Akura TFT LCD TV/Monitor
-
Page 1: Safety Information
Dear Customers Thanks for purchasing this TFT-LCD TV/Monitor. We strongly recommend that you carefully read the safety and operation instructions before operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your TFT-LCD TV/Monitor and in this manual. Safety information __________________________________________________ Note: Before connecting the AC power cord to the DC adapter outlet, make sure... - Page 2 Precautions ________________________________________________________ Please read the below precautions carefully before operating the unit. Power cord protection: Never use your LCD TV/Monitor if the power cord has been damaged. Do not put anything on the power cord, and keep the power cord away from where people can easily trip over it.
- Page 3 Keep away from water/magnetic fields: Do not expose the LCD TV/Monitor to rain or use it near water source. If the LCD TV/Monitor got wet, unplug it and contact an authorized dealer immediately. Do not clean the front panel with Ketone-type materials, ethyl alcohol, toluene, acid, methyl, or chloride since they may cause damage on panel.
- Page 4 Unpacking ____________________________________________ Please make sure that the following items are included with your LCD TV/Monitor. If any item is missing, please contact your dealer. TFT LCD TV/ Monitor Remote control Operation manual DC adapter Power cord Car Cord RCA cable (Optional)
-
Page 5: Table Of Contents
Table of content View of the TV/Monitor Remote control reference guide (1) Remote control function (2) Remote control battery installation and cautions III. Installation and connection TV/Monitor screen operation (1) Basic operation (2) View of the TV plays (3) View of the AV signal sources (4) View of the TELETEXT program (Optional, if the unit has this function.) (5) PC screen... - Page 6 View of the monitor Side view Front view Back view Remote sensor 12. VGA jack Power indication light 13. SCART jack Headphone jack 14. S-video jack CH+/up direction button 15. Audio in (right) jack CH-/down direction button 16. Audio in (left) jack VOL up/RIGHT direction button 17.
- Page 7 II. Remote control reference guide (1) Remote control function 1. DVD open/close 2. Video out mode button 3. SLEEP button 4. 0-9 Numerical button 5. Program play button 6. Volume down button 7. Unit system menu button 8. Display status message button 9.
- Page 8 ● TELETEXT BUTTONS (If TV has teletext function. You may enjoy it by using these buttons) Name Function Name Function To select TXT/TV mode To show the sub page Enter into TXT list mode Keep the page display Display the hidden INDEX Menu display information...
-
Page 9: Installation And Connection
2. Don‟t attempt to recharge, short-circuit, disassemble, heat or throw the batteries into the fire. 3. Always replace both batteries at the same time. Never mix new and old batteries or batteries of a different type. 4. If you don‟t intend to use the remote controller for an extended period, remove the batteries to prevent possible leakage and corrosion. -
Page 10: Tv/Monitor Screen Operation
Use 75Ωcoaxial cable plug or 300-75Ωimpedance converter to plug in antenna input terminal on the rear of the cabinet. VHF antenna UHF antenna Input terminal of 75ΩCo-axis cable Mixer antenna Co-axis antenna plug Antenna in jack Ω Co-axis cable Connect the audio sources (Including DVD, VCDR, CAMCORDER and PC) to the proper AUDIO input jacks „L‟... - Page 11 blue color . Press the POWER or STANDBY button again to switch off the power, and the light will be in red color. The Picture setup, Sound setup, Previous channel can be memorized before you switch off the TV/Monitor. The TV/Monitor will re-start under the previous state when you switch on it again.
- Page 12 displayed on the screen as followed: Select the suitable input to pickup the AV signal. Input Source Press P+ or P- button to select source, then press Video V + button to confirm your selection. Or press DVD S-Video Button on the remote control to select DVD source directly.
-
Page 13: Menu Setting And Adjustment
V. Menu setting and adjustment VIDEO MODE SETTING Press the MENU button on the remote control, there will be a menu displayed on the screen as below: Video Picture Mode : Standard Brightness Contrast Saturation Sharpness Color Temp. : Standard Advanced Move Select... - Page 14 PC MODE SETTING Under PC mode, after connect VGA cable, press the MENU button on the remote control, then select video setting. Use P+/P- to select the “Advanced” menu, press the V+ button, the below will display on the screen: Image Auto Config.
- Page 15 Move Select Exit When the cursor is on the line of “Image Position”, press V+ to enter to set the image in the central position, as followed: Image Position Move Select Exit After the setting, press the MENU button to return to the root menu or exit the setting AUDIO MODE SETTING Press the MENU button on the remote control, and then press the P- button...
- Page 16 Balance Move Select Exit On this menu, the Audio setting icon of is in blue color. Press V+ firstly to enter into the “Base” menu, press the P+ or P- button repeatedly to select the sound mode from Base, Treble, Balance. After select the sound mode, you can use the V- or V+ button to adjust the Value of each item from 0 to 100 or Balance from -50 to 50 for each sound Mode.
- Page 17 On this menu, the Time setting icon of is in blue color. Press the V+ button for the first time to remove the cursor on the line of “Clock enable On”, you can select On or Off by press the V+ or V- button repeatedly. After selected “Clock enable: On”, use the P- or P+ button to select the item of Set Time, TurnOff Time, TurnOn Time, Switch Time, Switch Channel or TurnOn Channel, and then, input the accordingly value to set each item.
-
Page 18: Auto Search
(2) Color System: Select “Color System”, press V-/V+ buttons repeatedly, it will select at AUTO, PAL or SECAM. (3) Audio System: Select “Audio System”, press V-/V+ buttons repeatedly, it will select at DK, I, L or BG. Skip: Select “Skip”, after setting to “On”, the channel will not be selected by Channel Up/Down keys. - Page 19 the V-/V+ button repeatedly until you search a required station. Press the MENU button to save the station. (8) Channel Swap Select the “Channel Swap”, and then press the V+ button, the screen will display: Tuner/Channel Swap From Swap To Perform Swap Move Select...
- Page 20 5. OPTIONS MODE SETTING Press the MENU button on the remote control to display the menu, and then press the P- button to select the option setting, and the menu will be shown on the screen as below: Options Language Reset Blue Screen OSD Timeout...
-
Page 21: Dvd Player Operation
VI. DVD PLAYER OPERATION a. Basic play Press the TV/AV button on the unit or the remote control to select the DVD function mode. Insert a disc into the slot of DVD player and it will be read automatically. Press ”OPEN/CLOSE” button of remote control or the button on the unit ,the disc will be ejected automatically HOW TO SELECT THE TRACK... - Page 22 FAST FORWARD/ REWIND Press the button once, the disc will be played forward or backward. With each subsequent press, the disc will be played back at 2x, 4x, 8x, 16x or 32X speed. Press ENTER/PLAY button to return to normal play. SKIP NEXT/ PREVIOUS ...
- Page 23 play from A to B. if you want to cancel the repeat section, please press REPEAT A-B once again. Be aware that some discs will not respond to the A-B repeat function. e. STEP When the PAUSE/STEP button on the remote control is pressed 1st time, the picture will become still on the screen.
- Page 24 For different discs, DISPLAY button may be have different functions. j. PLAYING IN A FAVORITE ORDER Combine your favorite titles, chapters or tracks and play them in your favorite order. HOW TO SET TITLES, CHAPTERS, OR TRACKS IN A FAVORITE ORDER The program playback function will automatically playback titles, chapters or tracks in the order preprogrammed.
- Page 25 This DVD video player allows you to select from several different angles. Press the ANGLE button while playing back a scene recorded with multiple angles. You may only press the ANGLE button when the angle icon is flashing on the DVD display. Each time you press the ANGLE button, the angle will change.
- Page 26 Press the button twice to select and highlight the PLAY MODE. Then press the button each way to select play mode options (repeat, shuffle, etc.) Then press the button twice then the “down” key to select and highlight an MP3 file (song). Press the ENTER/PLAY button to highlight your list of songs.
- Page 27 displayed on the TV screen. Captions: you could choose ON or OFF Screen saver: if screen saver on, there will be saver display when there is no operation for several minutes. AUDIO SETUP You could choose AUDIO OUT mode as SPEAKER SETUP, AUDIO SETUP, could setup to get the best sound as followed: PASSWORD SETUP (INITIAL PASSWORD 1369)
-
Page 28: Other Operation
VII. Other Operation a.Earphone operation This unit possesses earphone jack. Connect the earphone with the socket and adjust the volume to what you want. Once plugged in, the speaker output will be cut off automatically. b. AUDIO effect Press the AUDIO/ST/D/I/II button on the remote control frequently to select Mono Left, Mono Right , Mix-Mono or Stereo effect. - Page 29 Too far away distance. Can‟t operate External interference with the Pull out the plug and insert system CPU. again. b. TV/Monitor Symptom Remedy 1. Check whether the power plug is connected to the power No power supply. 2. Pull out the plug and wait for 60 seconds, and then insert the power plug again and switch on the TV/monitor.
-
Page 30: Notes
Screen glittering Reset the computer and enter into the safety mode, then under PC mode select the appropriate screen type by consulting the operation manual. Screen traversed Maybe the phase is not appropriate. Enter into the PC under PC mode setting and change to correct level. -
Page 31: Maintenance
them in vertical position. Tilting or piling may lead to warping. Please keep the discs away from direct sunlight, high temperature and humidity. Do not stick labels onto discs. Do not scratch the surface of discs. X. Maintenance 1). Cleaning the cabinet Use a soft cloth slightly moistened with a mild detergent solution. -
Page 32: Specification
Specifications Screen size, visible 19 inch Screen format 16:9 Resolution 1440 * 900 Minimum contrast ratio 850:1 Minimum brightness 300 cd/m² Display colors 16.2M Minimum viewing angle 170° (horizontal) / 160° (vertical) Maximum response Time 5 ms Minimum lifetime background light 50,000 hours Video color systems PAL/NTSC3.58/NTSC4.43/SECAM... -
Page 33: Display Modes
Audio output 3W * 2 Gross weight 9 Kgs Power requirement DC 12V 5A, AC100~250V, 50Hz/60Hz Power Consumption Max 60W XII. Display modes Resolution Horizontal Freq. (KHz) Vertical Freq. (Hz) 720x400 31.5 640x400 31.5 640x480(VGA) 31.5 640x480(VGA) 37.9 640x480(VGA) 37.5 800x600(SVGA) 37.9 800x600(SVGA) - Page 34 screen. But it‟s not a problem, no need to concern about it. To extend the service life of the product, we recommend that you use your computer‟s power management function. Note: Design and specifications are subject to change without notice.
