Summary of Contents for Akura APL3221W-HDID
Page 1

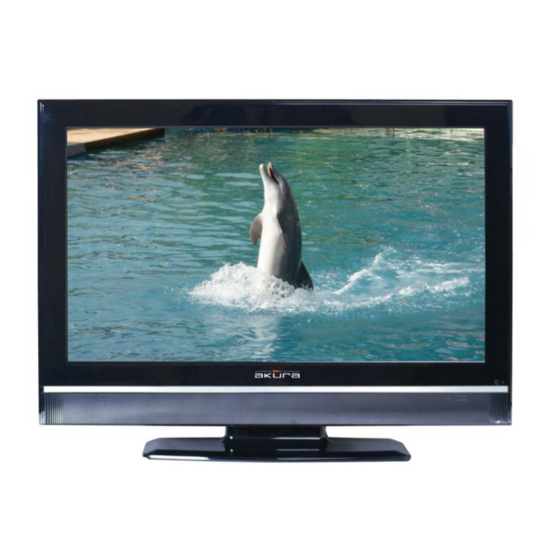

Model : APL3221W - HDID 32” Digital LCD TV with DVBt “Freeview” HDMI...
Page 2
LCD Screen Although the LCD screen is made with high precision technology and 99.9% or more of the pixels are effective, dots may appear. These can be black or bright dots (red, green or blue) and may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.
1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
2. Safety Instructions CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard.
Remote Control 3. Accessories Please check the contents of the TV before you continue. If any item is missing please contact your point of purchase. User Manual Mains lead 4. User Controls. 1. Vol – Reduces Volume level. In menu mode will shift the selection to the left, or decreases level being adjusted.
5. Remote Control. 2. INFO. Displays TV settings and 1. STANDBY. Switches TV to Standby channel being viewed. and Operation. 4. MUTE. Press to mute sound, press 3. P MODE. Selects picture modes. again to restore sound. 5. S MODE. Selects sound modes. 6.
Page 8
5. Remote Control. Open the battery cover Fit two “AAA” batteries (Not supplied). Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not place in the domestic waste, consult your local waste disposal company.
6. Connections. IMPORTANT. When making connections ensure the TV is disconnected from the DC supply input, and that the appliance being connected is also disconnected from the mains supply. Switch. Turn the Power On or Off AC Input. 110 – 240V AC 50/60 Hz. HDMI.
Page 10
6. Connections. PC connections. Antenna Disconnect TV from mains supply. or cable Connect VGA (15 pin) plug to TV and Connect stereo audio lead. Re connect mains supply to TV and Use SOURCE button to select VGA. SCART. S-VIDEO. Disconnect TV from mains Disconnect TV from supply.
Page 11
6. Connections. Y,Pb,Pr Disconnect TV from mains supply. Connect Y,Pb,Pr leads and audio leads to TV and appliance. It is wise to use dedicated Y,Pb,Pr leads from your retailer. Re connect mains supply to TV and power to appliance. Use SOURCE to select Y,Pb,Pr.
7. Menu Operation. Connect the TV to the Mains supply and suitable aerial. It is advisable not to connect other apparatus until you have established that the TV is working correctly. If using the TV for DVBt (Freeview) viewing, the existing aerial may not be suitable.
Page 13
7. Menu Operation. OSD Menu. Press the LCD MENU button to display the main menu, Fig 4 will be displayed. Fig 4 To select the other menu’s press the ► button and the menu’s will rotate in the sequence :- Picture, Sound, Time, Setup, Lock, TV Setting. To enter each menu press the ▼...
Page 14
7. Menu Operation. Sound. (Fig 7) Sound Mode. Select from :- Standard, Music, Movie, Sports and Personal. Standard. Used for general viewing. Fig 7 Music. Selected for enhanced music appreciation. Movie. A more dynamic setting suitable for movie viewing. Sports. Suitable for sports viewing. Personal.
Page 15
7. Menu Operation. Fig 11 TV Setting. (Fig 11). Auto Tuning. After initial installation it may be necessary to re install all the stations. Select Auto Tuning and press OK. The sub menu (Fig 12) will be shown. If using in the UK select Start with the ▼ button and press OK. If using in another country, select the country using the ►/◄...
Page 16
7. Menu Operation. Programme Edit. (Analog) (Fig 15). Delete “Red” Should it be necessary to Delete a station, use the cursors to select the station to be deleted. Press the RED button, this will put a RED marker next to the station to be deleted, press RED again and the station will be deleted, to exit delete press the Menu button.
Page 17
7. Menu Operation. Using a CAM (Conditional Access Module) (CI Slot). Fig 17 This feature allows the user to access digital terrestrial “pay per view” channels. To use this facility a conditional access module (CAM) and viewing card need to be obtained by subscribing to a pay channel company. To insert the module.
8. Teletext. (Analog) TV Teletext is an information system broadcast by certain programme providers. It can provide Subtitles for viewers hard of hearing. Weather, Travel information, games and many other services. Below is a description of the buttons associated with Teletext. TEXT.
Mount the TV to the wall bracket using 4 x 5 mm x 10 mm set screws. (Do NOT use longer screws as the internal parts of the TV may be damaged). Akura Ltd accepts no responsibility for any damage, caused to or by, incorrect mounting of the wall bracket.
11. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Dead. No led lit Power not connected to TV Check power lead and mains adaptor connections Press Power button on TV or Standby button on No Picture.
12. Specifications. ITEM DESCRIPTION Power Requirements TV 100-240V AC 50/60 Hz (160W) Standby Power Screen Size 31.5" (80cm) diagonal Case dimensions 800mm x 610mm x 220mm inc base Weight 15.7 Kg’s Screen resolution 1366x 768 pixels Viewing angle V 176º H 176º...
13. Mains Plug Wiring Diagram Fig 24 If it becomes necessary to replace the Mains Plug, it should be wired in accordance with the diagram as in Fig 24. The Brown wire (Live) should be connected to the terminal (L) The Blue wire (Neutral) should be connected to the terminal (N) The Green/Yellow wire (Earth) should be connected to the terminal (E).
