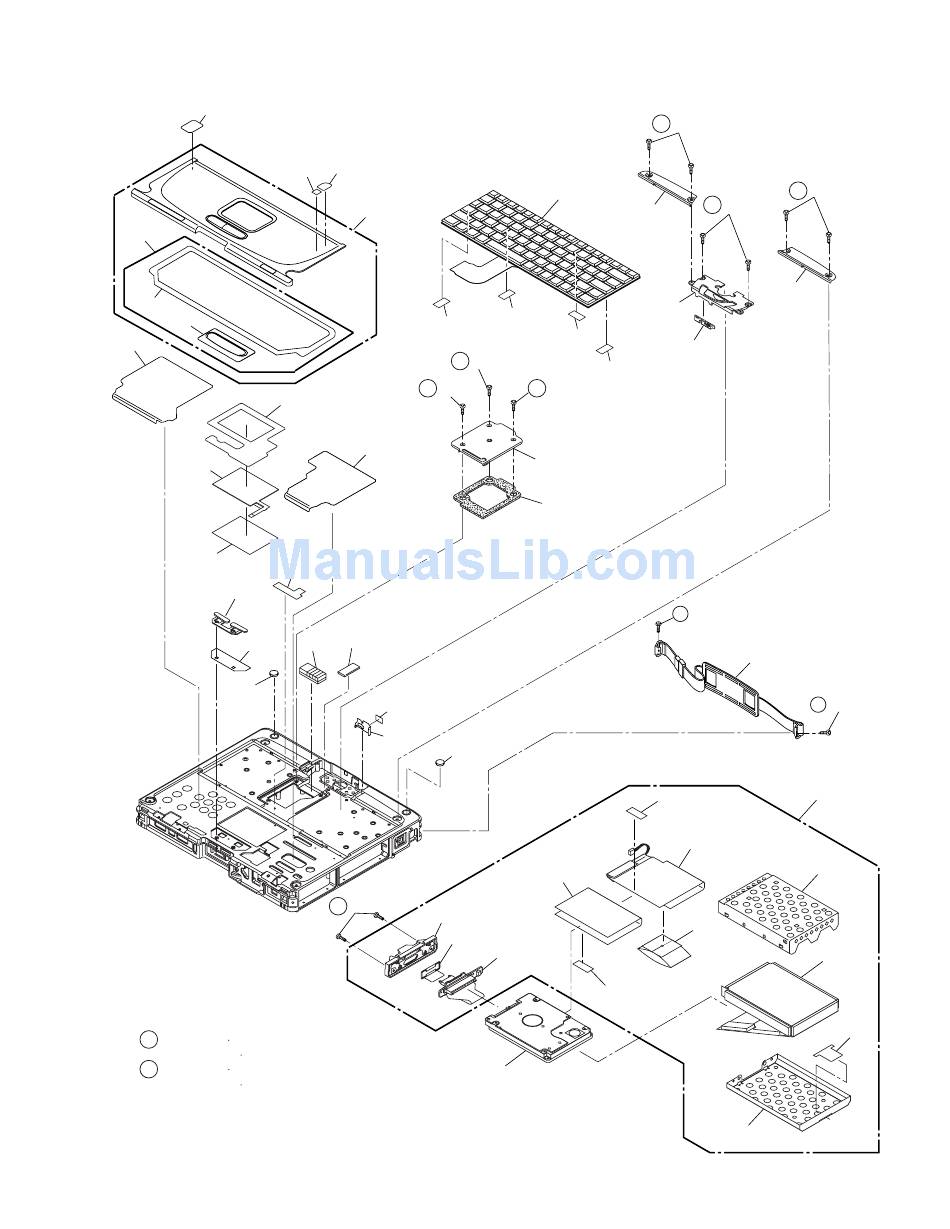

10 Exploded View
K82
K3-1
K3-1-1
K3-1-2
K115
E32
K111
K124
K107
K110
Screw tightening torque
A
0.2 _ 0.02N m
+
(2.0 _ 0.2kgf cm)
+
F
0.8 _ 0.02N m
+
(8.0 _ 0.2kgf cm)
+
K83
K81
K3
K144
A
N1
K114
K116
K109
K113 K100
K102
K127
A
N13
K80-6
K80-5
E24
K144
K144
A
N1
K144
A
N1
K34
K39
K110
K80-9
K80-7
K80-8
E23
10-1
A
N9
N9
A
A
N9
K30
K31
K9
K60
F
N11
K5
F
K80
K80-8
K80-11
K80-1
K80-10
K80-2
CF-19CDBAXVM
N11
K80-4
K80-3
