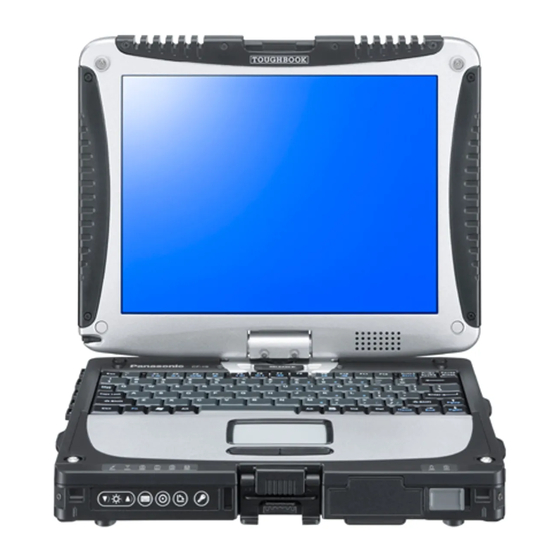

Panasonic Toughbook 19 Operating Instructions Manual
Cf-19 series
Hide thumbs
Also See for Toughbook 19:
- Using manual (13 pages) ,
- Using (4 pages) ,
- Specification (2 pages)
Table of Contents
Advertisement
Quick Links
For further information about the com-
puter, you can refer to the on-screen
manual.
To access the on-screen manual
page 18 "On-screen Manual"
Please read these instructions carefully before using this product and save this manual for future use.
OPERATING INSTRUCTIONS
Contents
Getting Started
Introduction .................................................................
Read Me First .............................................................
(Precautions)
Description of Parts ..................................................
First-time Operation ..................................................
Useful Information
On-screen Manual ....................................................
Handling and Maintenance .......................................
Reinstalling Software ................................................
Troubleshooting
Troubleshooting (Basic) ............................................
Appendix
LIMITED USE LICENSE AGREEMENT ...................
Contrat de licence d'usage limité..............................
Specifi cations ...........................................................
LIMITED WARRANTY ..............................................
Personal Computer
CF-19
series
2
3
11
14
18
19
21
23
27
28
29
32
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Panasonic Toughbook 19
Summary of Contents for Panasonic Toughbook 19
-
Page 1: Table Of Contents
OPERATING INSTRUCTIONS Personal Computer CF-19 series Model No. Contents Getting Started Introduction ..............Read Me First ............. (Precautions) Description of Parts ..........First-time Operation ..........Useful Information On-screen Manual ............ Handling and Maintenance ........Reinstalling Software ..........Troubleshooting Troubleshooting (Basic) ..........Appendix LIMITED USE LICENSE AGREEMENT .... -
Page 2: Introduction
Introduction Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions carefully. Terms and illustrations in these instructions Conditions that may result in minor or moderate injury. CAUTION Useful and helpful information. NOTE Enter : Press [Enter] key. -
Page 3: Read Me First
Read Me First Important Safety Instructions / Importantes Mesures De Sécurité When using your telephone equipment, basic safety Certaines mesures de sécurité doivent être prises pen- precautions should always be followed to reduce the risk dant l’utilisation de matérial téléphonique afi n de réduire of fi... - Page 4 Failure to comply with these precautions violates safety stan- dards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these precautions.
- Page 5 External antenna(s) must be profession- ferent from that to which the receiver is connected. ally installed and cannot exceed recommended maxi- Consult the Panasonic Service Center or an experi- mum antenna gain as described in individual provided enced radio/TV technician for help.
- Page 6 Fax soft- cluding interference that may cause undesired operation. ware being used. Responsible Party: Panasonic Corporation of North America 10. According to the FCC’s electrical safety advisory, we One Panasonic Way...
- Page 7 External Antenna The maximum allowable antenna gain for the external WWAN FCC RF Exposure Warning: base whip antenna is 7.5 dBi for the Cellular band, 3 dBi for This equipment is provided with external antenna connector(s) the PCS band, 5.5 dBi for LTE Band 4, 9 dBi for LTE Band for connection to optional Car Mounter or Port Replicator for 17, and 10.17 dBi for LTE Band 13.
- Page 8 Models for India For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when dis- posing of this product. Please see the Panasonic website for further information on collection centers, etc.
- Page 9 fi re. ensuring human life or safety. Panasonic cannot be held re- Keep SD Memory Cards Away from Infants and Small Children sponsible in any way for any damages or loss resulting from Accidental swallowing will result in bodily injury.
- Page 10 This computer is not intended for a use with connection of medical equipment for the purpose of medical diagnosis. Panasonic shall not be liable for loss of data or other incidental or consequential damages resulting from the use of this product.
-
Page 11: Description Of Parts
Description of Parts <Model without WWAN Antenna> <Model with WWAN Antenna for North America> A: Wireless LAN Antenna H: Display Release Latch <Only for model with wireless LAN> page 13 “Switching to the Tablet mode” Reference Manual “Wireless LAN” I: Speaker The wireless LAN switch may turn off depending on ... - Page 12 Description of Parts Left side Rear side Bottom <Only for model with Camera> <Only for model without Camera> A: DC-IN Jack L: SIM Card Slot B: USB Port (3.0) <Only for model with wireless WAN> Insert the SIM card into the SIM card slot with the Reference Manual “USB Devices”...
- Page 13 This computer contains a magnet and magnetic products at the locations circled in the illustration at right. Avoid leaving metallic object or magnetic me- dia in contact with these areas. Switching to the Tablet mode A Lift up the display so it stands perpendicular to the body. B Slide the display release latch (A), and rotate the display clockwise until it clicks.
-
Page 14: First-Time Operation
Preparation A Check and identify the supplied accessories. If you do not fi nd the described accessories, contact Panasonic Technical Support ( page 33). • AC Adaptor ..1 • AC Cord ..1 •... -
Page 15: Opening The Display
CPU. Wait until the computer cools down, and then turn the power on again. If the computer does not power on even after cooling down, contact Panasonic Technical Support ( page 33). Any changes from the default setting of the Setup Utility must not be made until the First-time Operation is completed. - Page 16 A Run [Calibration Utility]. Click (Start) - [All Programs] - [Panasonic] - [Calibration Utility]. B Select [Touch input]. To calibrate more accurate, add a check mark for [Advanced calibration]. C Using the digitizer pen, touch each of the “+” target marks one by one.
- Page 17 Precaution against Starting Up/Shutting Down Do not do the following Connecting or disconnecting the AC adaptor Sliding the power switch Touching the keyboard, touch pad, touchscreen, dual touch or external mouse Closing the display ...
-
Page 18: On-Screen Manual
Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual]. Important Tips The Important Tips will provide you with the battery information so that you can use the battery pack in the optimum condition to obtain longer operation time. -
Page 19: Handling And Maintenance
Handling and Maintenance Operation environment Place the computer on a fl at stable surface not subject to shock, vibration, and danger of dropping. Do not place the computer upright or turn it over. If the computer is exposed to an extremely strong impact, it may become damaged. ... - Page 20 Handling and Maintenance When using peripheral devices Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction manuals of the peripheral devices. Use the peripheral devices conforming to the computer’s specifi cations. ...
-
Page 21: Reinstalling Software
Connect the AC adaptor and do not remove it until reinstallation is complete. Turn on the computer, and press while [Panasonic] boot screen is displayed. The Setup Utility starts up. If the password is requested, enter the Supervisor Password. - Page 22 Turn off the computer and connect the CD/DVD drive to the USB port ( page 12). Turn on the computer, and press while [Panasonic] boot screen is displayed. The Setup Utility starts up. If the password is requested, enter the Supervisor Password.
-
Page 23: Troubleshooting (Basic)
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the “Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact Panasonic Technical Support ( page 33). You can also check the computer’s status in the PC Information Viewer (... - Page 24 D Select the option in [Check disk options] and click [Start]. E Click [Schedule disk check] and restart the computer. Start the computer in Safe Mode and check the error details. When the [Panasonic] boot screen disappears at startup, press and hold...
- Page 25 E Click [Yes], click [Yes] and click [OK]. Then restart the computer. F Press while [Panasonic] boot screen is displayed. G Set [GPS] to [Enabled] in the [Advanced] - [Serial Port Settings]. Enter H Press and select [Yes] at the confi rmation message, and press ...
- Page 26 Troubleshooting (Basic) Touch Pad / Touchscreen (only for model with touchscreen)/Dual Touch (only for model with dual touch) Cannot point the correct <Only for model with touchscreen> Perform the touchscreen calibration ( page 16). position using the included <Only for model with dual touch>...
-
Page 27: Limited Use License Agreement
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE. Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intend- ed results, and for the installation, use and results obtained therefrom. -
Page 28: Contrat De Licence D'usage Limité
En utilisant les logiciels, vous vous engagez de manière défi nitive à respecter les termes, clauses et conditions des présentes. Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus. -
Page 29: Specifi Cations
Specifi cations This page provides the specifi cations for the basic model. The model number is different according to the unit confi guration. To check the model number: Check the bottom of the computer or the box the computer came in at the time of purchase. ... - Page 30 Recalibration Utility, Hand Writing Utility, Display Rotation Tool, Infi neon TPM Professional Package , Wireless Connection Disable Utility , Wireless Manager Mobile Edition 5.5f Dashboard for Panasonic PC, Aptio Setup Utility, PC-Diagnostic Utility, Recovery Disc Creation Utility, Power Plan Extension Utility, Quick Boot Manager,Hard Disk Data Erase Utility , GPS Viewer...
- Page 31 SD Memory Cards that support high-speed transfer rates can be used. Windows ReadyBoost function is also supported. Operation has been tested and confi rmed using Panasonic SD Memory Cards and SDHC Memory Cards with a capacity of up to 32 , and Panasonic SDXC Memory Card with a capacity of up to 64 Operation on other SD equipment is not guaranteed.
-
Page 32: Limited Warranty
All modems must be approved by the wireless carrier prior to use. Any use or attempted use of a wireless modem not approved and activated by the carrier for use on their network is strictly prohibited and is not sanctioned or warranted by Panasonic and may result in legal action. - Page 33 Section 2 - Limited Warranty - Software Panasonic warrants to you only that the disk(s) or other media on which the Programs are furnished will be free from defects in material and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to you, as evidenced by your purchase receipt..
- Page 34 No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmental conditions other than those specifi ed by PCI or the manufacturer, or if subjected to misuse, neglect, mishan- dling, modifi...
- Page 35 GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur lequel le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales d’utilisation au Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.
- Page 36 Subject to the conditions of this warranty Panasonic or it’s Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
- Page 37 MEMO...
- Page 38 MEMO...
- Page 40 NERGY guidelines for energy effi ciency. By enabling available power management settings, Panasonic computers enter a low-power sleep mode after a period of inactivity, saving the user energy. <Only for U.S.A.> To learn more about power management, please visit the web site: www.energystar.gov/index.cfm?c=power_mgt.pr_power_management...
