HP 6400/8400 Replacement Instructions

Hp storageworks disk enclosure i/o module replacement instructions (621756-001, june 2010).
Hide thumbs

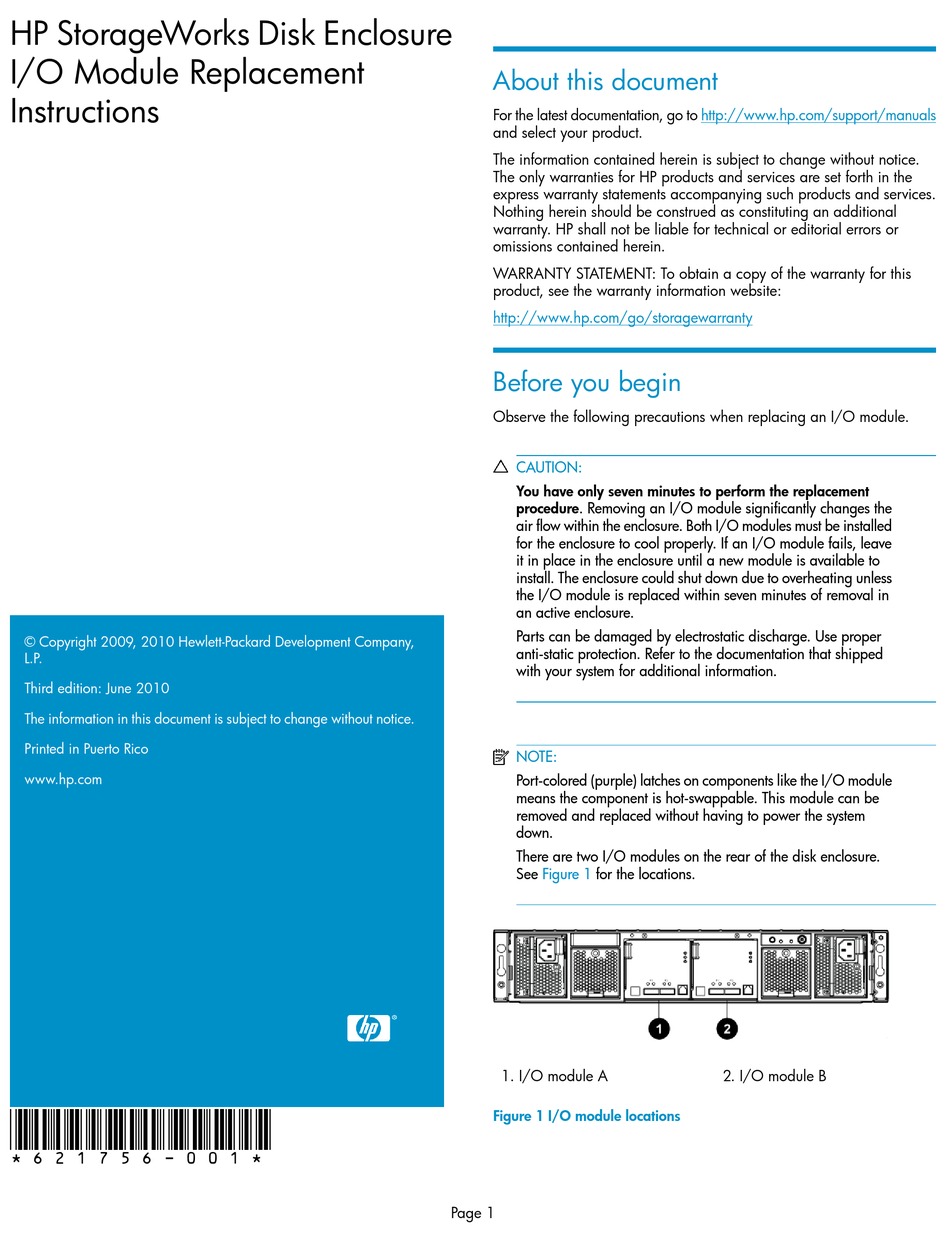

HP StorageWorks Disk Enclosure
I/O Module Replacement
Instructions
© Copyright 2009, 2010 Hewlett-Packard Development Company,
L.P.
Third edition: June 2010
The information in this document is subject to change without notice.
Printed in Puerto Rico
www.hp.com
*621756-001*
For the latest documentation, go to
and select your product.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
WARRANTY STATEMENT: To obtain a copy of the warranty for this
product, see the warranty information website:
http://www.hp.com/go/storagewarranty
Observe the following precautions when replacing an I/O module.
CAUTION:
You have only seven minutes to perform the replacement
procedure. Removing an I/O module significantly changes the
air flow within the enclosure. Both I/O modules must be installed
for the enclosure to cool properly. If an I/O module fails, leave
it in place in the enclosure until a new module is available to
install. The enclosure could shut down due to overheating unless
the I/O module is replaced within seven minutes of removal in
an active enclosure.
Parts can be damaged by electrostatic discharge. Use proper
anti-static protection. Refer to the documentation that shipped
with your system for additional information.
NOTE:
Port-colored (purple) latches on components like the I/O module
means the component is hot-swappable. This module can be
removed and replaced without having to power the system
down.
There are two I/O modules on the rear of the disk enclosure.
See
Figure 1
for the locations.
1. I/O module A
Figure 1 I/O module locations
.
Page 1
http://www.hp.com/support/manuals
2. I/O module B
