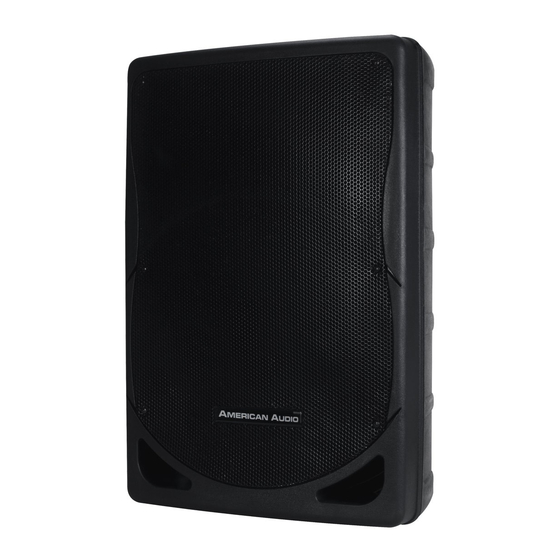

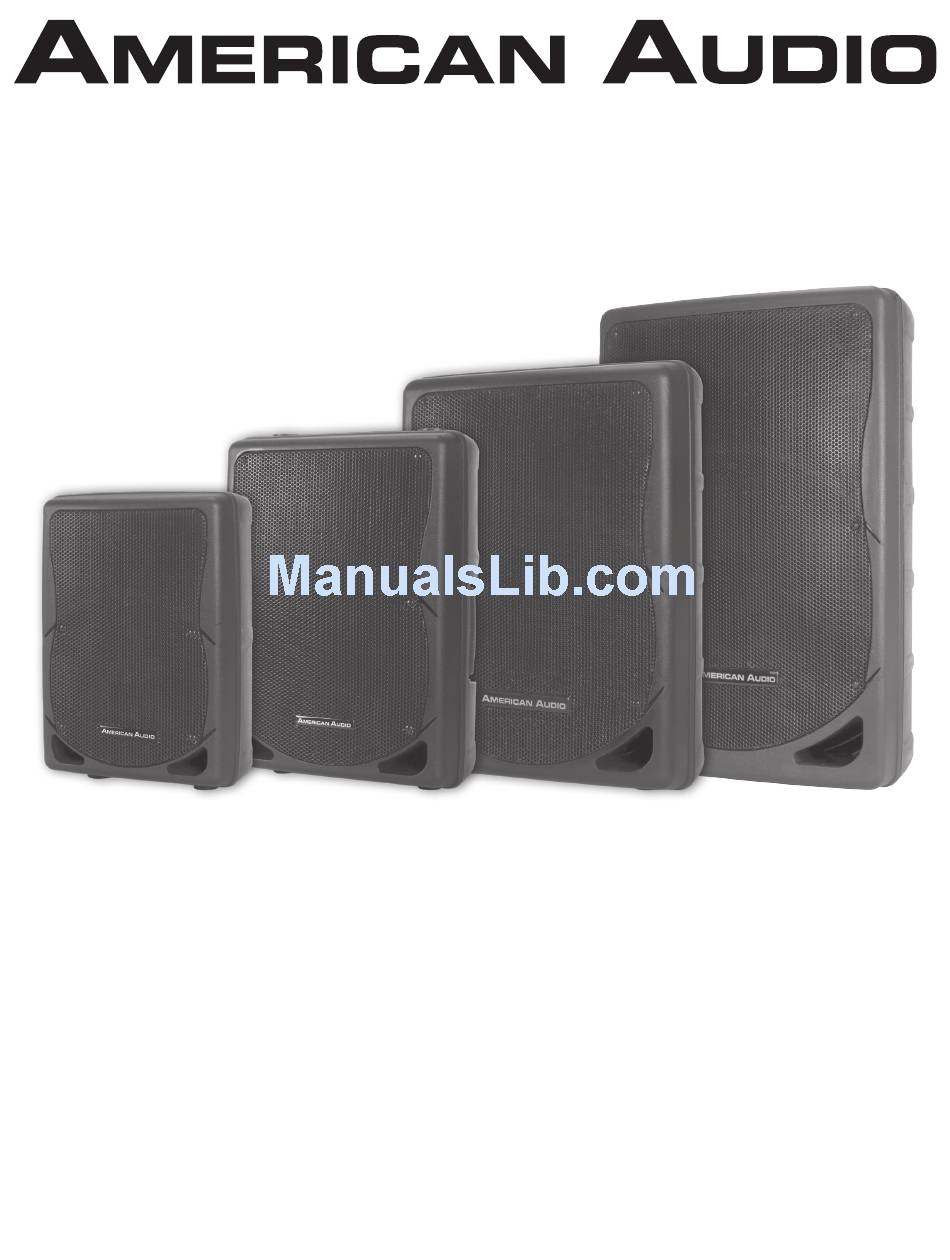

- Page 1 XSP Series Powered Professional Two-Way Sound reinforcement Loudspeaker mericAn udio 6122 S. Eastern Ave. Los Angeles, Ca. 90040 www.AmericanAudio.us 5/09...
-
Page 2: Table Of Contents
There are no user serviceable parts inside this speaker. Do not attempt any repairs, without being instructed to do so by an authorized American Audio technician. Doing so will void your manufac- tures warranty. In the unlikely event your speaker may require service, please contact American Audio ®. -
Page 3: Important Safety Instructions
INSIDE REFER SERVICE TO YOUR AUTHORIZED the literature accompanying the appliance. to constitute a risk of electric shock to persons. AMERICAN AUDIO SERVICE TECHNICIAN. ® IMPORTANT SAFETY INSTRUCTIONS reAd inSTrucTionS — All the safety and operating... - Page 4 The speaker has been exposed to rain or water C. The speaker does not appear to operate normally or exhibits a change in performance D. The terminal/cross-over plate has been damaged American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 4 ©...
-
Page 5: Customer Support
The serial and model number for this unit is located on the rear panel Please write down the num- bers here and retain them for future reference. Model No.________________________________ Date Purchased___________________________ Serial No.________________________________ Dealer Name______________________________ American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 5 © ®... - Page 6 4. Pole MoUnt SoCket – This socket is designed to fit a standard speaker pole mount or tri- pod such as the American Audio SPS-1b speaker stand.
- Page 7 Always turn down the INPUT VOLUME (3) before switching off the speaker. never turn off the speaker when there is a running sig- nal! American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 7 ©...
- Page 8 9. FUSe HoldeR – This housing stores the 2 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty.
- Page 9 -12db. Turning the knob in a counter-clockwise direction will decrease the amount of treble applied to a channel signal, turning the knob in a clockwise direction will increase the amount of treble applied to a channel signal. American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 9 ©...
- Page 10 Always turn down the INPUT VOLUME (3) before switching off the speaker. never turn off the speaker when there is a running sig- nal! American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 10 ©...
- Page 11 -12db. Turning the knob in a counter-clockwise direction will decrease the amount of treble applied to a channel signal, turning the knob in a clockwise direction will American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 11 ©...
- Page 12 16. FUSe HoldeR – This housing stores the 5 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty.
- Page 13 11. tReble ContRol – This knob is used to regulate the amount treble applied to the output signal. The maximum amount of treble gain is +12db and the maximum amount of treble American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 13 ©...
-
Page 14: Features
20. FUSe HoldeR – This housing stores the 5 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty. - Page 15 POWER SOURCE: 115/230V~ 50/60Hz 20W MADE IN CHINA TRIM OUTPUT XLR-XLR balanced Cables Connections are the same for 12P & 15P XSP 10P XSP 10P Speakers American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 15 © ®...
-
Page 16: Looping Speakers
X SP Series looping Speakers XSP Speaker looping From Mixer MASTER MASTER THROUGH THROUGH To Next XSP Speaker (If Applicable) American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 16 © ®... -
Page 17: Rigging And Mounting
Always be sure to follow all safety instructions and guidelines included with the mounting hardware for safe and proper installation. American Audio carries an assortment of rigging hardware specially designed to ®... - Page 18 These brackets slide into each end of the speaker. Each speaker has its own special sized floor bracket. American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 18 © ®...
-
Page 19: Available Accessories
The Z- APX/H is a heavy-duty eyebolt and is used to suspend or secure the speaker using safety cables. SPS-1b - Speaker Stands - American Audio carries the SPS-1b speak- ®... -
Page 20: Warranty
American Audio concludes, after inspection, affects the reliability of the ® product; if the product has been repaired or serviced by anyone other than the American Audio ® factory unless prior written authorization was issued to purchaser by American Audio ;... -
Page 21: Specifications
X SP Series technical Specifications American Audio® XSP-8P - Professional Model: Powered Sound reinforcement Loud Speaker Speaker Section: dimensions: 11.5” (L) x 9” (W) x 16.5” (H) / 290mm x 230mm x 420mm Weight: 18 Lbs. / 9 kgs environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F) -
Page 22: Technical Specifications
X SP Series technical Specifications bass: +/-12db treble: +/-12db American Audio® XSP-12P - Professional Model: Powered Sound reinforcement Loud Speaker Speaker Section: dimensions: 16” (L) x 12” (W) x 23” (H) / 405mm x 305mm x 585mm Weight: 44 Lbs. / 20 kgs environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F) - Page 23 The specifications are subject to change to any improvement by negotiations in advance. The parts are subject to change to any improvement within the range of the specifications. American Audio - www.AmericanAudio.us - XSP Series - Instruction Manual Page 23 ©...
- Page 24 ©American Audio A Division of the American DJ Group of Companies American Audio World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.AmericanAudio.us E-mail: info@AmericanAudio.us...
