Summary of Contents for AMD LE-363 User’s

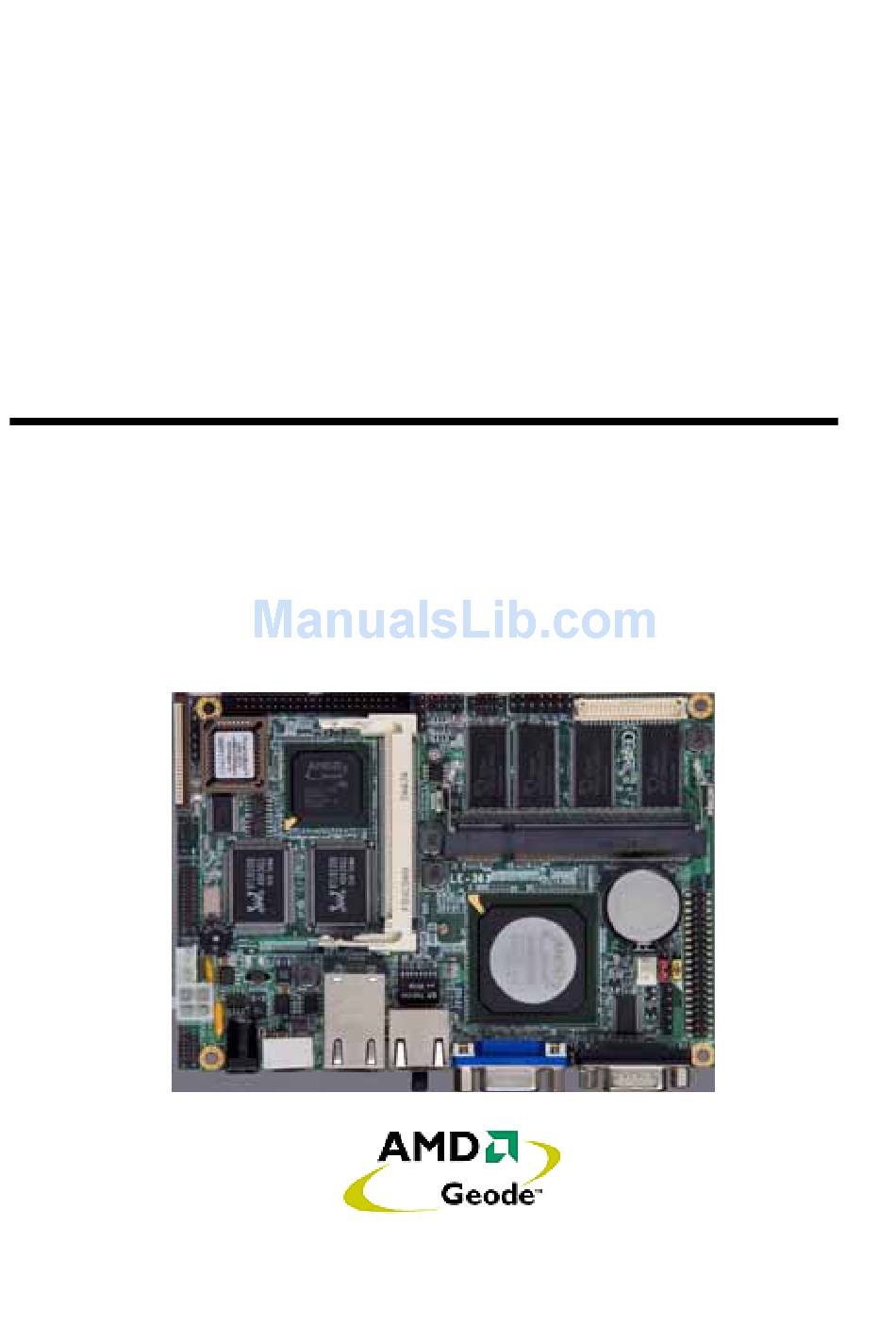

- Page 1 LE-363 3.5 inch Embedded Motherboard User’s Manual Edition 1.0 2005/9/16...
- Page 2 LE-363 User’s Manual Copyright Copyright 2004 - 2005. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LE-363 User’s Manual Packing List Please check the package before you starting setup the system Hardware: LE-363 little board x 1 Cable Kit: 44-pin 40-pin 44-pin 44-pin ATA33 IDE Cable x 1 USB Cable x 1 COM port & Printer Port Cable x 1 PS/2 keyboard &... - Page 4 LE-363 User’s Manual Index Chapter 1 <Introduction>...............6 1.1 <Product Overview> ..............6 1.2 <Product Specification> ..............7 1.3 <Mechanical Drawing>..............9 1.4 <Block Diagram> .................10 Chapter 2 <Hardware Setup> ............11 2.1 <Connector Location>..............11 2.2 <Jumper Location & Reference> ..........12 2.3 <Connector Reference>..............13 2.3.1 <Internal Connector>...
- Page 5 LE-363 User’s Manual A.2 <Floppy Port>................34 A.3 <IrDA Port>.................34 A.4 < VGA Port >................34 A.5 <Serial Port>................35 A.6 <LAN Port>.................35 A.7 <PS/2 Keyboard & Mouse Port>..........35 A.8 < USB Interface >................35 A.9 < LPT Prot >……………………………………………..36 Appendix B <Flash BIOS> ............37 BIOS Auto Flash Tool ............37 Flash Method ................37 Appendix C <System Resources>...
-
Page 6: Chapter 1
LE-363 is the 3.5 inches embedded motherboard with AMD Geode GX533 platform, with onboard VGA, AC97 audio, dual LAN and DC 12V input interface. Based on the AMD Geode GX533 processor, the board provides many advanced features for reduced power consumption, fanless design and high cost/price rate of production. -
Page 7: Product Specification
Fan speed, CPU temperature and voltage monitoring Monitor VGA Display Interface Chipset AMD Geode GX533 built-in VGA controller with 2D engine Memory BIOS selectable up to 4/8/12/16 MB shard with system memory Display Type CRT, LCD monitor with analog display... - Page 8 Linux Kernel version 2.4 or later Ordering Code LE-363P 3.5 inches embedded motherboard with onboard AMD GX533 400MHz processor, VGA, audio, dual LAN, USB, CF, TTL/LVDS PCMAIC ,Mini PCI , GPIO LE-363-128 Same as LE-363P and with onboard DDR 128M...
-
Page 9: Mechanical Drawing
LE-363 User’s Manual Introduction 1.3 <Mechanical Drawing> Mechanical Drawing... -
Page 10: Block Diagram
LE-363 User’s Manual Introduction 1.4 <Block Diagram> AMD Geode GX533 Processor VGA monitor TTL/LVDS LCD DDR SO-DIMM up to 512MB PCI/33Mhz Ultra DMA33 IDE USB1.1 X 2 Arbitor IT8209 8100B AC97 Audio CS5535 Floppy 8100B Serial Port GPIO PCMCIA Parallel Port... -
Page 11: Chapter 2
LE-363 User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_IR Mini PCI CD IN CN_USB JFRNT CN_LVDS CN_AUDIO CN_COM2 CN_LPT CN_LCD JRTC CN_SPWR CN_JVLCD CN_12V CN_INV CN_DIO DC_IN JCRT/TFTSEL SYSFAN PCMCIA Connector Location... -
Page 12: Jumper Location & Reference
LE-363 User’s Manual Hardware Setup 2.2 <Jumper Location & Reference> Jumper Function JRTC RTC/CMOS Setting JVLCD LCD Driving Voltage Setting JCRT/TFTSEL Select CRT/TFT Setting JRTC JVLCD JCRT/TFTSEL Jumper Location & Reference... -
Page 13: Connector Reference
LE-363 User’s Manual Hardware Setup 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark DIMM Onboard 200-pin DDR SO-DIMM socket Standard 44-pin primary IDE connector Slim 26-pin slim type floppy connector Slim CN_12V 4-pin power supply connector Standard CN_AUDIO 5 x 2-pin audio connector Standard CDIN 4-pin CD-ROM audio input connector... -
Page 14: Cpu & Memory Setup
Hardware Setup 2.4 <CPU & Memory Setup> 2.4.1 <CPU> The board integrates AMD Geode GX533 400MHz processor with special design for power appliance. It requires only 8.4W power consumption at most, and is totally designed for fanless system. 2.4.2 <Memory>... -
Page 15: Cmos Setup
LE-363 User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 16: Enhanced Ide & Cf Interface
LE-363 User’s Manual Hardware Setup 2.6 <Enhanced IDE & CF Interface> The board supports one Ultra DMA33 IDE interface, dual channel for 2 ATAPI devices. The board also provides a Compact Flash Type I socket on secondary IDE channel and one onboard type I/II PCMICA Card Bus on the solder side. -
Page 17: Floppy Port
LE-363 User’s Manual Hardware Setup 2.7 <Floppy Port> The board provides a slim type floppy port; please use the 26-pin ribbon cable in the package to connect the floppy device. Floppy rear side Lift up this plastic bar Slot the cable in (Blue paste for outside) Press back the plastic bar Lift up the brown plastic bar Slot the cable in (Blue paste for... -
Page 18: Ethernet Interface
LE-363 User’s Manual Hardware Setup 2.8 <Ethernet Interface> The board integrates two PCI based Ethernet controller with REALTEK 8100B, full compliance with IEEE 802.3u 100Base-T specifications and IEEE 802.3x Full Duplex Flow Control. RJ45_2 RJ45_1 Ethernet Interface... -
Page 19: Onboard Display Interface
LE-363 User’s Manual Hardware Setup 2.9 <Onboard Display Interface> The board integrates AMD Geode GX533 processor with built-in 2D video engine, to provide onboard DB15 VGA connector, 24-bit TTL and 18-bit/24-bit LVDS interface. The built-in 2D video engine supports following specified functions:... - Page 20 LE-363 User’s Manual Hardware Setup In order to setup the LCD display well, please check the jumper setting before you use. Jumper: JVLCD Type: onboard 3-pin header JVOLT Mode +3.3V Default setting Connector: CN_INV Type: onboard 5-pin header Description +12V Ground Ground Ground...
- Page 21 LE-363 User’s Manual Hardware Setup Connector: CN_LVDS ( for 24bit Signal channel LVDS panel ) Type: 40-pin header (40 x 2 pitch 2.0 mm) Connector model: Hirose DF13- 40DP-1.25V Signal (18-bit) Signal (24-bit) LCDVCC LCDVCC BTX0- BTX0+ BTX1- BTX1+ BTX2- BTX2+ BTX3- BTX3+...
- Page 22 LE-363 User’s Manual Hardware Setup Connector: CN_LVDS ( for 18bit Signal channel LVDS panel ) Type: 40-pin header (40 x 2 pitch 2.0 mm) Connector model: Hirose DF13-40DP-1.25V Signal (18-bit) Signal (24-bit) LCDVCC LCDVCC ATX0- ATX0+ ATX1- ATX1+ ATX2- ATX2+ ATXCK0- ATXCK1+ 18-bit Signal...
- Page 23 LE-363 User’s Manual Hardware Setup Connector: CN_LCD Type: onboard 2 x 20-pin header with housing, pitch=2.0mm Signal Signal ENAVDD ENBKL LCDVCC LCDVCC FPD0 FPD1 FPD2 FPD3 FPD4 FPD5 FPD6 FPD7 FPD8 FPD9 FPD10 FPD11 FPD12 FPD13 FPD14 FPD15 FPD16 FPD17 FPD18 FPD19 FPD20...
- Page 24 LE-363 User’s Manual Hardware Setup LCD Installation Guide: Preparing the LE-363, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V. If your panel is for TTL interface, you would need a TTL type cable.
- Page 25 LE-363 User’s Manual Hardware Setup After hardware setup well, you need to select the panel type in the BIOS. Panel Type Support List: Panel Number Resolution 640 x 480 800 x 600 1024x 768 Onboard Display Interface...
-
Page 26: Onboard Audio Interface
LE-363 User’s Manual Hardware Setup 2.10 <Onboard Audio Interface> The board provides onboard AC97 audio interface with REALTEK ALC201A codec. Please use attached audio cable in the package to have Line-out, Line-in and MIC-in interfaces. Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description Line –... -
Page 27: Serial Port
LE-363 User’s Manual Hardware Setup 2.11 <Serial Port> The board provides one RS232 COM port on real I/O panel with DB9 as COM1, onboard CN_COM2 RS232 serial port and one onboard parallel connector. CN_COM2 COM1 CN_LPT Serial Port... -
Page 28: Gpio Interface
LE-363 User’s Manual Hardware Setup 2.12 <GPIO Interface> The board offers 8-bit digital I/O to customize its configuration to your control needs. For example, you may configure the digital I/O to control the opening and closing of the cash drawer or to sense the warning signal from a tripped UPS. The following is a detailed description of how the digital I/O is controlled via software programming. -
Page 29: Power Supply
LE-363 User’s Manual Hardware Setup 2.13 <Power Supply> 2.13.1 <Power Input> The board requires DC 12V input with onboard DC jack or 4-pin 12V DC connector. Connector: CN_12V Type: 4-pin standard ATX2.0 +12V power connector Description Description Ground Ground +12V +12V 2.13.2 <Power Output>... -
Page 30: Switch And Indicator
LE-363 User’s Manual Hardware Setup 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header Function Signal Signal... -
Page 31: Chapter 3
LE-363 User’s Manual BIOS Setup Chapter 3 <BIOS Setup> The single board computer uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 32 LE-363 User’s Manual (This Page is Left For Blank)
-
Page 33: Appendix A
LE-363 User’s Manual I/O Pin Assignment Appendix A <I/O Pin Assignment> A.1 <IDE Port> Connector: IDE Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground IOW-/STOP Ground IOR-/HDMARDY Ground IORDY/DDMARDY Ground DACK- Ground LED2 Ground Ground Ground IDE Port... -
Page 34: A.2
LE-363 User’s Manual A.2 <Floppy Port> Connector: FDD Type: 26-pin connector Description Description INDEX DSKCHG MTR0 STEP Ground WRITE DATA Ground WRITE GATE Ground TRACK 0 Ground RDATA- Ground A.3 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground... -
Page 35: A.5
LE-363 User’s Manual I/O Pin Assignment A.5 <Serial Port> Connector: COM1 Type: 9-pin D-sub male connector on bracket Description Description Ground A.6 <LAN Port> Connector: RJ45_1/2 Type: RJ45 connector with LED on bracket Description A.7 <PS/2 Keyboard & Mouse Port> Connector: PS2 Type: 6-pin Mini-DIN connector on bracket Description... - Page 36 LE-363 User’s Manual A.9 < LPT Port > Connector: CN_LPT Type: 26-pin (13 x 2) header for LPT Ports Description Description PSTB- PRO0 PRO1 PRO2 PRO3 PRO4 PRO5 PRO6 PRO7 ACK- BUSY SLCT AFD- ERR- INT- SLIN- Ground Ground I/O Ground Ground Ground Ground...
-
Page 37: Appendix B
LE-363 User’s Manual Flash BIOS Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.award.com File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS. - Page 38 LE-363 User’s Manual (This Page is Left For Blank)
-
Page 39: Appendix C
LE-363 User’s Manual System Resources Appendix C <System Resources> C.1 <I/O Port Address Map> I/O Port Address Map... - Page 40 LE-363 User’s Manual...
-
Page 41: C.2
LE-363 User’s Manual System Resources C.2 <Memory Address Map> I/O Port Address Map... -
Page 42: C.3
LE-363 User’s Manual Contact Information C.3 <System IRQ & DMA Resources> C.3.1 <IRQ> C.3.2 <DMA> Contact Information... -
Page 43: Appendix D
LE-363 User’s Manual System Resources Appendix D <Programming GPIO’s> The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0...GPIO7 bit0……bit7 -o 4E 87 ;enter configuration -o 4E 87 -o 4E 2A -o 4F FD... -
Page 44: Appendix E
LE-363 User’s Manual Contact Information Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255 - Second or Minute Program Sample...
