EPSON ActionNote 800 Series
Serial
RS-232C, programmable, asynchronous,
9-pin, D-sub male connector
External
Auto-sensing, 6-pin mini-DIN connector
keyboard/
for a PSI 2-type external keyboard,
mouse
keypad, or pointing device
Phone jack
Standard RJ-11 connector with optional
internal fax/ modem installed
Speaker
Internal; automatically disabled when
optional audio card is installed and
Line-out is used
Audio input
Connectors for microphone, Line-in, and
and output
Line-out when optional audio card is
installed
Port replicator
Connector for ActionPort™ replicator
Keyboard
85 keys; 101-key keyboard compatible;
embedded numeric keypad;
key commands
Trackpad
Built-in pointing device with two buttons
Fax/Modem
Optional internal 14.4 baud send/ receive
fax/ modem
Volume
Knob adjusts sound of internal speaker or
audio card (if installed)
Control
Mass Storage
Hard disk drive
One removable internal IDE hard disk
drive, 2.5-inch form factor; maximum
height 19 mm; Setup automatically
recognizes and configures drives that
support the IDE interface; parameters for
the Toshiba MK1824FCV are as follows:
Capacity
335MB
Heads
16
Cylinders
682
Diskette drive
Internal 3.5-inch diskette drive; 720KB or
1.44MB format; supports lower power
consumption

LCD Screen

Screen type
(all backlit)
Monochrome
Resolutions
640 x 480,64
and colors
gray shades
Diagonal
9.4 inches
measurement
Setup Program
Stored in ROM; accessible by pressing F8
at system startup; includes power
management utilities
AN800-2
Fn
key for hot
Sectors
63
WP Com
0
Landing Zone
682
Passive color
Active color
640 x 480
640 x 480
256 colors
256 colors
10.3 inches
10.4 inches
Software
Latest versions of MS-DOS® and Microsoft
Windows™Borland® SideKick® for
Windows; ClarisWorks® for Windows;
trial versions of CompuServe® WinCIM,®
America Online,® and OAG FlightDisk;®
drivers and utilities for PCMCIA card
slots, video system, and trackpad; on-line
version of User's Guide, Windows manual,
and other manuals; power management
utilities; all installed on the hard disk
drive; refer to Software Support Card for
details on EPSON's support policy

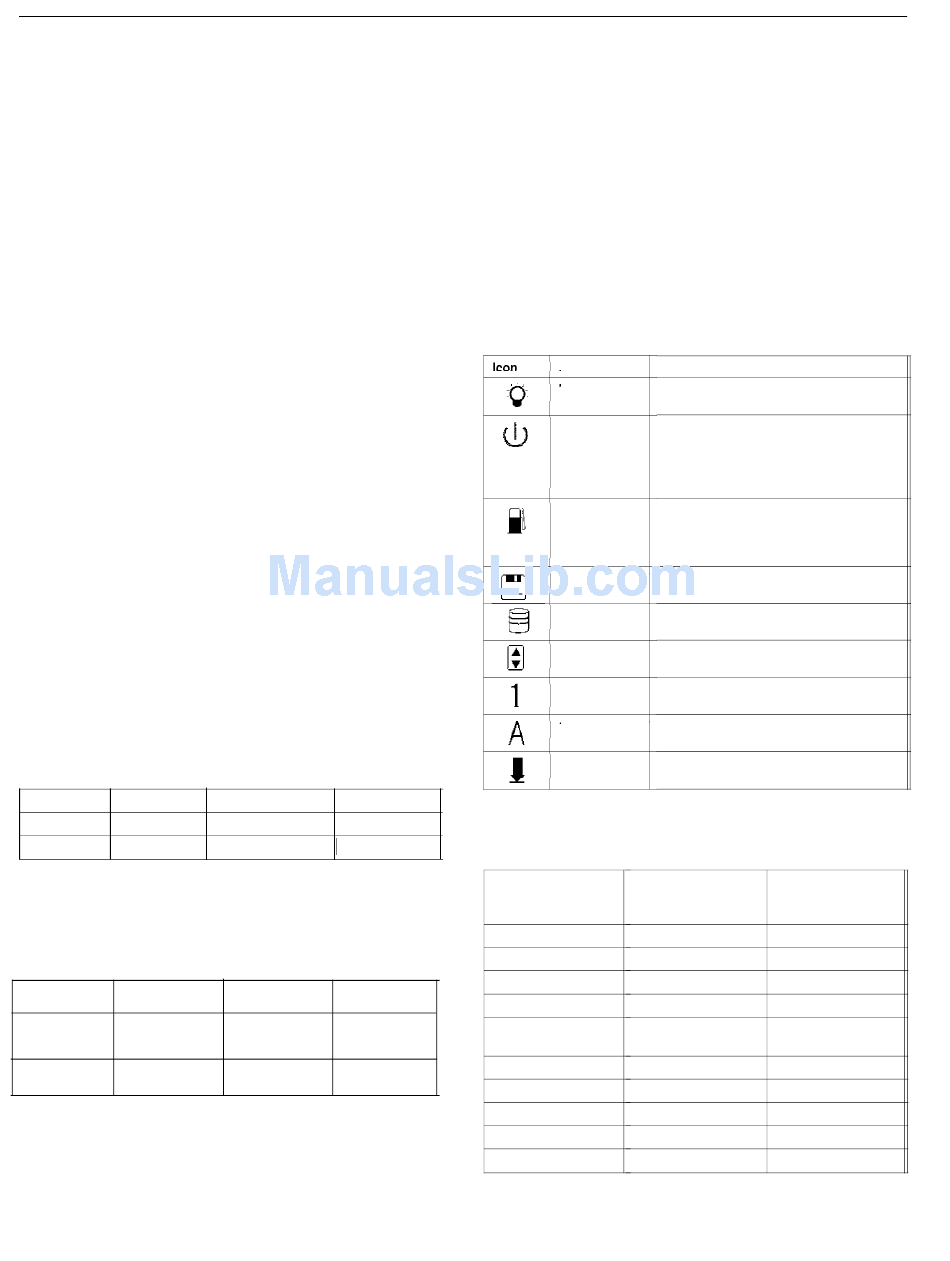

LED Panel

Name
Power
Suspend
Charge
Diskette drive
Hard disk drive
PCMCIA
Num Lock
Caps Lock
Scroll Lock

Power Sources

AC adapters
Specification
AC connection
DC cable
Input voltage
Input frequency
Output voltage
Length
Width
Height
Weight
12/9/94
Meaning
Computer is on
Green -Standby mode; press any key to
return to full power
Flashing green -Suspend mode; press
Suspend/Resume button to return to full
power
Orange -battery is charging normally
Green -battery is fully charged
Flashing orange -battery is not installed
correctly or is damaged
Computer is accessing the diskette drive
Computer is accessing the hard disk drive
Computer is accessing a PC card
Num Lock is on, which activates the
embedded numeric keypad
Caps Lock is on
Scroll Lock is on
Lightweight
International
AC adapter
AC adapter
(A882051)
(A882101)
2 folding connectors
6 ft (2 meter) cable
6 ft (2 meters)
6 ft (2 meters)
100 VAC to 240 VAC
100 VAC to 240 VAC
50/60 Hz
50/60 Hz
19 VDC, 1.23 Amp
19 VDC, 1.5 Amp
maximum
maximum
3.4" (86 mm)
3.4" (86 mm)
2.2" (56 mm)
2.2" (56 mm)
1.1" (28 mm)
1.1" (28 mm)
7.8 oz (220 g)
9 oz (255 g)
