Summary of Contents for Electrolux U30205
-

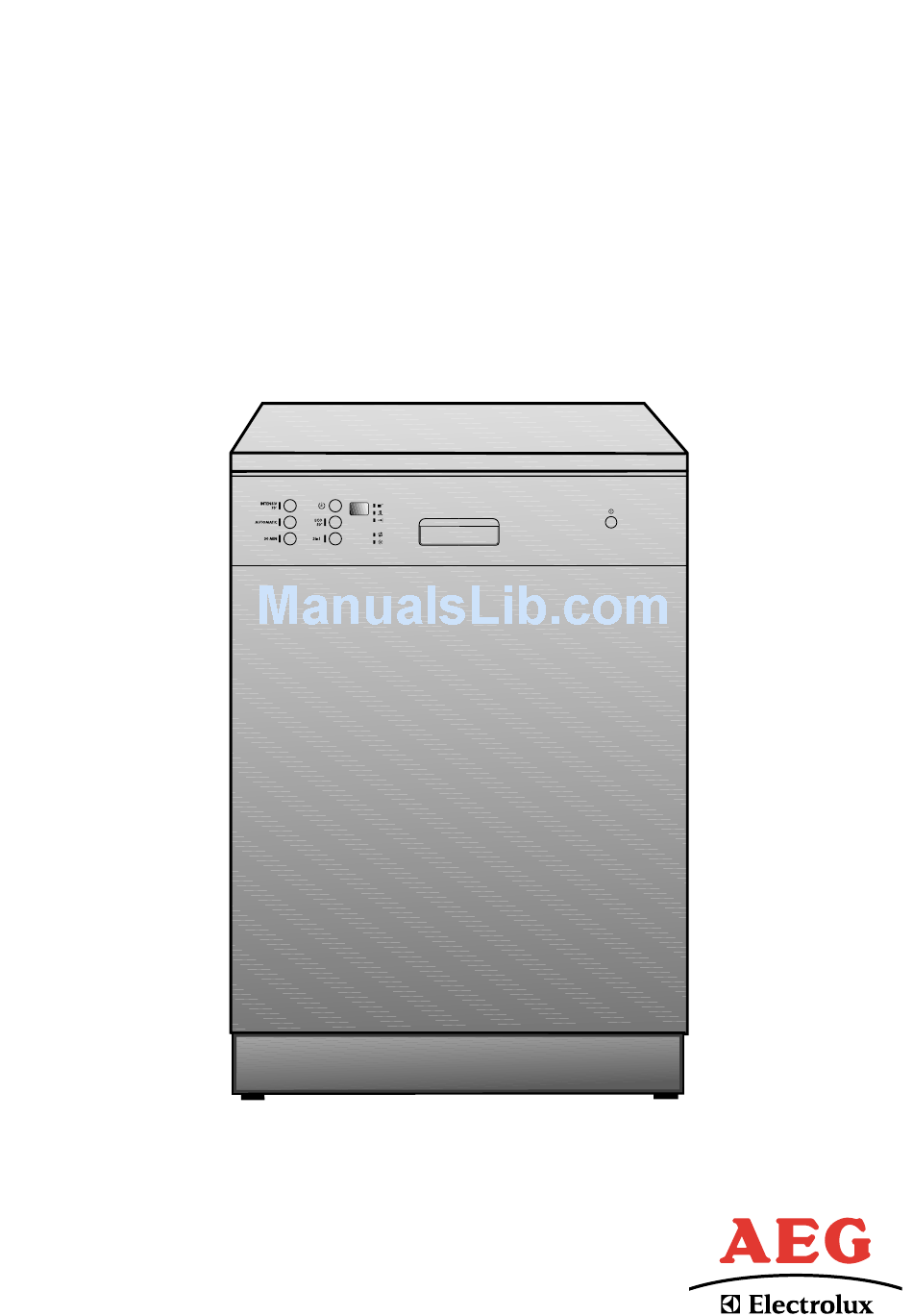

Page 1: Instruction Book
FAVORIT AUTO Dishwasher Instruction book PERFEKT IN FORM UND FUNKTION... -
Page 2: Dear Customer
Attention! Notes that show how to avoid damage to the appliance. Useful tips and hints Environmental information Your dishwasher has the new washing system ”IMPULSE WASHING”. With this dishwashing system the motor speed and spray pressure are varied during the wash cycle to achieve better cleaning of the dishes. -
Page 3: Table Of Contents
Economical and ecological dishwashing Description of the appliance The control panel Prior to using for the first time The water softener Filling with dishwasher salt Rinse aid In daily use Loading cutlery and dishes The lower basket The cutlery basket... -
Page 4: Operating Instructions
Care must be taken to ensure that the appliance does not stand on the electrical supply cable. The sides of the dishwasher must never be drilled to prevent damage to hydraulic components. Child safety This appliance is designed to be operated by adults. - Page 5 Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
-
Page 6: Disposal
Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling. As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed Warning! Children at play could lock themselves in your dishwasher or otherwise endanger their lives. -
Page 7: Description Of The Appliance
Description of the appliance IN144 1. Upper basket stop 2. Water hardness dial 3. Salt container 4. Detergent dispenser 5. Control panel 6. Rating plate Operating instructions 7. Rinse aid dispenser 8. Filters 9. Lower spray arm 10. Upper spray arm 11. -
Page 8: The Control Panel
- the approximative remaining time of the running programme, - the end of the programme (a zero 0 will appear in the digital display), - the countdown of the delay start, - fault codes concerning malfunction of the dishwasher. Digital display Indicator lights Door handle... - Page 9 Indicator lights: have the following meanings: Wash: illuminates when the washing and rinsing phases are running. Dry: illuminates when the drying phase is running. End: illuminates when the washing programme has ended. As soon as you select a washing programme, the phase indicator lights for that programme will illuminate.
- Page 10 4. To change the setting, press function button 2 again, the digital display indicates the new setting. 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.
-
Page 11: Prior To Using For The First Time
"Different kinds of detergents". The water softener The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 12: Setting Manually
Operating instructions a) Setting manually 1. Open the dishwasher door. 2. Remove the lower basket from the dishwasher. 3. Turn the water hardness dial to position 1 or 2 (see table). 4. Replace the lower basket. The dishwasher is factory set at position 2. -
Page 13: Setting Electronically
10, by pressing function button 1 once, level 1 is selected. 5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode. -
Page 14: Filling With Dishwasher Salt
The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected. -
Page 15: Filling With Rinse Aid
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash. Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance. -
Page 16: Adjusting The Dose
Operating instructions Adjusting the dose According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage). The dose is factory set in position 4. Increase the dose if there are drops of water or lime spots on the dishes after washing. -
Page 17: In Daily Use
In daily use • Check if it’s necessary to refill with dishwasher salt or rinse aid. • Load cutlery and dishes into the dishwasher. • Fill with dishwasher detergent. • Select a wash programme suitable for the cutlery and dishes. - Page 18 Operating instructions For washing in the dishwasher the following cutlery/dishes are not suitable: •Cutlery with wooden, horn, china or mother-of-pearl handles •Plastic items that are not heat resistant •Older cutlery with glued parts that are not temperature resistant •Bonded cutlery items or dishes •Pewter or copper items...
-
Page 19: The Lower Basket
Operating instructions Open the door and slide out the baskets to load the dishes. The lower basket The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc. Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely. -
Page 20: The Cutlery Basket
Operating instructions The cutlery basket Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives. Removable knife basket Long and/or sharp items of cutlery such as carving knives must be placed horizontally in the removable knife basket, which is positioned... -
Page 21: The Upper Basket
Operating instructions The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the cup racks so that water can reach all surfaces. -
Page 22: Adjusting The Height Of The Upper Basket
Operating instructions Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. With upper basket raised With upper basket lowered To move to the higher position proceed as follows: 1. -
Page 23: Use Of Detergent
Use of detergent Only use detergents specifically designed for use in dishwashers. We recommend the use of Finish detergents. Using no more than the correct amount of detergent contributes to reducing pollution. Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging. Fill with detergent 1. -
Page 24: Different Kinds Of Detergent
Operating instructions Different kinds of detergent Detergent tablets Detergent tablets from different manufactures dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals. - Page 25 Use of "3 in 1" combi detergents These products are detergents with a combined cleaning, rinsing and salt function. 1. Check whether these detergents are suitable for your water hardness. Follow the manufacturers instructions. 2. Set the "3 in 1" function. 3.
-
Page 26: Washing Programmes
Operating instructions Washing programmes Type of Programme load Crockery, cutlery, INTENSIV 70° pots and pans Crockery and AUTOMATIC cutlery Crockery and 30 MIN cutlery Crockery and ECO 50° cutlery (1) Testing programme for EN 50242 (see "Hints for Test Centres). This programme, developed for the use of detergents with enzymes, allows you to achieve, with reduced consumption of energy the same cleaning results that would otherwise be obtained only with the 65°C programmes and conventional detergents. -
Page 27: Starting A Washing Programme
2. Turn on the water tap 3. Close the dishwasher door 4. Press the On/Off button The indicator lights of the programme selection buttons illuminate. 5. Setting and starting the programme To select a programme, press the button of the programme you wish to select (see “Washing programmes”... -
Page 28: To Interrupt Or Cancel A Washing Programme
Cancel a washing programme in progress To cancel a washing programme you have to reset the dishwasher; press simultaneously function buttons 2 and 3 for about 2 seconds, the indicator light of the button corresponding to the running programme starts flashing. -
Page 29: End Of The Washing Programme
7. To cancel a delay start To cancel a delay start in progress you have to reset the dishwasher; follow the same instructions given in "To cancel a washing programme in progress". Cancelling a delay start involves also the cancelling of the washing programme set. -
Page 30: Maintenance And Cleaning
Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash programme without dishes using detergent. - Page 31 During this process ensure that the flat filter does not protrude above the base of the washing compartment. Attention! Under no circumstances may the dishwasher be used without filters. Incorrect repositioning and fitting of the filters will produce poor washing results.
-
Page 32: Frost Precautions
Operating instructions Prolonged periods of non-operation If you are not using the machine for any period of time you are advised to: 1. Unplug the appliance and then turn off the water. 2. Leave the door ajar to prevent the formation of any unpleasant smells. -
Page 33: Something Not Working
...a flashing fault code appears The dishwasher will not start or stops during operation. The intervention of an alarm is indicated by: - the continuous flashing of the indicator light of the running programme, - a fault code (as described in the chart) is visible in the digital display. -
Page 34: There Are Problems When Operating The Dishwasher
If the fault code reappears contact your local Service Force Centre. For other combinations of fault codes not described in the above chart will appear, please contact your local Service Force Centre..there are problems when operating the dishwasher Fault The programme does not start... -
Page 35: The Wash Results Are Not Satisfactory
...the wash results are not satisfactory The dishes are not clean The wrong washing programme has been selected. The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded. The spray arms do not rotate freely due to wrong arrangement of the load. -
Page 36: Service
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls. For Customer Service in The Republic of Ireland please contact us at the address below: Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: + 353 (0)1 4090751 Email: service.eid@electrolux.ie... -
Page 37: Customer Care Department
Service Customer Care Department For general enquiries concerning your AEG-Electrolux appliance or for further information on AEG-Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at: www.AEG.co.uk Customer Care Department... -
Page 38: Guarantee Conditions
Guarantee Conditions Standard Guarantee Conditions We, AEG-Electrolux, undertake that if within 12 months of the date of purchase this AEG-Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our... -
Page 39: European Guarantee
European Guarantee If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications: The guarantee starts from the date you first purchased your product. The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products. -
Page 40: Technical Specifications
Height with worktop Height without worktop Max depth Max depth with open door Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher’s door. Minimum Maximum 60 cm 85 cm 82 cm 61 cm 118.5 cm... -
Page 41: Installation Instructions
Be sure that once the appliance has been installed, it is easily accessible for the service engineer in the event that a repair is required. If the dishwasher is later used as a free-standing appliance, the original worktop must be re-mounted. The plinth on free-standing appliances is not adjustable. -
Page 42: Water Supply Connections
Installation instructions Water supply connections This dishwasher may be fed with either hot (max. 60°) or cold water. Nevertheless we advise you a cold water supply. A hot water supply is not always efficient with very soiled crockery as it shortens the washing programmes a lot. -
Page 43: Water Inlet Hose With Safety Valve
Water inlet hose with safety valve After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water inlet hose starts to leak during this operation, the safety valve cuts off the running water. -
Page 44: Water Outlet Hose Connection
(minimum) and 100 cm (maximum) from the bottom of the dishwasher. The drain hose can face either to the right or left of the dishwasher Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water. -
Page 45: Electrical Connection
Electrical connection WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any responsibility should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted. Important The wires on the mains lead are coloured in accordance with the following code:... - Page 46 A replacement cover/carrier must be obtained from your local Service Force Centre. To isolate the dishwasher from mains, remove the mains plug. Important! The plug must still be accessible after the appliance has been installed.
-
Page 47: Hints For Test Centres
Hints for test centres Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing programmes" chart). Testing in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes"... - Page 48 117 994 04/0 06/06 Subject to change without notice...
