Removing Cover of RAID Tower
XIII
Loosen the 3 screws at the back of the tower for
each side panel using a Philips screwdriver. Push
each side panel toward the rear of the tower to
disengage and remove.
Array 1
Array 3

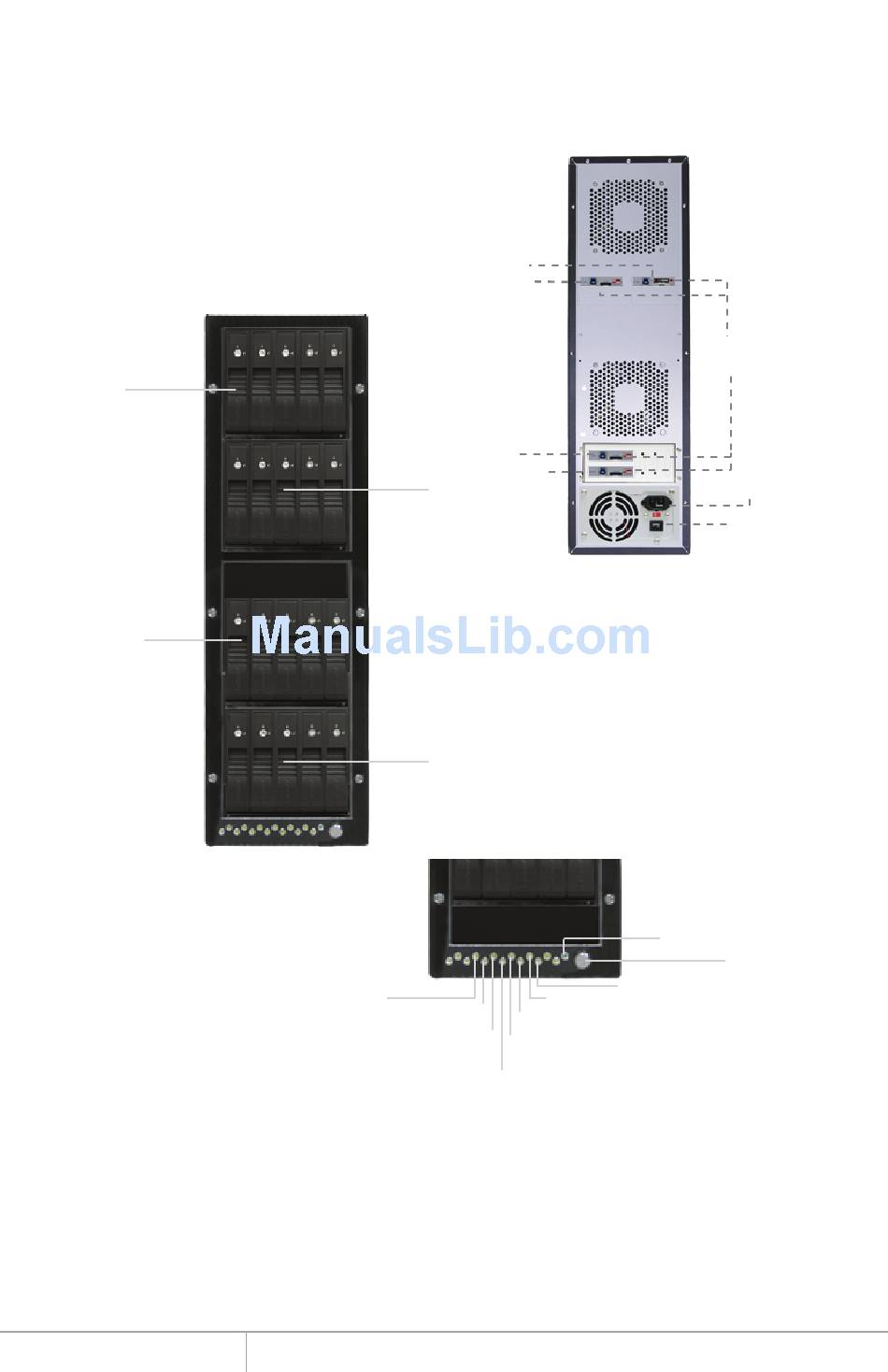

Power LED: lit when RAID Tower is on.
Host LED: lit when array group is connected, blinks
during array activity.
Error LED: lit when array group has a problem, blinks
if a redundant array is rebuilding.
www.addonics.com
Array 2
Array 4
Array 1 Host
Array 1 Error
Array 2 Host
Array 2 Error
Technical Support (M-F 8:30am - 6:00pm PST)
Back
Array 2
Array 1
Array 3
Array 4
Array 4 Error
Array 4 Host
Array 3 Error
Array 3 Host
Phone: 408-453-6212
Port
Multipliers
Powe r
Conne ctor
Power
Switch
Power LED
Power Switch
Email: www.addonics.com/support/query/
