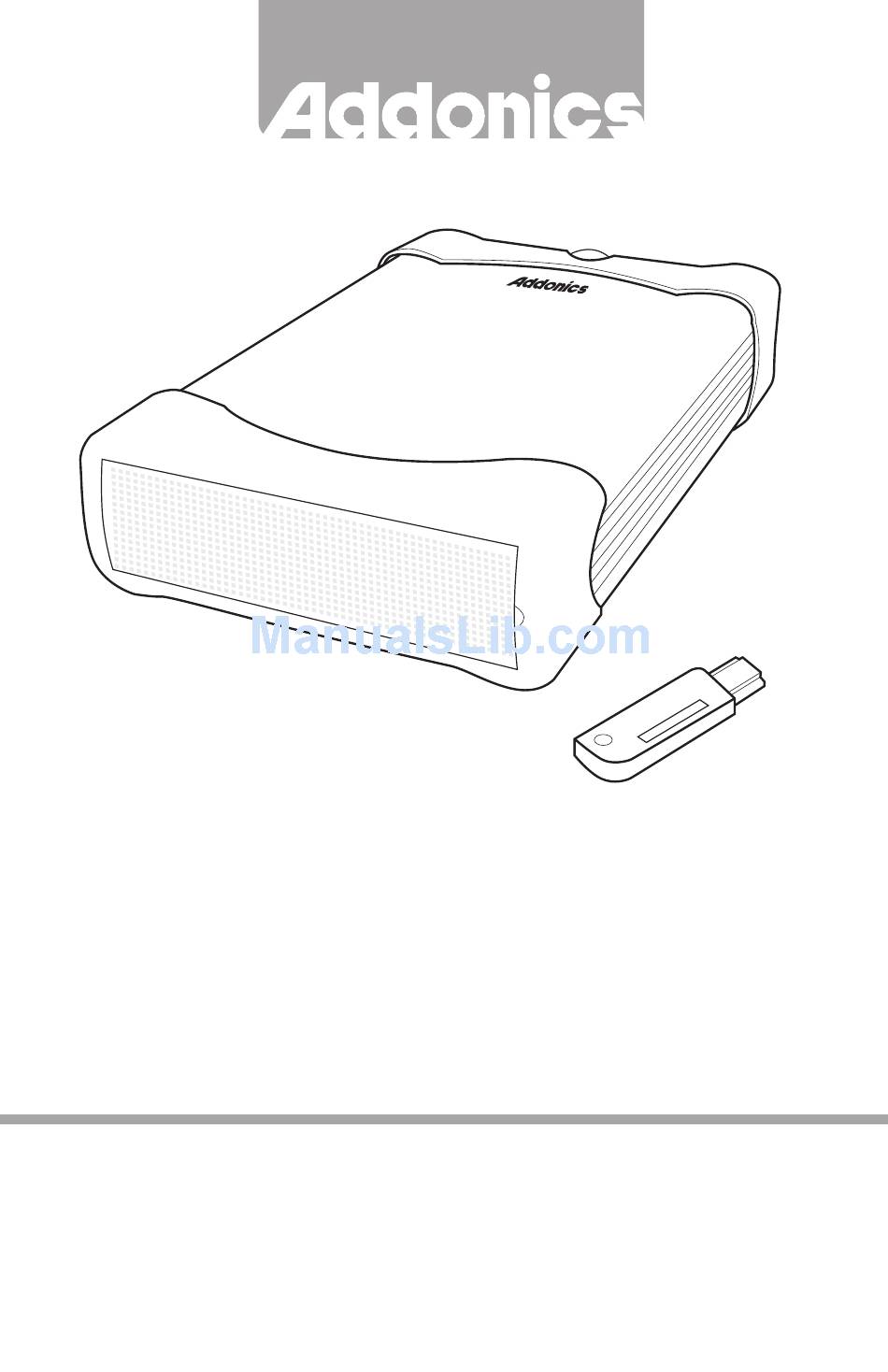

T E C H N O L O G I E S User Guide Cipher Z-Drive Enclosure (ZESAES256 / ZSAES256EU) www.addonics.com v3.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at: Hours: 8:30 am - 6:00 pm PST Phone: 408-453-6212 Email: http://www.addonics.com/support/query/...
Front Removable Cover Power and Drive Activity LED Removing the front panel: You can remove the front panel of the enclosure to access the drive drawer of the SATA drive. Secure Drive Hard drive installation: Here 1. Loosen the two screws from the rear panel.
Page 3
Back Switch CipherChain CipherChain Cipher eSATA Power Connector (to host) RESET eSATA Port CipherChain Power LED Cipher HDD LED eSATA (to host) Cipher Keyhole RESET Reset Switch How to operate the Cipher Z-Drive Enclosure: Note: Hot swapping refers to the ability to plug and unplug the component without rebooting.
Page 4
Reset switch Under certain applications, the RESET button enables the connecting and disconnecting of the Cipher Z-Drive Enclosure without restarting the system. Following are examples of such applications: a. When the cipher key is removed from the Z-Drive Enclosure, pressing the reset switch will clear the key code and remove the drive icon.
