Addonics Technologies ZSAUSCSF User Manual

Addonics
T E C H N O L O G I E S

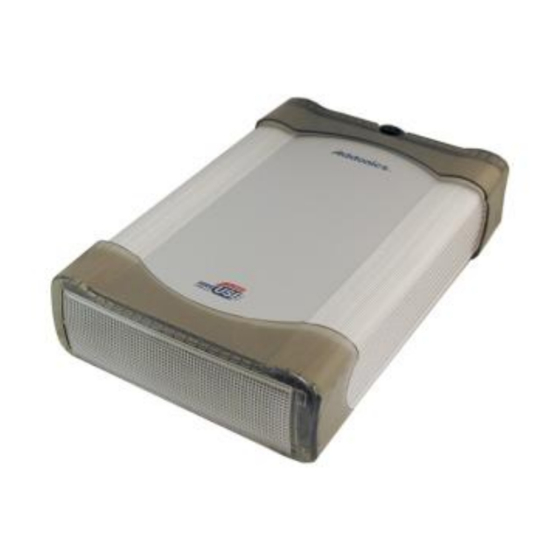

Zebra USIB SATA Drive Enclosure
ZSAUSCSU & ZSAUSCSF
User's Guide
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a class B digital
device pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy. If not installed and
used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on and off, the user
is encouraged to try and correct the interference by one or more of the following
suggestions.
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to a different power outlet other than the one where receiver is
connected
Consult a certified television or radio technician
Enclosure Overview
Screw 1
Fan
Removing the front panel
You can remove the front panel of the enclosure
to access the drive drawer of the optical drive.
Step 1
Loosen the two screws from the rear panel. Pull out the interior tray from the
enclosure.
Step 2
Connect the 15-pin SATA power cable to the power connector of the hard drive.
Also connect the 7-pin SATA data cable to SATA port of the hard drive.
15-pin SATA
power cable
7-pin SATA
data cable
Switch
USIB Port Power
Connector
Screw 2
